Siemens 6ES5454-4UA13 Replacement for SIMATIC S5: Smooth Migration & Upgrade

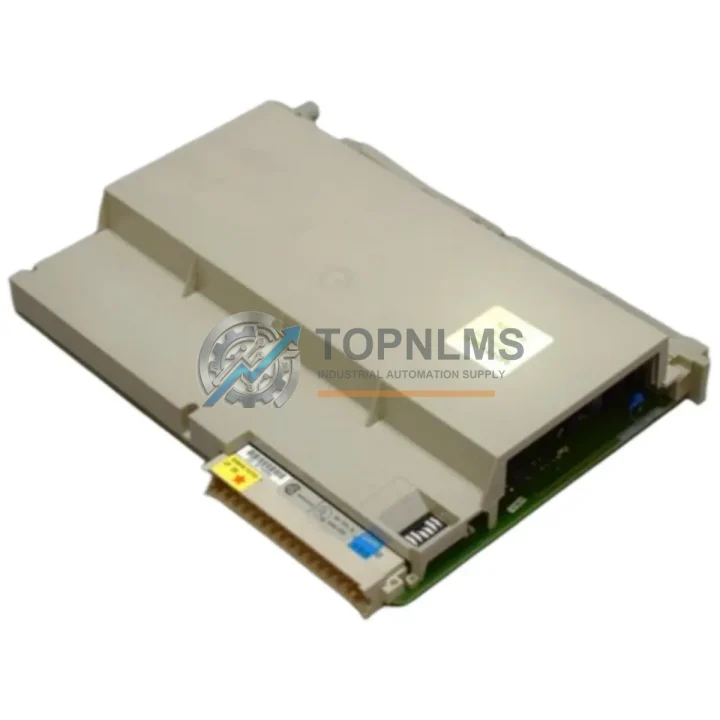

The Siemens 6ES5454-4UA13 is a 32-channel, 24 VDC transistor digital output module engineered for the SIMATIC S5 programmable logic controller platform. As the S5 series has reached end-of-life status, industrial facilities operating legacy automation systems — including S5-115U, S5-135U, and S5-155U controllers — now face the critical challenge of sourcing reliable replacement units or executing a structured migration to a modern control architecture. TOPNLMS stocks verified 6ES5454-4UA13 modules and provides full technical support for both direct replacement and phased system upgrade scenarios, helping you minimize unplanned downtime and protect production continuity.

Whether your facility is replacing a failed output module on an existing S5 rack or executing a phased migration toward the SIMATIC S7-300 or S7-400 platform, the 6ES5454-4UA13 serves as a critical bridge component. Its 32 transistor outputs, rated at 24 VDC and up to 0.5 A per channel, are fully compatible with the standard S5 signal bus and can be installed directly into the existing S5-115U or S5-135U central rack without any mechanical modification. The module’s compact form factor and standard S5 backplane connector ensure that field wiring, terminal blocks, and cable harnesses connected to the original output module can be reused without rewiring — a significant advantage when minimizing retrofit labor costs and reducing the risk of wiring errors during changeover.

For facilities running STEP 5 programs on legacy S5 CPUs such as the CPU 948 or CPU 928B, the 6ES5454-4UA13 is recognized natively by the existing software configuration. No program modifications are required for a direct module swap. The output addresses assigned in the STEP 5 hardware configuration remain valid, and the module responds to the same output byte assignments as the original unit. This plug-and-play compatibility is essential for facilities that cannot afford extended commissioning windows or do not have access to the original STEP 5 project files for reprogramming.

In migration scenarios where the end goal is a transition to the S7 platform, the 6ES5454-4UA13 is commonly used as a temporary stabilization measure while new S7-300 or S7-400 hardware — including the CPU 315-2 DP or CPU 414-3 PN/DP — is being configured and tested in parallel. During this transition period, the existing S5 I/O infrastructure, including digital input modules such as the 6ES5421-8MA11, analog input modules like the 6ES5464-8ME11, and communication processors such as the CP 5431 FMS/DP, continues to operate normally. This phased approach allows engineering teams to validate new control logic in TIA Portal or STEP 7 without interrupting live production.

Power supply compatibility is a key consideration in S5 module replacement. The 6ES5454-4UA13 draws its logic supply from the S5 backplane bus, fed by the central power supply unit — typically a PS 951 or PS 955 unit mounted in the same rack. No additional external power connections are required for the module itself, though the 24 VDC load supply for the output channels must be provided externally via the front connector. This wiring arrangement is identical to the original module, so existing load power distribution within the control cabinet does not need to be modified.

Communication protocol compatibility is fully maintained in a direct replacement scenario. The 6ES5454-4UA13 communicates with the S5 CPU via the internal S5 bus, which does not use an external fieldbus protocol. For systems that also incorporate PROFIBUS-DP communication — where the S5 CPU communicates with remote I/O stations or drives via a CP 5431 or IM 308-C interface module — the replacement of a local digital output module has no impact on the PROFIBUS network configuration or device addressing.

Physical installation space within the control cabinet is a frequent concern during module replacement. The 6ES5454-4UA13 occupies a single slot in the S5 rack and uses the standard S5 front connector (40-pin). Module dimensions and mounting depth are identical to the original, ensuring that existing cable management, duct routing, and door clearance within the control cabinet are unaffected. For facilities operating multiple S5 racks — including expansion racks connected via IM 360/361 interface modules — the replacement module can be installed in any compatible slot without reconfiguring rack addressing.

TOPNLMS provides each 6ES5454-4UA13 unit with a pre-shipment functional test, verifying output channel integrity, backplane communication, and LED status indication before dispatch. Units are shipped in anti-static packaging with full documentation. Standard lead time is 3–7 business days for in-stock units, with express shipping options available for urgent breakdown situations. All units are covered by a 12-month warranty from the date of shipment, with direct technical support available for installation and commissioning queries.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S5 system migration or module replacement rarely involves a single component in isolation. When replacing the 6ES5454-4UA13, engineers typically review the condition of adjacent modules in the same rack. Digital input modules such as the 6ES5421-8MA11 (32-channel 24 VDC digital input) are often replaced simultaneously to standardize the I/O layer and reduce future maintenance risk. Analog input modules like the 6ES5464-8ME11 may also be evaluated if the process involves mixed signal types requiring calibration verification after the changeover.

For systems where the S5 CPU itself — such as the CPU 948R or CPU 928B — is approaching end-of-life, the 6ES5454-4UA13 replacement can be paired with a structured migration plan toward the S7-400 platform, using the IM 463-2 interface module to bridge existing S5 I/O racks to the new S7 backplane during the transition period. This approach preserves the existing field wiring investment while enabling the new S7 CPU to take over control logic execution.

Power supply units such as the PS 951 10A should be inspected and replaced if they show signs of capacitor aging, as a failing power supply is a common root cause of intermittent output module faults in aging S5 systems. Replacing the power supply in the same maintenance window as the output module eliminates a frequent source of nuisance faults and reduces the risk of a secondary failure shortly after the primary repair.

Communication infrastructure upgrades are frequently executed in parallel. If the existing system uses a CP 5431 FMS/DP communication processor for PROFIBUS connectivity, this component may be retained during the initial replacement phase but should be included in the long-term migration roadmap. For facilities transitioning to Ethernet-based communication, the addition of a CP 343-1 or CP 443-1 module to the new S7 platform provides the PROFINET and Industrial Ethernet connectivity required by modern SCADA and MES systems.

Programming and commissioning tools are essential for a controlled replacement. A PC Adapter USB A2 or MPI/PROFIBUS adapter is required to connect a programming laptop to the S5 CPU for online diagnostics and program verification after module replacement. Ensuring that the STEP 5 software license and project backup are available before beginning the replacement procedure is a critical pre-commissioning step — particularly in emergency breakdown situations where time pressure can lead to oversights. For facilities planning a full S7 migration, a SIMATIC Field PG M6 or equivalent programming device with TIA Portal pre-installed significantly accelerates the commissioning phase.

Retrofit Guidance FAQ

Q: Can I install the 6ES5454-4UA13 without modifying my STEP 5 program?
A: Yes. The module is a direct hardware replacement and is recognized by the existing STEP 5 hardware configuration without any software changes, provided the slot address and output byte assignments remain the same as the original module.

Q: Do I need to rewire the field cables when replacing the module?
A: No. The existing 40-pin S5 front connector and all field wiring can be reused. Simply remove the front connector from the failed module and plug it into the replacement unit. No terminal rewiring is required.

Q: Is the module compatible with both S5-115U and S5-135U racks?
A: Yes. The 6ES5454-4UA13 is compatible with all standard S5 central and expansion racks that support the S5 internal bus, including S5-115U, S5-135U, and S5-155U configurations.

Q: What is the load power supply requirement for the output channels?
A: The 24 VDC load supply for the output channels must be provided externally via the front connector. The module logic supply is drawn from the S5 backplane bus and does not require a separate external connection.

Q: Can this module be used as a temporary replacement during an S7 migration?
A: Yes. The 6ES5454-4UA13 is fully functional in the existing S5 rack and serves as a stable interim solution while the S7 migration is planned and executed in parallel, without any impact on the ongoing production process.

Q: What communication protocols does this module support?
A: The module communicates via the S5 internal backplane bus. It does not use an external fieldbus protocol. PROFIBUS or MPI communication is handled by dedicated communication processors — such as the CP 5431 — in the same rack, not by the I/O module itself.

Q: How long does delivery take, and what shipping options are available?
A: Standard lead time is 3–7 business days for in-stock units. Express shipping is available for urgent breakdown situations. All units ship from our Xiamen warehouse with full commercial documentation.

Warranty Assurance

Every 6ES5454-4UA13 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional test covering output channel integrity, backplane bus communication, and LED status indication. Units that do not pass the pre-shipment test are not dispatched.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for critical breakdown situations. Our technical support team is available to assist with installation, commissioning, and fault diagnosis queries throughout the warranty period.

For B2B procurement teams, TOPNLMS can provide test reports, packing lists, and commercial invoices to support incoming inspection and ERP receiving processes. Bulk orders and long-term supply agreements are available for facilities with ongoing S5 maintenance requirements. All pricing is available upon request via direct inquiry.
