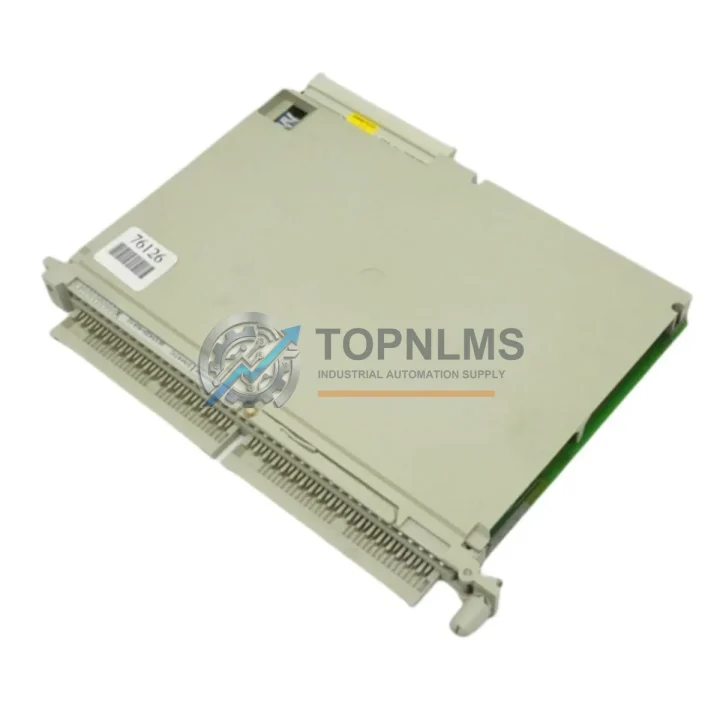

Siemens 6ES5420-4UA12 Original Industrial Spare SIMATIC S5 Compatible

Product Overview

Siemens 6ES5420-4UA12 Original Industrial Spare SIMATIC S5 Compatible: Ensuring System Stability in Legacy Automation Environments

The Siemens 6ES5420-4UA12 is an original digital input module designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed industrial automation architectures in global manufacturing, process control, and utility infrastructure. Despite the maturity of the S5 series, countless production lines, water treatment facilities, chemical plants, and power distribution systems continue to rely on this platform daily. For maintenance engineers and procurement specialists responsible for keeping these systems operational, sourcing a verified original 6ES5420-4UA12 is not merely a parts decision — it is a system stability decision.

This module provides 32 digital input channels operating at 24V DC, enabling the CPU to read field-level signals from sensors, limit switches, push buttons, and proximity detectors. Its robust design reflects Siemens’ engineering standards for industrial-grade reliability, with noise immunity and signal isolation characteristics suited to demanding factory floor environments. When this module fails or degrades, the consequences can range from erratic process behavior to complete line stoppage — making rapid, like-for-like replacement with a genuine original part the only acceptable maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your SIMATIC S5 Control System

Experienced maintenance teams know that a digital input module failure rarely occurs in isolation. The 6ES5420-4UA12 operates within a broader control cabinet ecosystem, and a proactive inspection of the surrounding components during any scheduled or unscheduled downtime is the most cost-effective way to prevent the next failure event.

When replacing or inspecting the 6ES5420-4UA12, begin with the S5 power supply module (such as the 6ES5955-3LC41 or 6ES5955-3LF41). An aging or under-spec power supply is one of the most common root causes of intermittent input module faults — voltage ripple and transient spikes degrade optocoupler performance over time. Verify output voltage stability under load before reinstalling the DI module.

Next, inspect the S5 CPU module (e.g., 6ES5948-3UA23 for S5-115U or 6ES5928-3UB21 for S5-135U). A CPU with degraded memory or battery backup issues can misinterpret valid input signals, leading to false fault diagnoses. Replacing the CPU battery (typically a 3.6V lithium cell) during the same maintenance window eliminates a common source of program loss and diagnostic confusion.

The digital output modules in the same rack — such as the 6ES5440-4UA13 or 6ES5451-4UA13 — should also be checked for contact wear, especially in high-cycle applications. Output modules driving solenoids, contactors, or motor starters experience significantly higher stress than input modules and often fail first in high-frequency switching environments.

Do not overlook the S5 interface modules and bus connectors. The backplane bus connectors on older S5 subracks are subject to oxidation and mechanical fatigue. A loose or corroded bus connection can cause the 6ES5420-4UA12 to appear faulty when the actual fault lies in the rack infrastructure. Clean and reseat all module connectors during the maintenance window.

For systems using analog input modules (such as the 6ES5464-4UA13) alongside digital inputs, verify signal cable shielding and grounding integrity. In mixed-signal control cabinets, inadequate shielding on analog signal cables can induce noise on adjacent digital input channels, causing spurious 1-signals that are difficult to trace without systematic inspection.

If your S5 system communicates with supervisory systems or SCADA via CP communication processors (e.g., 6GK1543-0AA01 or similar S5-compatible CP modules), verify that firmware versions and communication parameters remain consistent after any module swap. A replacement DI module does not require reconfiguration, but a simultaneous CP module replacement may require parameter re-download.

Finally, review your terminal blocks and field wiring connections at the front connector of the 6ES5420-4UA12. Loose field wiring terminations are a leading cause of intermittent input faults in aging installations. Use a calibrated torque screwdriver to verify all terminal screw torques, and replace any discolored or heat-damaged terminal blocks before returning the system to service.

A comprehensive spare parts inventory for an S5-based control system should include at minimum: one spare 6ES5420-4UA12 DI module, one spare power supply module, one spare CPU module with programmed EPROM or memory card, and a set of front connectors. This inventory strategy ensures that any single-point failure can be resolved within one shift, minimizing production impact.

Strategic Replacement Solutions: Extending SIMATIC S5 System Life

The SIMATIC S5 platform reached end-of-life status from Siemens, but the installed base remains enormous. Migration to S7-300, S7-400, or TIA Portal-based S7-1500 systems requires significant engineering effort, revalidation, and capital expenditure — investments that many facilities cannot justify for systems that are otherwise performing reliably. The strategic alternative is a disciplined original-spare replacement program using verified 6ES5420-4UA12 modules.

Unlike third-party or refurbished alternatives, an original 6ES5420-4UA12 maintains full electrical and firmware compatibility with the existing S5 backplane and CPU without any configuration changes. There is no risk of signal timing mismatches, bus protocol deviations, or undocumented behavioral differences. The module slots in, the system recognizes it immediately, and production resumes — this is the value proposition that justifies sourcing original spares even at a premium over aftermarket alternatives.

For facilities managing multiple S5 racks across different production lines, a centralized spare parts strategy — maintaining 2–3 units of the 6ES5420-4UA12 in a climate-controlled parts store — provides the fastest possible mean time to repair (MTTR) and eliminates the lead-time risk associated with emergency procurement. Each unit shipped from TOPNLMS is individually tested under simulated operating conditions before dispatch, with a 12-month warranty covering all electrical faults.

Support FAQ

Q1: Is the 6ES5420-4UA12 compatible with all SIMATIC S5 CPU models?
The 6ES5420-4UA12 is compatible with S5-115U, S5-135U, and S5-155U systems using standard S5 subracks (EU or ER series). It is not compatible with S5-90U/95U compact controllers or S5-100U systems, which use a different bus architecture. Always verify your rack type and CPU model before ordering.

Q2: How is the module tested before shipment?
Each 6ES5420-4UA12 unit undergoes functional testing on a live S5 test rack, verifying all 32 input channels for correct signal detection, optocoupler integrity, and bus communication. A test report is available upon request. Units that fail any channel test are not shipped.

Q3: What does the 12-month warranty cover?
The warranty covers all electrical and functional defects under normal operating conditions (24V DC supply, within specified temperature and humidity ranges). It does not cover physical damage from incorrect installation, overvoltage events, or environmental contamination. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can I use this module as a direct drop-in replacement without reprogramming the S5 CPU?
Yes. The 6ES5420-4UA12 is a hardware-identical replacement for any unit of the same part number. No CPU reprogramming, parameter download, or configuration change is required. Simply power down the rack, swap the module, reconnect the front connector, and restore power. The CPU will resume normal operation immediately.
