Siemens 6ES5420-3BA11 Original Industrial Spare S5 Compatible: Securing System Stability in Legacy Automation Environments

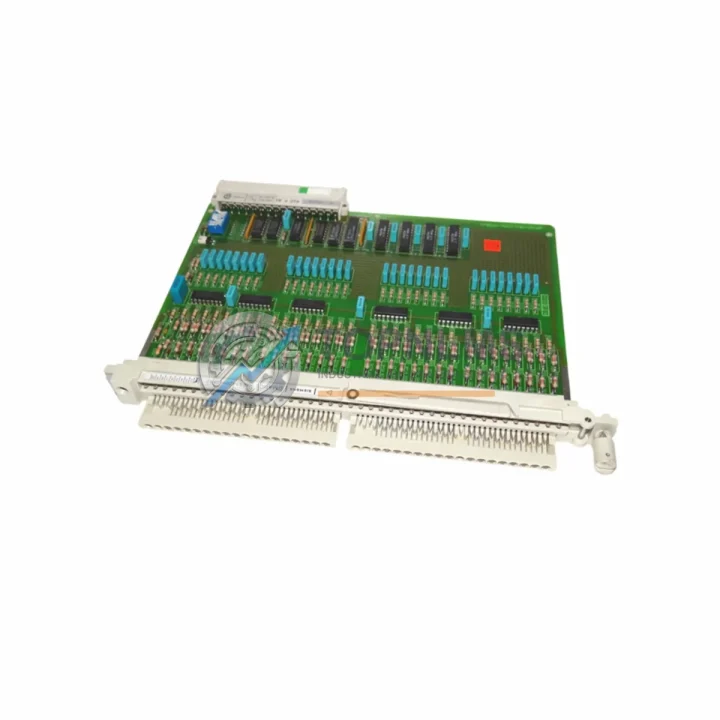

The Siemens 6ES5420-3BA11 is a 16-channel 24VDC digital input module designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed industrial automation architectures in global manufacturing, process control, and infrastructure facilities. Despite the SIMATIC S5 series reaching end-of-production status, tens of thousands of installations worldwide continue to rely on this platform for daily operations. For maintenance engineers and procurement teams responsible for keeping these systems running, sourcing a verified original spare like the 6ES5420-3BA11 is not merely a purchasing decision — it is a risk management strategy.

When a digital input module fails in a SIMATIC S5 rack, the consequences extend far beyond a single I/O channel. The entire CPU scan cycle may be disrupted, alarms may go undetected, and in worst-case scenarios, the production line halts entirely. Having a tested, ready-to-install 6ES5420-3BA11 on the shelf is the single most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your SIMATIC S5 System End-to-End

Experienced maintenance engineers know that a failing digital input module rarely fails in isolation. The 6ES5420-3BA11 sits within a broader electrical and control architecture, and a thorough preventive maintenance inspection should address the entire signal chain — from field sensors through to the CPU and power distribution.

When replacing or inspecting the 6ES5420-3BA11, it is best practice to simultaneously verify the condition of the 6ES5421-8MA11 digital output module installed in the same rack. Output modules in the same control loop share the same operational stress cycles, and a worn output module can generate feedback noise that accelerates input module degradation. Similarly, the 6ES5095-8MA01 S5 rack backplane should be inspected for oxidized bus connectors and cracked slot guides — a damaged backplane can cause intermittent module faults that are frequently misdiagnosed as module failure.

The 6ES5955-3LF41 power supply module is another critical component to assess during the same maintenance window. Voltage ripple or sag from an aging power supply is a leading cause of premature digital I/O module failure in SIMATIC S5 systems. Replacing the 6ES5420-3BA11 without verifying power supply output quality risks repeating the failure within months.

For facilities running mixed analog and digital I/O architectures, the 6ES5464-8MA11 analog input module and 6ES5470-8MA12 analog output module should be included in the inspection checklist. These modules share the same rack environment and are subject to the same thermal and electrical stress. Proactive replacement of aging analog I/O modules alongside digital modules reduces the number of separate maintenance interventions required over a 12-month period.

Communication integrity is equally important. If your S5 system uses PROFIBUS or point-to-point serial links, the 6ES5523-3UA11 CP 523 communications processor should be tested for stable data exchange. Communication module faults can mask themselves as I/O errors, leading to unnecessary module replacements. Verifying the CP module during a planned maintenance window eliminates this diagnostic ambiguity.

Finally, do not overlook the field wiring side. Terminal blocks, cable shields, and fuse modules connected to the 6ES5420-3BA11’s 40-pin front connector are frequent sources of intermittent input faults. Inspecting and, where necessary, replacing the 6ES5490-8MA11 front connector and associated terminal assemblies ensures that a newly installed input module is not immediately compromised by degraded field wiring infrastructure. For facilities with older cable runs, adding signal isolators on high-noise circuits connected to the digital input channels is a cost-effective way to extend module service life.

Strategic Replacement Solutions: Extending SIMATIC S5 System Life

The SIMATIC S5 platform presents a well-documented challenge for maintenance and procurement teams: Siemens officially discontinued production of S5 hardware, yet the installed base remains enormous. The strategic response adopted by leading industrial facilities is not immediate migration to S7 or S7-1500, but rather a structured spare parts inventory program that extends S5 system life by 5–10 years while migration projects are planned and budgeted.

The 6ES5420-3BA11 is a direct plug-in replacement for earlier 6ES5420-series input modules installed in the same rack slot. No software reconfiguration or CPU parameter change is required for a like-for-like swap, which means replacement can be completed during a short planned shutdown window — or in many cases, during a hot-swap procedure if the rack design permits. This minimizes production impact and eliminates the need for specialist PLC programming resources to be on-site during the replacement.

For facilities managing multiple S5 racks across a plant, a recommended procurement strategy is to maintain a minimum of two 6ES5420-3BA11 units per production line as rotating spares. This buffer absorbs unplanned failures without triggering emergency procurement, which typically carries significant cost premiums and extended lead times. Pairing this with a documented module inspection schedule — quarterly visual inspection, annual functional test — provides a defensible maintenance record for ISO and industry compliance audits.

When the eventual migration to a modern PLC platform does occur, the 6ES5420-3BA11 units remaining in the spare parts inventory retain residual value and can be liquidated or transferred to other facilities still operating S5 systems, ensuring that the procurement investment is not stranded.
