Siemens 6ES5304-3UB11 IM304 Replacement for SIMATIC S5

Product Overview

Siemens 6ES5304-3UB11 IM304 Replacement for SIMATIC S5: Seamless Transition & Compatible Upgrade

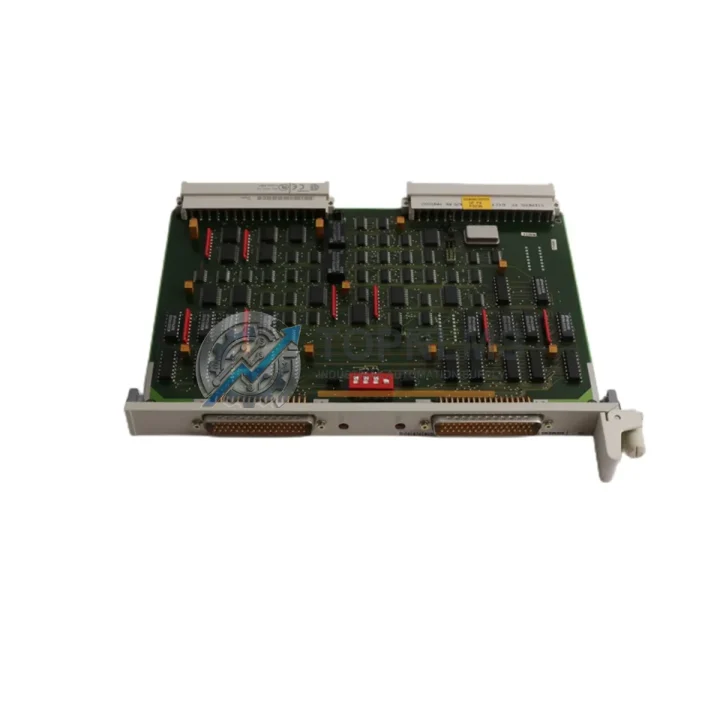

The Siemens 6ES5304-3UB11 is the IM304 Interface Module designed for the SIMATIC S5 programmable logic controller platform — one of Siemens’ most widely deployed industrial automation architectures across manufacturing, process control, and utility sectors. As the S5 series has reached end-of-life and spare parts become increasingly scarce, facilities running legacy S5-115U, S5-135U, and S5-155U systems face mounting pressure to source reliable replacement modules before unplanned downtime forces costly emergency shutdowns.

TOPNLMS maintains verified stock of the 6ES5304-3UB11 to support both direct drop-in replacement and structured migration projects. Whether your maintenance team needs a like-for-like swap to restore a failed rack slot or your engineering team is planning a phased upgrade from an aging S5 backbone to a modern control architecture, this module serves as the critical bridge component that keeps your system operational during the transition window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S5 system migration or emergency replacement rarely involves a single module in isolation. The 6ES5304-3UB11 IM304 operates as part of a broader rack and communication architecture, and sourcing the surrounding components is equally critical to minimizing downtime and ensuring system integrity.

For facilities running the S5-135U or S5-155U central controllers, the IM304 works in tandem with the IM314 receive-side interface module installed in the expansion rack — both must be present and matched for the inter-rack communication link to function. If your expansion rack is also showing age-related failures, the EU185 or EU186 expansion unit chassis may need to be sourced alongside the interface module.

Power integrity is a common failure point in aging S5 installations. The 6ES5955-3LC41 and 6ES5955-3LF41 power supply modules are frequently replaced during the same maintenance window as interface module swaps, as degraded capacitors in the PSU can cause intermittent IM304 communication faults that are misdiagnosed as interface module failures. Verifying PSU output voltage stability before condemning the IM304 is a recommended diagnostic step.

On the I/O side, digital input modules such as the 6ES5421-8MA11 and digital output modules like the 6ES5441-8MA11 are commonly replaced during S5 retrofit projects, particularly when wiring termination blocks show corrosion or when the I/O modules themselves have accumulated fault hours beyond their rated service life. These modules share the same S5 backplane bus and slot form factor, making them straightforward to source and swap without structural changes to the control cabinet.

For sites planning a longer-term migration from S5 to SIMATIC S7-300 or S7-400, Siemens’ IM360/IM361 interface module pair for S7-400 expansion racks represents the architectural equivalent in the newer platform. However, this migration path requires STEP 7 reprogramming and is typically executed in planned shutdown windows rather than emergency scenarios. In the interim, maintaining a verified spare of the 6ES5304-3UB11 on the shelf is the most operationally sound strategy for S5-dependent facilities.

Communication-intensive S5 installations that use SINEC H1 or PROFIBUS-DP network cards — such as the 6ES5521-8MA21 CP521 communications processor — should also be evaluated during any interface module replacement, as network card firmware and the S5 CPU’s communication configuration may interact with expansion rack availability during system restart sequences.

Retrofit Guidance FAQ

Q: Do I need to reprogram my STEP 5 application when replacing the 6ES5304-3UB11?
A: No. A like-for-like replacement of the IM304 module does not require any changes to your existing STEP 5 program. The module is transparent to the CPU and I/O addressing scheme. Simply power down the rack, remove the failed module, insert the replacement, and restore power. The system will resume normal operation without any software intervention.

Q: Is the 6ES5304-3UB11 compatible with all S5 expansion racks?
A: The IM304 is designed for use with EU183, EU185, and EU186 expansion racks. It must be paired with an IM314 receive module in the expansion rack. Verify your existing IM314 is functional before concluding the IM304 is the sole fault source.

Q: What are the wiring implications of this replacement?
A: The 6ES5304-3UB11 connects via the S5 backplane bus — there is no field wiring directly to the interface module itself. The inter-rack cable connecting the central rack to the expansion rack (typically a shielded parallel cable) should be inspected for damage or connector corrosion as part of the replacement procedure.

Q: Can this module be used in an S5-115U system?
A: The IM304 is primarily associated with S5-135U and S5-155U architectures. S5-115U systems use a different expansion interface scheme. Please confirm your CPU model before ordering to ensure compatibility.

Q: How long does shipping take, and is expedited delivery available?
A: Standard international shipping from our Xiamen warehouse typically takes 5–10 business days depending on destination. Expedited DHL/FedEx options are available for emergency replacement scenarios. Contact us at [email protected] or +86 18359293191 to arrange priority dispatch.

Q: What if the replacement module also fails after installation?
A: If the replacement 6ES5304-3UB11 fails within the 12-month warranty period, TOPNLMS will dispatch a verified replacement unit at no additional cost. We recommend also investigating root-cause factors such as PSU voltage stability and rack grounding before installing any replacement module.

Warranty Assurance

Every 6ES5304-3UB11 IM304 Interface Module shipped by TOPNLMS is covered by a 12-month functional warranty from the date of delivery. Prior to dispatch, each unit undergoes bench-level verification including visual inspection, connector integrity check, and functional power-on testing where applicable.

In the event of a warranty claim, our after-sales team responds within 1 business day. Confirmed defective units are replaced and dispatched within 5 business days of fault verification. We do not require the customer to return the defective unit before dispatching the replacement in most cases, minimizing the time your system remains offline.

Our procurement guarantee covers: verified original Siemens hardware, accurate SKU matching, pre-shipment inspection documentation available on request, and full traceability of module origin. For B2B customers requiring batch procurement or standing inventory agreements for S5 spare parts programs, please contact our sales team directly.

TOPNLMS ships globally from Xiamen, China, with export documentation, commercial invoices, and packing lists provided as standard. Customs HS code documentation is available upon request to facilitate smooth import clearance in your jurisdiction.
