Siemens 6EP1334-3BA00 SITOP PSU100S 24V 10A Original Industrial Spare

Product Overview

Siemens 6EP1334-3BA00 SITOP PSU100S 24V 10A: System Stability & Industrial Spare Value

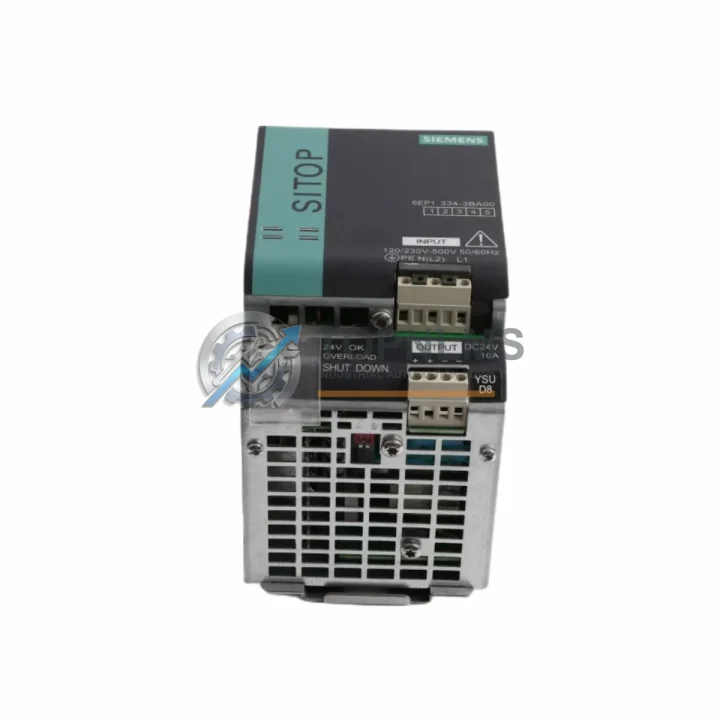

The Siemens 6EP1334-3BA00 is a proven, original-grade SITOP PSU100S series stabilized power supply delivering a regulated 24 VDC output at 10 A continuous load. Designed for demanding industrial environments, this unit is a cornerstone component in control cabinet power distribution across manufacturing, process automation, and infrastructure applications. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, the 6EP1334-3BA00 represents one of the highest-value investments in your maintenance program.

Sourced directly from verified supply channels and tested prior to dispatch, every unit shipped by TOPNLMS undergoes functional verification and is backed by a 12-month warranty. With DIN rail mounting and wide-range AC input, this power supply integrates seamlessly into existing Siemens SIMATIC S7-300, S7-400, and equivalent third-party control architectures without modification.

Critical Technical Specs

Preventive Maintenance Strategy

In industrial control cabinet maintenance, the power supply is the single most critical component — it feeds every downstream device in the 24 VDC loop. When a 6EP1334-3BA00 shows signs of output ripple, thermal stress, or age-related derating, the impact cascades immediately to connected PLC CPU modules such as the Siemens 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP) and I/O expansion racks. A planned replacement of the power supply should always be paired with an inspection of the 24 VDC bus wiring, terminal blocks, and any inline fuse modules (e.g., Siemens 3NW series fuse holders) protecting individual field circuits.

During a scheduled outage, maintenance teams should simultaneously verify the condition of the digital input modules (e.g., 6ES7321-1BL00-0AA0 SM321 32DI) and digital output modules (e.g., 6ES7322-1BL00-0AA0 SM322 32DO) that rely on stable 24 VDC supply. Voltage fluctuations from a degraded PSU are a leading cause of intermittent I/O faults that are difficult to diagnose under load. Replacing the power supply proactively eliminates this variable entirely.

For systems using PROFIBUS or PROFINET communication, the network integrity of CP communication processors (e.g., 6GK7343-1EX30-0XE0 CP343-1) and IM interface modules (e.g., 6ES7153-2BA02-0XB0 IM153-2) depends on a clean, stable DC bus. A failing PSU introduces ground noise that can corrupt cyclic data exchange and trigger watchdog faults in distributed I/O stations. Stocking a replacement 6EP1334-3BA00 alongside a spare CP module and IM module is a recognized best practice in multi-rack S7-300 installations.

Control cabinets housing SITOP PSU100S units should also include periodic inspection of the 24 VDC relay output modules (e.g., 6ES7322-1HH01-0AA0 SM322 relay type) and any signal isolators or signal conditioners in the analog loop. Analog input modules such as the 6ES7331-7KF02-0AB0 SM331 8AI are particularly sensitive to supply noise, and a clean PSU is the first line of defense for measurement accuracy in process control applications.

For facilities running legacy SIMATIC S5 or mixed-generation control systems, the 6EP1334-3BA00 serves as a direct-fit replacement for older SITOP Power 10 A units, allowing system life extension without rewiring. Pairing this PSU with a modern HMI panel (e.g., Siemens 6AV2123-2GB03-0AX0 KTP700 Basic) during a control system refresh ensures the operator interface and the PLC share a common, well-regulated power source — a key factor in reducing nuisance HMI reboot events.

Strategic Replacement Solutions

The 6EP1334-3BA00 is the designated successor to earlier SITOP Power 24V/10A variants, including the 6EP1334-2BA20 and 6EP1334-1LB00. All three share identical output ratings and DIN rail footprint, making the 3BA00 a drop-in replacement with no panel modification required. This backward compatibility is a significant operational advantage: maintenance engineers can standardize on a single PSU part number across multiple machine generations, reducing spare parts SKU count and simplifying procurement.

For high-availability applications where downtime cost is measured in thousands of dollars per hour, TOPNLMS recommends holding a minimum of one 6EP1334-3BA00 per control cabinet in on-site inventory. The unit’s compact 55 mm width allows it to be stored in standard spare parts trays alongside other DIN rail components. Combined with the 12-month warranty coverage provided on every TOPNLMS-shipped unit, this stocking strategy delivers both financial and operational risk mitigation.

When integrating the 6EP1334-3BA00 into a redundant power architecture, it can be paralleled with a SITOP UPS module (e.g., 6EP1931-2EC42 SITOP UPS1600) to provide buffered DC output during brief AC mains interruptions — a configuration widely used in automotive body shop welding lines and pharmaceutical batch processing systems where even a 20 ms power dip can trigger a controlled shutdown sequence.
