Siemens 6DS1122-8AA Ruggedized Monitor Coupler Module

Product Overview

Siemens 6DS1122-8AA Ruggedized Monitor Coupler Module: Industrial Resilience for Harsh Environments

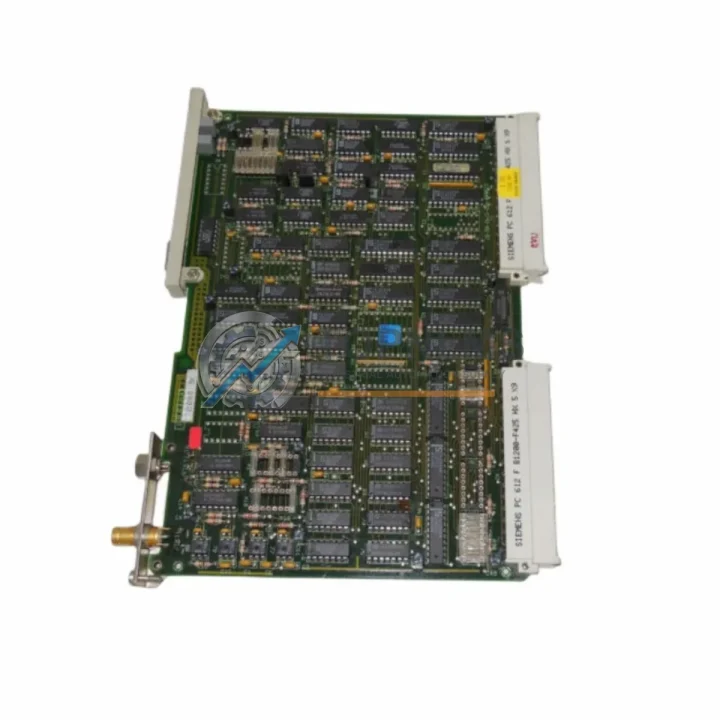

The Siemens 6DS1122-8AA is a Monitor Coupler Module engineered as part of the TELEPERM M Distributed Control System (DCS) platform — one of Siemens’ most enduring and field-proven process automation architectures. Designed to operate reliably under the demanding conditions found in continuous production lines, heavy industry, and safety-critical infrastructure, the 6DS1122-8AA delivers stable signal coupling and monitoring functions even in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI).

Unlike general-purpose electronics, the TELEPERM M series was purpose-built for industrial ruggedness. The 6DS1122-8AA features a robust housing with conformal-coated PCBs that resist moisture ingress and corrosive atmospheres, making it a dependable choice for facilities where downtime carries significant operational and safety consequences. Its monitor coupler function ensures that process signals are accurately routed and supervised between DCS subsystems, maintaining loop integrity across the entire control architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6DS1122-8AA does not operate in isolation — it is an integral node within a broader TELEPERM M control architecture. In a typical process plant control cabinet, it works in concert with the Siemens 6DS1200-8AA central processing unit and 6DS1300-8AA I/O modules to form a complete DCS loop. Signal integrity from field instruments is maintained through 6DS1600-series analog input modules, while discrete process states are handled by 6DS1700-series digital I/O modules. The monitor coupler function of the 6DS1122-8AA ensures that supervisory data flows correctly between these subsystems without signal degradation.

In installations where communication redundancy is critical, the 6DS1122-8AA is often deployed alongside TELEPERM M communication modules such as the 6DS1900-series bus interface units, enabling seamless data exchange with higher-level SCADA systems or operator workstations. Power supply stability is maintained by dedicated Siemens SITOP industrial power supply units, which provide clean, regulated DC power to the subrack — a prerequisite for reliable coupler operation in electrically noisy environments.

For facilities managing safety-critical loops, the 6DS1122-8AA is frequently installed in the same control cabinet as Siemens SIMATIC S7-400H redundant PLC systems or AS 488/TM automation stations, creating a layered control and monitoring architecture. Terminal modules and marshalling panels from the Siemens ET 200 distributed I/O family provide the field-side termination points, ensuring that wiring integrity is maintained even under vibration and thermal cycling. Relay output modules within the same subrack handle actuator commands, completing the closed-loop control chain.

Application in Critical Infrastructure

The Siemens 6DS1122-8AA has a proven track record in some of the world’s most demanding industrial environments. In oil and gas processing facilities, where continuous operation is non-negotiable and process upsets carry severe safety and financial consequences, TELEPERM M systems equipped with the 6DS1122-8AA monitor coupler provide the signal supervision necessary to detect loop faults before they escalate. Offshore platforms and onshore refineries rely on the module’s stable performance across wide temperature swings and in the presence of hydrocarbon vapors.

In coal-fired and combined-cycle power plants, the 6DS1122-8AA supports boiler control and turbine monitoring systems where millisecond-level response and uninterrupted signal coupling are essential. The module’s compatibility with the TELEPERM M subrack architecture means it can be hot-swapped during planned maintenance windows without requiring a full system shutdown, minimizing production losses.

Water and wastewater treatment plants benefit from the module’s resistance to high-humidity environments and its ability to maintain signal fidelity in facilities where chemical dosing, pump control, and flow monitoring must operate continuously. In metallurgical and steel production facilities, where radiated heat, heavy vibration from rolling mills, and intense EMI from large motor drives are constant challenges, the ruggedized design of the 6DS1122-8AA ensures that the DCS backbone remains stable and responsive.

Mining operations — both surface and underground — deploy TELEPERM M systems for conveyor control, ventilation management, and ore processing automation. The 6DS1122-8AA’s role as a monitor coupler ensures that supervisory signals from remote field stations reach the central control room accurately, supporting both operational efficiency and worker safety compliance.
