Siemens 6DP1230-8CC Ruggedized Analog I/O Module for Harsh Environments

Product Overview

Siemens 6DP1230-8CC Ruggedized Analog I/O Module for Harsh Environments

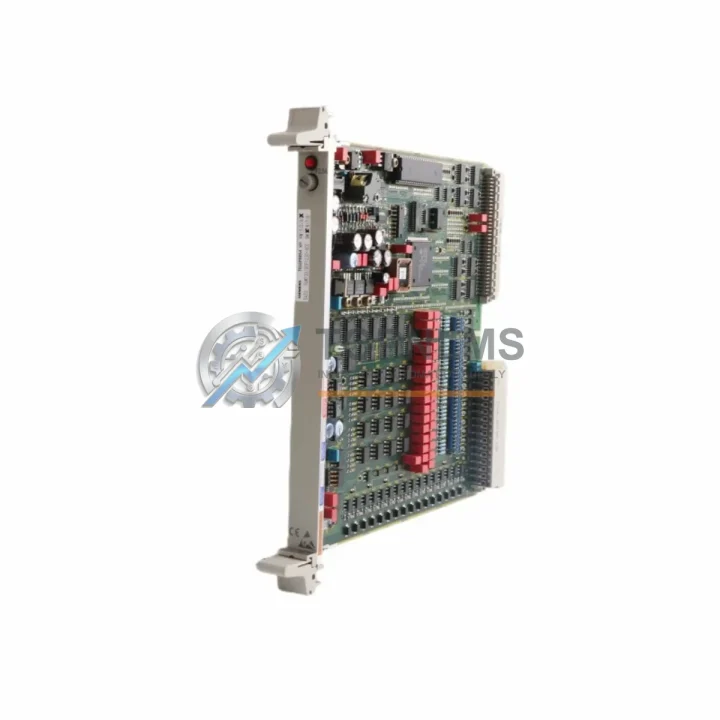

The Siemens 6DP1230-8CC (FUM230) is a high-integrity analog input/output module engineered for the TELEPERM M Distributed Control System (DCS) — one of Siemens’ most proven process automation platforms deployed across decades of continuous industrial operation. Designed to deliver unwavering signal accuracy and system stability in the most demanding plant environments, the 6DP1230-8CC is the backbone of analog process control loops where failure is not an option.

In facilities where ambient temperatures fluctuate between sub-zero cold starts and sustained high-heat operation — such as steel furnace control rooms, offshore platform cabinets, or chemical reactor monitoring stations — the 6DP1230-8CC maintains calibrated analog signal integrity across its full operating range. Its ruggedized PCB construction and conformal coating resist moisture ingress, airborne particulates, and corrosive atmospheres common in mining, pulp and paper, and water treatment environments.

Electromagnetic interference (EMI) is a persistent threat in heavy industrial settings where large variable frequency drives (VFDs), high-current motor starters, and power distribution switchgear operate in close proximity to control instrumentation. The 6DP1230-8CC’s shielded signal architecture and differential input design suppress common-mode noise, ensuring that 4–20 mA and voltage analog signals from field transmitters, thermocouples, and pressure sensors reach the TELEPERM M central processing unit without distortion. This makes it a trusted companion to Siemens TELEPERM M central modules such as the 6DP1610-8AA (AS230 Automation System) and communication interface cards like the 6DP1232-8AA, which together form a complete, validated DCS architecture.

Within the control cabinet, the 6DP1230-8CC integrates seamlessly with TELEPERM M bus backplanes, Siemens SIMATIC S5 I/O expansion racks, and associated terminal modules. Field wiring connects through compatible Siemens terminal assemblies, maintaining the system’s overall IP protection class when properly installed. For plants running mixed automation architectures, the module’s standardized analog signal ranges ensure compatibility with third-party field instruments and HART-capable transmitters, reducing integration complexity during brownfield upgrades.

Vibration and mechanical shock are constant stressors in rotating equipment environments — compressor halls, pump stations, and turbine control rooms subject control hardware to continuous low-frequency vibration. The 6DP1230-8CC’s board-level mechanical design meets the vibration and shock specifications required for DIN rail and rack-mounted industrial enclosures, preventing solder joint fatigue and connector intermittency that can cause spurious analog readings and unplanned shutdowns.

In safety-critical applications — including emergency shutdown (ESD) systems, burner management, and SIL-rated process loops — analog I/O modules must perform reliably over extended maintenance intervals. The 6DP1230-8CC supports the TELEPERM M platform’s diagnostic capabilities, enabling the host controller to detect open-circuit, short-circuit, and out-of-range faults on connected field devices. This self-monitoring behavior reduces the risk of undetected dangerous failures and supports IEC 61511 functional safety management practices in oil and gas, power generation, and chemical processing plants.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6DP1230-8CC does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical TELEPERM M installation, the analog I/O module works in concert with the Siemens 6DP1610-8AA AS230 Automation Station, which executes the control logic and coordinates all I/O modules on the backplane. Digital I/O functions are handled by companion modules such as the Siemens 6DP1231-8AA digital input module and the 6DP1232-8AA digital output module, providing a complete mixed-signal I/O layer for complex process loops.

Power supply integrity is equally critical. The TELEPERM M rack is typically powered by a dedicated Siemens 6DP1900-8AA or equivalent DCS power supply module, which provides regulated 24 VDC bus voltage with redundancy options for continuous-process applications. Upstream, industrial-grade Siemens SITOP power supply units condition incoming AC mains power, filtering transients and voltage sags that could otherwise propagate into sensitive analog measurement circuits.

For plants requiring communication between the TELEPERM M DCS and modern SCADA systems or higher-level MES platforms, Siemens 6DP1232-8CC communication interface modules and PROFIBUS DP gateway adapters bridge legacy TELEPERM M architectures to contemporary network topologies. Safety relay modules and Siemens SIRIUS 3SK safety relays are commonly installed in the same control cabinet to handle emergency stop and safety interlock functions, with their enable signals sourced from analog process values measured by the 6DP1230-8CC.

Terminal block assemblies — including Siemens SIMATIC S5 terminal modules and compatible Phoenix Contact or Weidmüller marshalling terminals — provide the field wiring interface, ensuring that the analog signal chain from field transmitter to DCS processor maintains full shielding continuity and ground isolation throughout.

Application in Critical Infrastructure

The Siemens 6DP1230-8CC has earned its place in some of the world’s most demanding industrial environments. In oil and gas upstream and midstream facilities, it monitors wellhead pressure transmitters, flow meters, and temperature sensors feeding into safety instrumented systems (SIS), where analog signal accuracy directly influences emergency shutdown decisions. Offshore platform control rooms — subject to salt-laden air, constant vibration from wave action, and strict space constraints — rely on the compact, rack-mounted TELEPERM M architecture anchored by modules like the 6DP1230-8CC.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the module interfaces with boiler drum level transmitters, turbine speed sensors, and generator excitation control loops. Its ability to maintain calibrated analog output under high-EMI conditions generated by large generators and transformer banks makes it indispensable for continuous baseload generation operations.

Mining and mineral processing operations deploy the 6DP1230-8CC in crusher control systems, flotation cell level control, and conveyor belt load monitoring. The harsh combination of coal dust, silica particulates, high humidity, and ground vibration in underground and open-cut mining environments tests the limits of standard industrial hardware — conditions the TELEPERM M platform and its analog I/O modules were specifically engineered to withstand.

In water and wastewater treatment plants, the module controls dosing pump analog outputs and monitors influent flow, pH, and dissolved oxygen sensors across large, geographically distributed treatment facilities. Its long-term stability and low drift characteristics reduce the frequency of field calibration visits, lowering operational costs in remote or unmanned installations.

Metallurgical and steel plants use the 6DP1230-8CC in electric arc furnace (EAF) electrode regulation, continuous casting mold level control, and rolling mill tension control — applications where millisecond-level analog response and immunity to intense electromagnetic fields from high-current bus bars are non-negotiable requirements.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Siemens 6DP1230-8CC?
All Siemens 6DP1230-8CC modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify analog channel performance, bus communication integrity, and power rail stability before dispatch.

Q2: How is the module tested before shipment, and what documentation is provided?
Every 6DP1230-8CC is bench-tested using TELEPERM M-compatible test rigs that simulate live backplane bus conditions. Test results confirm channel-by-channel analog accuracy within published Siemens specifications. A test report and product authenticity confirmation are available upon request. Modules are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Q3: Is the 6DP1230-8CC compatible with my existing TELEPERM M system version?
The 6DP1230-8CC (FUM230) is compatible with TELEPERM M AS230 and AS235 automation stations and their associated backplane configurations. For AS488/TM or mixed-generation TELEPERM M installations, please contact our technical team at [email protected] with your system configuration details. We will confirm compatibility and, where necessary, recommend validated alternative modules from our inventory.

Q4: Can TOPNLMS support long-term supply and replacement for discontinued TELEPERM M components?
Yes. TOPNLMS specializes in sourcing and supplying legacy and discontinued Siemens DCS and PLC components, including the full TELEPERM M I/O module range. We maintain buffer stock of high-demand modules to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact us to discuss long-term supply contracts and priority allocation for critical plant spares.
