Siemens 6DP1210-7AA Replacement for SINEC H1 Series: Smooth Transition from Legacy Systems

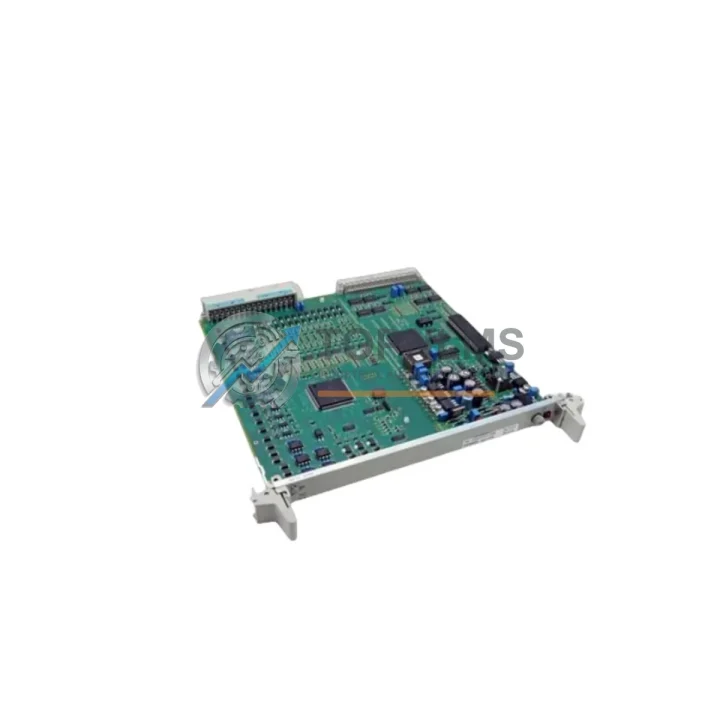

The Siemens 6DP1210-7AA (FUM210) is a SINEC H1 Industrial Ethernet communication module designed for integration into Siemens S5 and early S7 programmable controller platforms. As this module approaches end-of-life and spare parts become increasingly scarce, many plant operators and system integrators are actively seeking verified replacement units or migration-ready alternatives that preserve existing wiring infrastructure, communication protocols, and control cabinet layouts.

TOPNLMS maintains ready stock of the 6DP1210-7AA to support urgent replacement scenarios, scheduled maintenance windows, and phased modernization projects. Each unit is inspected and tested prior to dispatch, ensuring compatibility with your existing SINEC H1 network topology. Whether you are replacing a failed module on a running production line or building a spare-parts buffer for a multi-site facility, our fulfillment process is optimized to minimize your downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SINEC H1 network restoration or S5 system modernization rarely involves a single module swap. In practice, field engineers replacing the 6DP1210-7AA frequently encounter adjacent components that require simultaneous attention. The S5 power supply module — typically a 6ES5 955 series unit — should be inspected for capacitor aging whenever a communication module is replaced, as both components share the same operational lifespan in most installations. Similarly, the S5 backplane bus connector and rack assembly (such as the 6ES5 700 series rack) should be verified for corrosion or contact fatigue before the new FUM210 is seated.

On the network side, SINEC H1 coaxial segments often rely on 6GK1 500 series AUI transceivers and BNC T-connectors to maintain signal integrity. If the communication failure originated from a network fault rather than the module itself, these passive components are the next logical inspection point. For sites transitioning from SINEC H1 toward Industrial Ethernet (IE), a 6GK7 343 series CP 343-1 communications processor can serve as a migration bridge, allowing the S5 host to participate in a modern PROFINET or TCP/IP network while legacy field devices are progressively replaced.

Where the S5 controller itself is being retired in favor of a SIMATIC S7-300 or S7-400 platform, the 6ES7 315 or 6ES7 414 CPU modules provide a well-documented migration path. Siemens’ own migration guides cover the conversion of STEP 5 program blocks to STEP 7 structured control language, and TOPNLMS can supply both the target CPU and the associated 6ES7 321 / 6ES7 322 digital I/O modules to complete the rack build-out. For analog signal chains, 6ES7 331 and 6ES7 332 analog input/output modules maintain the same terminal wiring as their S5 predecessors in most configurations, significantly reducing field re-wiring effort.

HMI continuity is another common concern during S5 migrations. Existing OP7, OP17, or TP27 operator panels connected via the MPI or PROFIBUS DP interface can typically be retained during an intermediate migration phase, with the new S7 CPU configured to emulate the legacy data block structure. This approach allows production to continue on the existing HMI while the control program is validated in parallel.

Retrofit Guidance FAQ

Q: Can I reuse my existing SINEC H1 coaxial cable plant after installing the 6DP1210-7AA?
A: Yes. The FUM210 uses the same AUI/BNC physical interface as earlier SINEC H1 modules. Provided the cable plant is within specification (impedance, segment length, termination), no re-cabling is required. Inspect BNC connectors and terminators for oxidation before powering up.

Q: Will my existing STEP 5 program run without modification after the module swap?
A: In a direct 1:1 replacement scenario (same module type, same rack slot), the STEP 5 program and hardware configuration do not require modification. The module address and interrupt assignments are preserved. A cold restart of the CPU is recommended after seating the new module.

Q: How do I handle the SINEC H1 network address configuration on the replacement module?
A: The FUM210’s network address is set via DIP switches on the module face. Document the existing switch positions before removing the failed unit, then replicate the settings on the replacement. No software reconfiguration is required if the address is unchanged.

Q: Is the 6DP1210-7AA compatible with S5-95U or S5-100U controllers?
A: The FUM210 is designed for the S5-115U, S5-135U, and S5-155U rack systems. It is not compatible with the compact S5-90U/95U/100U series, which use a different backplane bus architecture. For those platforms, consult the CP 521 or CP 523 communication processor alternatives.

Q: What is the physical installation space requirement?
A: The 6DP1210-7AA occupies one standard S5 expansion slot (single-width module). No additional DIN rail space or external mounting is required. Verify that the target slot is not reserved for a specific function module in your hardware configuration file.

Q: Can this module be used in a mixed S5/S7 migration architecture?
A: The FUM210 operates exclusively within the S5 SINEC H1 environment. For mixed architectures where an S7 CPU must communicate with legacy SINEC H1 devices, a dedicated protocol gateway or a CP 343-1 with appropriate configuration is the recommended approach.

Warranty Assurance

Every Siemens 6DP1210-7AA unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional inspection covering power-on self-test, backplane interface continuity, and network port integrity. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement dispatch within 3 business days of fault confirmation, subject to return of the defective unit. Our after-sales team is reachable via email and phone to support on-site troubleshooting, documentation requests, and customs clearance queries for international shipments. We maintain buffer stock specifically to support warranty replacements without lead-time delays.

For procurement teams requiring formal quality documentation, we can provide inspection reports, packing lists, and commercial invoices aligned with your purchasing department’s requirements. Volume orders and blanket purchase agreements are accommodated with agreed delivery schedules.

Shipping is handled from our Xiamen warehouse with DHL Express, FedEx International, and sea freight options depending on order volume and urgency. Typical air freight transit time to Europe is 3–5 business days; to North America, 4–6 business days.
