Siemens 6DM1001-7WA14-0 Replacement for SIMATIC S5: Smooth Migration & Legacy System Upgrade

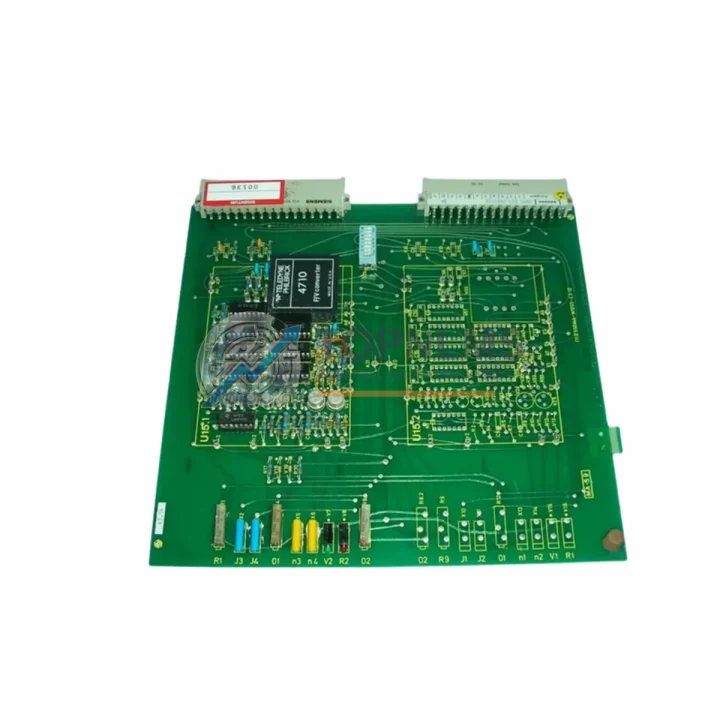

The Siemens 6DM1001-7WA14-0 is a Modulpac control module originally designed for the SIMATIC S5 automation platform — a system that powered industrial facilities worldwide for decades. As Siemens has officially discontinued the S5 product line, facilities still operating this hardware face increasing risks: unavailable spare parts, unsupported firmware, and mounting downtime costs when a module fails in the field.

TOPNLMS specializes in sourcing, testing, and supplying verified replacement and upgrade solutions for the 6DM1001-7WA14-0 and the broader SIMATIC S5 ecosystem. Whether your goal is a direct like-for-like swap to restore production immediately, or a phased migration toward a modern control architecture, our team provides the technical guidance and hardware to make the transition reliable and cost-effective.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy SIMATIC S5 system built around the 6DM1001-7WA14-0 rarely involves a single module in isolation. In practice, engineers must evaluate the entire control cabinet architecture before committing to a replacement strategy.

For facilities performing a direct swap, the existing S5 Modulpac rack and its backplane remain in service. The 6DM1001-7WA14-0 slots directly into the same position, and the existing S5 front connectors attach without rewiring — a critical advantage when minimizing planned downtime windows. The STEP 5 program stored on the existing PG or memory module continues to run without modification.

For sites planning a phased migration to the SIMATIC S7-300 platform, the process typically begins by replacing the CPU — for example, moving from a CPU 948 or CPU 928B to a CPU 315-2 DP or CPU 317-2 PN/DP — while retaining existing I/O wiring through S5-to-S7 adapter cables. The PS 307 power supply module replaces the S5 power unit and fits within the same control cabinet footprint in most installations. Profibus DP communication, already present in many S5 systems, carries forward natively into the S7 architecture, preserving connections to remote ET 200M distributed I/O stations and field devices without protocol conversion.

Where the legacy system includes analog signal conditioning, SM 331 / SM 332 analog I/O modules provide a direct functional replacement for S5 analog cards, with the same terminal block wiring approach. For installations using serial communication to SCADA or HMI systems, the CP 341 communication processor supports RS-232/RS-485 and can replicate the data exchange previously handled by S5 CP modules. Sites with existing SIMATIC Panel PCs or OP series HMIs connected via MPI can retain those interfaces during the transition, as MPI is supported across both S5-adjacent and S7 platforms.

Signal isolation requirements between field instruments and the new control module are addressed using SITOP signal conditioners or third-party DIN-rail isolators, which mount in the same control cabinet without requiring additional panel space. For facilities that need to validate the replacement module before installation, TOPNLMS provides pre-shipment functional testing against standard S5 diagnostic routines.

Retrofit Guidance FAQ

Q: Can I install the replacement 6DM1001-7WA14-0 without modifying my existing wiring?
A: Yes. The replacement module uses the same S5 Modulpac front connector pinout. No rewiring is required for a direct swap. For S7 migration, adapter cables are available to reuse existing field wiring.

Q: Will my existing STEP 5 program run on the replacement module?
A: A direct replacement module runs your existing STEP 5 program without modification. For S7 migration, the program must be converted using the STEP 7 migration tool, which automates the majority of block conversions.

Q: Is Profibus DP communication preserved during migration?
A: Yes. Profibus DP is natively supported in both the S5 and S7 platforms. Existing Profibus network topology, device addresses, and baud rates are retained without reconfiguration in most migration scenarios.

Q: Does the replacement module fit the existing Modulpac rack without mechanical modification?
A: Yes. The 6DM1001-7WA14-0 replacement fits the standard S5 Modulpac rack slot. No drilling, cutting, or panel modification is required.

Q: What is the lead time and shipping arrangement?
A: Stock is held in Xiamen, China. Orders are typically dispatched within 1–3 business days. International express shipping (DHL / FedEx) is available with tracking. Estimated delivery is 5–10 business days to most destinations.

Q: How is compatibility verified before shipment?
A: Each unit undergoes power-on testing and functional verification against S5 diagnostic standards before dispatch. A test report is available upon request.

Warranty Assurance

Every 6DM1001-7WA14-0 replacement module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes replacement or repair at no additional cost to the buyer.

Prior to shipment, each module is subjected to a multi-stage inspection process: visual inspection for physical damage, power-on verification, and functional testing against documented S5 module behavior. Units that do not pass all stages are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a rapid response within 48 business hours. Replacement units are dispatched from stock where available, minimizing the impact on production schedules. Our after-sales team is reachable directly via email and phone for technical support during installation and commissioning.

For B2B procurement teams, we provide commercial invoices, packing lists, and test certificates to support customs clearance and internal asset management processes. Volume pricing and blanket order arrangements are available for facilities managing multi-site S5 replacement programs.
