Siemens 6DD1600-0AF0 Replacement for Simadyn D Series

Product Overview

Siemens 6DD1600-0AF0 Replacement for Simadyn D: Smooth Migration from Legacy CPU to Modern Control

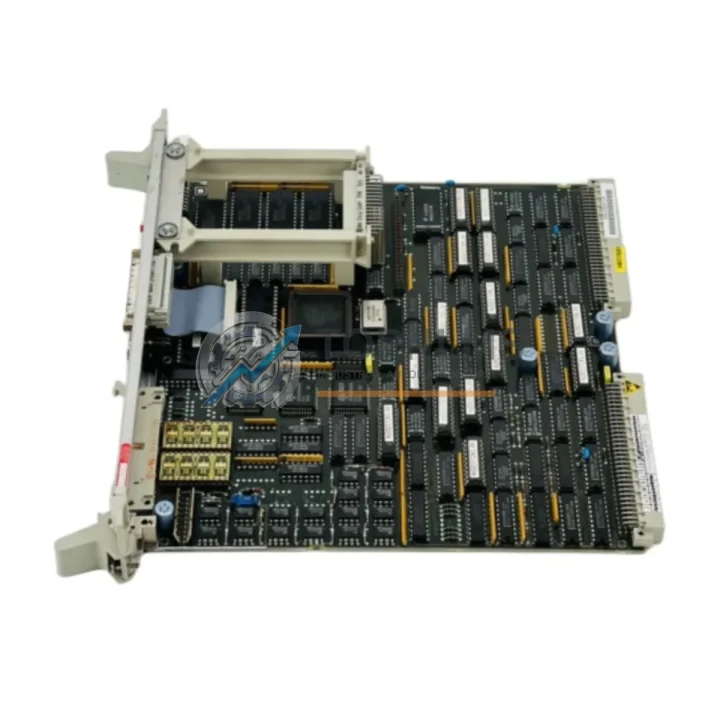

The Siemens 6DD1600-0AF0 is the PM16 Processor Module at the heart of the Simadyn D closed-loop control platform — a system widely deployed in steel mills, paper machines, rolling lines, and large drive applications throughout the 1990s and 2000s. As Siemens has officially discontinued the Simadyn D product family, sourcing a verified replacement 6DD1600-0AF0 has become a critical priority for plant engineers and maintenance teams who need to restore production with minimal downtime.

TOPNLMS maintains tested, ready-to-ship stock of the 6DD1600-0AF0 PM16 Processor Module, enabling a direct, drop-in replacement without requiring changes to your existing control cabinet wiring, rack layout, or application software. Every unit is inspected and function-tested before dispatch, and is backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Simadyn D migration rarely involves replacing the PM16 processor module in isolation. In most retrofit projects, the 6DD1600-0AF0 is replaced alongside a broader set of components to restore full system integrity and future-proof the control architecture.

Many sites running Simadyn D also rely on the 6DD1682-0BC0 rack assembly as the physical backbone of the control system. If the rack backplane has suffered corrosion or connector wear over decades of operation, replacing it in the same maintenance window as the PM16 module eliminates a secondary failure point. Similarly, the 6DD1682-0AH0 power supply module — which feeds the 24 VDC bus across the Simadyn D rack — should be inspected and replaced if it shows signs of capacitor aging or output ripple, since a degraded power supply is a common root cause of intermittent PM16 faults.

On the I/O side, Simadyn D systems typically use dedicated analog and digital I/O modules such as the 6DD1606-0AC0 AM16 analog input module and the 6DD1607-0AA0 DM16 digital I/O module. These modules communicate with the PM16 over the internal T400 bus and must be confirmed functional before commissioning the replacement processor. If any I/O module shows address conflicts or communication errors after the PM16 swap, it is advisable to replace the affected I/O card at the same time to avoid repeated shutdowns.

For sites that use PROFIBUS-DP as the fieldbus backbone connecting the Simadyn D controller to remote I/O stations or SIMATIC S7 supervisory systems, the 6DD1684-0GD0 CP communication processor handles the PROFIBUS master function. Verifying the CP module firmware version and its compatibility with the replacement PM16 is a standard commissioning step. In some upgrade scenarios, engineers also introduce a SIMATIC S7-300 or S7-400 CPU as a parallel supervisory layer, using the existing PROFIBUS network to bridge legacy Simadyn D closed-loop control with a modern PLC program structure — a common migration path that avoids a full rip-and-replace of the drive control system.

Where the Simadyn D system interfaces with SIMOREG DC Master or SIMOVERT MASTERDRIVES drive units via SIMOLINK fiber-optic ring, the fiber transceivers and SIMOLINK interface boards should be inspected as part of the PM16 replacement project. A faulty SIMOLINK node can prevent the new PM16 from establishing synchronization with the drive units, causing commissioning delays. Stocking a spare 6SE7090-0XX84-0AB0 SIMOLINK board alongside the PM16 replacement is a prudent practice for critical production lines.

Finally, for programming and parameter backup, a Siemens STEP 7 programming cable (e.g. PC Adapter USB A2) or a compatible MPI/PROFIBUS interface adapter is required to connect a laptop to the Simadyn D system for CFC program download and online diagnostics. Ensuring this toolchain is available on-site before the replacement window begins is essential to minimizing total downtime during the swap.

Retrofit Guidance FAQ

Q: Can I replace the 6DD1600-0AF0 without modifying my existing cabinet wiring?
A: Yes. The PM16 module connects to the Simadyn D rack via the backplane bus. No field wiring changes are required. Simply remove the faulty module, insert the replacement, and reload your CFC application program.

Q: Do I need to re-engineer my CFC/SFC application software after replacing the PM16?
A: No. The replacement 6DD1600-0AF0 uses the same firmware architecture as the original. Your existing CFC program, parameter sets, and function block configurations can be downloaded directly from your backup without modification.

Q: Is the replacement module compatible with PROFIBUS-DP and SIMOLINK communication?
A: Yes. The 6DD1600-0AF0 supports the same PROFIBUS-DP and SIMOLINK protocol stack as the original module. No changes to network configuration, node addresses, or baud rate settings are required.

Q: What if my Simadyn D rack or power supply is also aging?
A: We recommend inspecting the rack backplane connectors and the 24 VDC power supply module during the same maintenance window. Replacing a degraded power supply or rack alongside the PM16 prevents secondary failures and reduces future unplanned downtime.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After inserting the module and downloading the CFC program, use STEP 7 or the Simadyn D diagnostic tool to check the CPU status LED, verify I/O module communication on the T400 bus, and confirm PROFIBUS/SIMOLINK node synchronization before returning the system to production.

Q: What is the physical installation space requirement?
A: The 6DD1600-0AF0 occupies the same slot width and depth as the original PM16 module. No cabinet modifications, DIN rail changes, or additional mounting hardware are required.

Warranty Assurance

Every 6DD1600-0AF0 PM16 Processor Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a multi-point functional inspection including power-on self-test, backplane bus communication verification, and visual inspection of connectors and PCB components. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, with priority processing for customers experiencing production downtime. Our technical team is available to assist with installation guidance, commissioning questions, and compatibility verification before and after purchase.

We ship globally from Xiamen, China, with express freight options available for urgent replacement requirements. Most in-stock orders are dispatched within 1–2 business days. Tracking information is provided upon shipment.
