Siemens 6AV7240-0HC07-0PA0 Original Industrial Spare IPC477D Compatible

Product Overview

Siemens 6AV7240-0HC07-0PA0 Original Industrial Spare IPC477D Compatible: System Stability and Industrial Spare Parts Maintenance Value

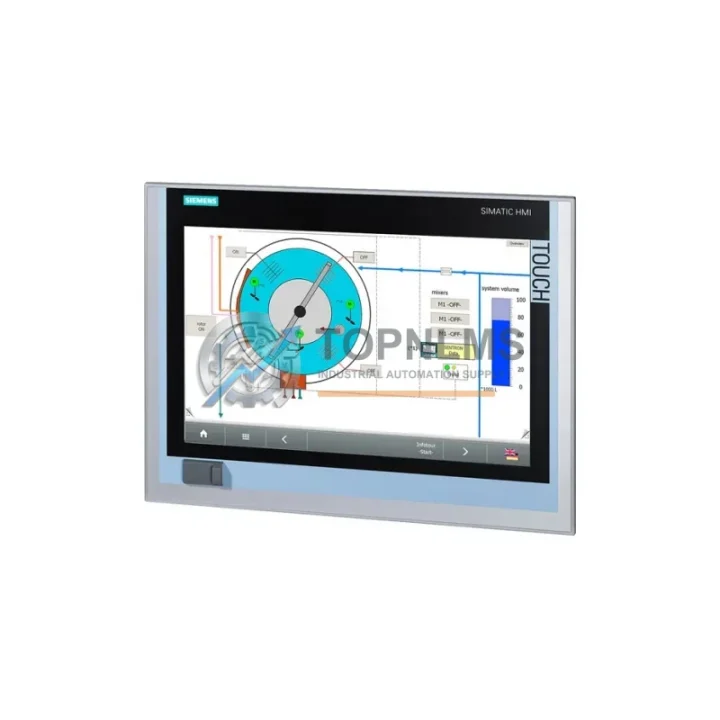

The Siemens 6AV7240-0HC07-0PA0 is an original SIMATIC IPC477D Industrial Panel PC designed for demanding industrial automation environments. As a multitouch-enabled panel PC, it serves as the human-machine interface (HMI) and visualization core within SIMATIC-based control architectures — integrating seamlessly with S7-300, S7-400, and S7-1500 PLC platforms. For maintenance engineers managing aging production lines, securing a verified original spare of the IPC477D is a critical step in reducing unplanned downtime and extending the operational life of existing control systems.

Whether you are managing a scheduled shutdown, responding to an unexpected HMI failure, or building a strategic spare parts inventory, the 6AV7240-0HC07-0PA0 delivers the exact hardware compatibility, firmware baseline, and mechanical form factor required for a direct, zero-configuration replacement in existing IPC477D installations.

Critical Technical Specs

Preventive Maintenance Strategy

In industrial facilities running SIMATIC-based control systems, the IPC477D panel PC is rarely the only component under stress. A proactive maintenance strategy requires evaluating the entire control cabinet ecosystem during any scheduled inspection or corrective maintenance event involving the 6AV7240-0HC07-0PA0.

When replacing or inspecting the IPC477D, maintenance teams should simultaneously audit the 24 V DC power supply module feeding the panel — units such as the Siemens SITOP PSU100S or equivalent regulated DIN-rail power supplies are common failure points in aging cabinets and should be tested for output stability and ripple. The PROFINET communication cable and RJ45 patch connections between the IPC477D and the PLC rack should be inspected for insulation wear, connector oxidation, and bend-radius violations, particularly in high-vibration environments.

If the IPC477D is integrated with a Siemens S7-300 or S7-400 CPU module — such as the 6ES7315-2EH14-0AB0 or 6ES7416-3XR05-0AB0 — verify that the CPU firmware version is compatible with the WinCC Runtime version installed on the panel. Mismatched firmware after a panel replacement is a leading cause of post-maintenance communication faults. Similarly, CP 343-1 or CP 443-1 PROFINET communication processors in the same rack should be checked for active fault LEDs and connection timeouts.

During cabinet inspection, it is also advisable to check the condition of SM 321 / SM 322 digital I/O modules and SM 331 / SM 332 analog I/O modules connected to the same backplane. These modules share the same 24 V bus and are subject to the same thermal and electrical stress cycles as the HMI system. Replacing a failed IPC477D without auditing adjacent I/O modules risks a secondary failure within weeks of restart.

For facilities using Siemens ET 200S or ET 200SP distributed I/O nodes connected to the IPC477D’s PROFINET segment, verify that the IM 151-3 or IM 155-6 interface modules are responding correctly after panel replacement. A panel swap that resets PROFINET device names can cause ET 200 nodes to go offline if the new panel’s MAC address is not correctly re-provisioned in the TIA Portal project.

Additionally, inspect the terminal blocks and signal isolators on the analog input circuits feeding process values to the WinCC visualization. Degraded terminal connections or drifting signal isolators will produce false process readings on the new panel, leading to unnecessary alarm investigations. Replacing worn Phoenix Contact or Weidmüller terminal blocks during the same maintenance window is a cost-effective practice.

Finally, if the control cabinet houses a Siemens SCALANCE industrial Ethernet switch managing the PROFINET ring or star topology, verify switch port status and update firmware if the switch has been in service for more than three years. Network-layer instability is a common root cause of intermittent IPC477D communication faults that are frequently misdiagnosed as panel hardware failures.

Strategic Replacement Solutions

The 6AV7240-0HC07-0PA0 is a direct original replacement for aging IPC477D units installed in production lines built between 2010 and 2020. Many facilities operating legacy SIMATIC architectures face the challenge of sourcing verified original hardware as the product approaches end-of-mainstream-support — a phase where counterfeit and refurbished units flood the secondary market.

Sourcing an original 6AV7240-0HC07-0PA0 from a verified supplier eliminates the firmware compatibility risks associated with refurbished panels, which may carry non-factory OS images or degraded SSD/HDD storage. An original spare can be staged, pre-configured with the existing WinCC project, and held in the maintenance store ready for a sub-30-minute swap during the next unplanned outage — reducing mean time to repair (MTTR) from hours to minutes.

For facilities managing multiple IPC477D installations across different production cells, a strategic inventory of one or two 6AV7240-0HC07-0PA0 units provides insurance against cascading downtime events. The 12-month warranty on each unit ensures that staged spares remain covered during the holding period, and pre-shipment electrical testing guarantees that the unit is operational before it enters your inventory.

Where a full panel replacement is not immediately feasible, the IPC477D’s modular design allows for component-level interventions — including SSD replacement, RAM upgrade, and fan module servicing — that can extend the operational life of an existing unit by 3–5 years. However, for systems where the panel is the single point of failure for an entire production line, a pre-staged original replacement remains the lowest-risk strategy.

Support FAQ

Q1: Is the 6AV7240-0HC07-0PA0 compatible with my existing WinCC and TIA Portal project?
Yes. As an original Siemens IPC477D unit, the 6AV7240-0HC07-0PA0 supports the same hardware platform as all IPC477D variants. Compatibility with WinCC Runtime and TIA Portal depends on the OS and software version pre-installed. We recommend confirming the factory OS image version against your project’s WinCC Runtime version before deployment. Our team can advise on version matching prior to shipment.

Q2: What pre-shipment testing is performed on this unit?
Each 6AV7240-0HC07-0PA0 undergoes power-on functional testing, display and touch calibration verification, communication port checks (Ethernet/USB), and OS boot validation before shipment. A 12-month warranty is provided from the date of invoice, covering hardware defects under normal operating conditions.

Q3: How quickly can this spare be deployed in a live production environment?
For a direct replacement of a failed IPC477D, deployment time depends on whether a pre-configured WinCC image is available. With a pre-staged image on USB or network share, a trained maintenance technician can complete the physical swap, OS restore, and PROFINET re-commissioning within 30–60 minutes. We recommend staging the unit with your project image before storing it as a hot spare.

Q4: What is the recommended inventory strategy for multi-site facilities?
For facilities with 3 or more IPC477D installations, maintaining one spare unit per site is the standard recommendation. For single-site operations with a critical IPC477D controlling a high-value production line, one staged spare with a pre-loaded WinCC image provides adequate coverage. Units held in climate-controlled storage retain full functionality for 24–36 months without requiring maintenance cycling.
