Siemens 6AV6647-0AC11-3AX0 KTP600 Basic Color DP: Seamless Replacement & Smooth System Transition

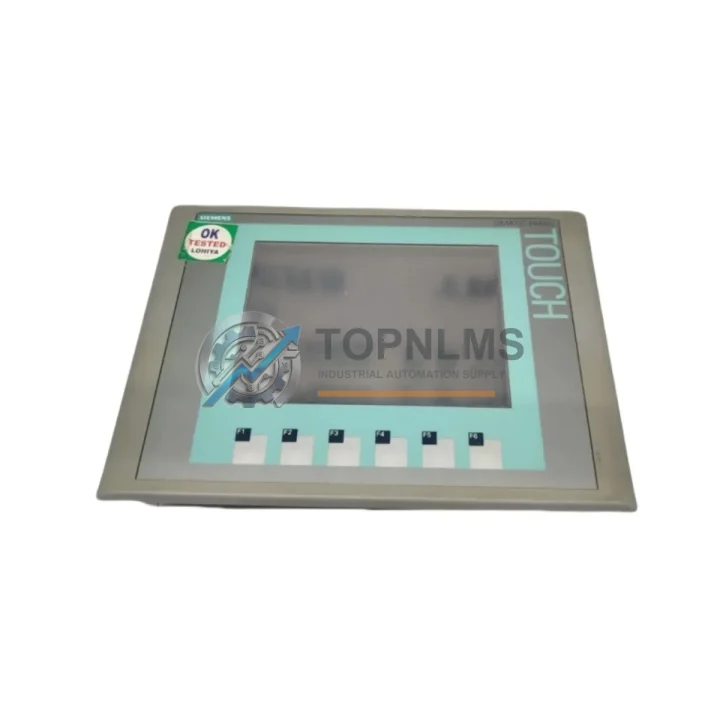

The Siemens 6AV6647-0AC11-3AX0 is a 5.7-inch SIMATIC KTP600 Basic Color DP HMI panel designed for PROFIBUS DP-based control architectures. As this model approaches end-of-life and becomes increasingly difficult to source through standard distribution channels, many industrial facilities are now seeking verified replacement units or direct upgrade paths that preserve existing wiring, panel cutouts, and PROFIBUS network configurations. TOPNLMS supplies tested, ready-to-ship 6AV6647-0AC11-3AX0 units with a 12-month warranty, enabling maintenance teams to restore operations with minimal downtime and without costly system redesigns.

Whether your facility runs a legacy SIMATIC S7-300 or S7-400 PLC backbone, or you are managing a mixed-generation control cabinet that still relies on PROFIBUS DP for field device communication, the KTP600 Basic Color DP integrates directly into your existing architecture. The panel’s 320 × 240 pixel TFT display, 6-function key layout, and MPI/PROFIBUS DP port allow it to replace older OP7, OP17, or TP177B panels with minimal re-engineering. Project migration from legacy panels is handled through TIA Portal or SIMATIC WinCC flexible, and existing screen configurations can often be adapted with straightforward tag remapping rather than full redevelopment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KTP600 Basic Color DP retrofit rarely involves the HMI panel alone. In most PROFIBUS DP control architectures, the panel communicates with a Siemens S7-300 CPU — such as the CPU 315-2 DP or CPU 317-2 DP — via a dedicated PROFIBUS segment. If the CPU module itself is aging or showing intermittent faults, it is advisable to evaluate the CPU alongside the HMI replacement to avoid a second unplanned outage. Similarly, the SIMATIC S7-300 IM 360/361 interface modules that link expansion racks to the central rack should be inspected, as degraded backplane communication can cause false HMI alarms that are often misattributed to the panel itself.

On the field side, the PROFIBUS DP network connecting the KTP600 to distributed I/O — typically Siemens ET 200S or ET 200M remote I/O stations — must be verified for correct termination resistors and bus connector integrity before commissioning the replacement panel. A common oversight during HMI swaps is leaving a floating PROFIBUS segment without proper 220 Ω termination at both ends, which causes intermittent communication errors that appear to be panel faults. Replacing the PROFIBUS DP bus connectors (6ES7972-0BA52-0XA0) at the same time as the HMI is a low-cost preventive measure that eliminates this risk.

For facilities upgrading from WinCC flexible to TIA Portal, a PC adapter USB A2 (6ES7972-0CB20-0XA0) programming cable is required to download the migrated project to the KTP600. This cable also enables online diagnostics and tag monitoring during commissioning, which significantly reduces the time needed to verify that all process values are displaying correctly after the panel swap. If the control cabinet also houses a Siemens SITOP PSU100S 24V power supply, verify that the supply can sustain the KTP600’s 4.5 W typical load alongside existing I/O modules without exceeding the derating curve at elevated ambient temperatures.

In multi-panel installations where the KTP600 shares a PROFIBUS segment with Siemens S7-400 racks or third-party PROFIBUS slaves such as variable frequency drives or SINAMICS G120 drive units, the GSD file for the replacement panel must be re-imported into the engineering project and the DP slave address must be reassigned to match the original configuration. This process is straightforward in TIA Portal but requires careful attention to the hardware configuration download sequence to avoid temporarily disrupting other nodes on the same PROFIBUS ring. Where signal isolation between the HMI supply and the field bus is required, a PROFIBUS signal isolator or repeater (RS 485-IS) may already be present in the cabinet and should be retained during the swap.

Retrofit Guidance FAQ

Q: Can I reuse the existing PROFIBUS DP cable and connector when replacing the panel?
A: Yes, in most cases. The KTP600 Basic Color DP uses a standard 9-pin Sub-D PROFIBUS connector. If the existing cable is in good condition and the bus connector is not cracked or corroded, it can be reused directly. Verify the termination switch position on the connector matches the original panel’s position (ON if it was the last node, OFF if intermediate).

Q: Do I need to modify the panel cutout in the control cabinet door?
A: If replacing a TP177B DP, the cutout difference is approximately 5 mm in each dimension. A new gasket supplied with the KTP600 typically covers this gap without metalwork. For OP7 or OP17 replacements, a cutout adapter plate is recommended.

Q: Can the existing WinCC flexible project be used directly on the KTP600?
A: Projects created in WinCC flexible 2008 SP5 can be opened and downloaded directly. If migrating to TIA Portal, use the integrated migration wizard, which converts screens, tags, and alarms automatically. Manual review of function key assignments and alarm classes is recommended after migration.

Q: What PROFIBUS DP address should I assign to the replacement panel?
A: Assign the same DP slave address as the original panel (default is 1, but site-specific configurations vary). The address is set in the TIA Portal hardware configuration and downloaded to the panel via the USB programming cable before connecting to the PROFIBUS network.

Q: How do I verify the replacement panel is communicating correctly after installation?
A: Use the panel’s built-in diagnostics screen (accessible via the Start Center) to confirm PROFIBUS DP connection status. In TIA Portal, the online diagnostics view will show the panel as a configured slave with green status once communication is established. Tag monitoring mode can then be used to verify that all process values update correctly.

Q: Is the 24 V DC wiring polarity-sensitive?
A: Yes. The KTP600 requires correct polarity on the 2-pin power connector. Reverse polarity will not damage the panel immediately due to internal protection, but sustained reverse connection should be avoided. Label the supply wires before disconnecting the old panel.

Warranty Assurance

Every 6AV6647-0AC11-3AX0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each panel undergoes a functional power-on test to verify display operation, communication port integrity, and key response. Units that do not pass the outgoing inspection are quarantined and not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund, depending on the customer’s preference and stock availability. Our average response time for warranty claims is within 1 business day. Replacement units are dispatched with priority shipping to minimize the impact on production schedules.

For time-critical procurement — particularly for facilities managing unplanned outages — TOPNLMS maintains buffer stock of high-demand SIMATIC HMI and PLC components to support same-day or next-day dispatch from our Xiamen warehouse. Customers requiring advance replacement units (ship-before-return) for critical production lines should contact our sales team directly to discuss consignment arrangements.

All units are shipped in original or equivalent anti-static protective packaging with individual serial number documentation. A copy of the outgoing test record is available upon request for quality audit purposes.
