Siemens 6AV6643-0BA01-1AX0 Replacement for OP277: Seamless Transition from Legacy HMI Systems

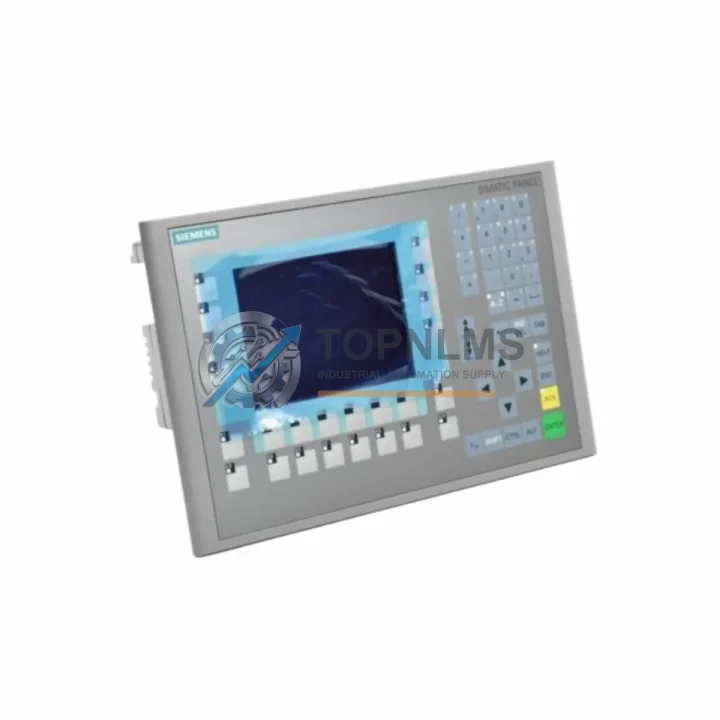

The Siemens 6AV6643-0BA01-1AX0 is a SIMATIC HMI OP277 6″ operator panel widely deployed across manufacturing, process control, and discrete automation environments. As Siemens progressively phases out the OP277 series in favor of the SIMATIC HMI Comfort Panel and KTP700 Basic PN lines, many facilities operating legacy S7-300, S7-400, or even older S5-series PLC architectures face an urgent need for a reliable, drop-in compatible replacement that minimizes engineering rework, preserves existing wiring infrastructure, and avoids costly production downtime.

TOPNLMS supplies the 6AV6643-0BA01-1AX0 as a tested, verified unit — sourced from authorized distribution channels and subjected to pre-shipment functional inspection — to support both emergency breakdown replacements and planned system modernization projects. Whether your facility is running a single OP277 panel on a standalone S7-315 CPU or managing a distributed PROFIBUS DP network with multiple HMI nodes, our stock is ready to ship within 24–48 hours from Xiamen, China, with full export documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging OP270, TP270, or OP17 operator panel to the 6AV6643-0BA01-1AX0 rarely involves the HMI unit alone. In practice, field engineers encounter a cascade of interdependent components that must be evaluated and, in many cases, simultaneously upgraded to ensure system stability.

On the communication side, the OP277 connects to the S7-300 or S7-400 CPU via MPI or PROFIBUS DP using a standard 9-pin Sub-D connector. If the existing PROFIBUS cable and termination resistors are in good condition, they can be reused directly — no rewiring is required. However, facilities that are simultaneously upgrading their controller from an S7-300 (e.g., CPU 315-2 DP) to a newer S7-1500 CPU 1515-2 PN will need to account for the protocol shift from PROFIBUS to PROFINET. In such cases, a SIMATIC PN/DP coupler (6GK1411-5AB00) or a dedicated IE/PB Link PN IO (6GK1411-5AB00) module can bridge the two networks, allowing the OP277 to remain in service during a phased controller migration.

For facilities upgrading the entire control cabinet, the SIMATIC S7-300 DIN rail mounting rack and associated SM321 / SM322 digital I/O modules are commonly replaced in the same project cycle. The OP277’s 24 V DC power requirement is typically sourced from the same SITOP PSU100S 24V/5A (6EP1333-2BA20) power supply unit that feeds the PLC rack — confirming the existing PSU’s load capacity before adding the HMI is a standard commissioning step.

Programming and project migration are handled through WinCC flexible 2008 SP3 or later, using the built-in Migration Wizard to convert legacy ProTool or WinCC flexible 2004 projects. The engineering PC connects to the OP277 via a standard PC/MPI adapter (6ES7972-0CB20-0XA0) or a PROFIBUS USB adapter for project download. If the existing programming cable is a legacy RS-232 type, a USB-to-MPI adapter is required.

Signal isolation is another consideration in older installations where analog I/O signals from field instruments pass through the control cabinet before reaching the PLC’s SM331 analog input module. Installing a SIMATIC signal isolator or SITRANS I/P transducer at the cabinet entry point protects both the new HMI and the PLC from ground loop interference — a common source of display glitches and communication faults in retrofit projects.

Finally, for facilities managing multiple HMI nodes across a PROFIBUS segment, the SIMATIC NET PROFIBUS OLM (Optical Link Module) may be used to extend the network over fiber optic cable, eliminating EMI-related communication errors in high-noise environments such as motor drive cabinets housing SINAMICS G120 or MICROMASTER 440 variable frequency drives.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing an OP270 6″ with the 6AV6643-0BA01-1AX0?
A: Yes. The OP277 6″ uses the same 192×138 mm panel cutout and the same 9-pin Sub-D PROFIBUS/MPI connector as the OP270 6″. Existing cables, cable glands, and termination resistors can be reused without modification.

Q: Do I need to rewrite my HMI project from scratch?
A: No. WinCC flexible 2008 includes a Migration Wizard that converts ProTool and WinCC flexible 2004/2005 projects to the OP277 target. Some manual adjustments to screen layouts and tag addresses may be required after conversion.

Q: Is the OP277 compatible with S7-1200 and S7-1500 controllers?
A: The OP277 supports S7-1200 via Ethernet (with a CP 343-1 or CP 443-1 communication processor on the S7-300 side) and S7-1500 via PROFINET using a PN/DP coupler. Direct PROFINET connection from the OP277 is not supported — the panel is a PROFIBUS/MPI device.

Q: What is the physical installation space requirement?
A: Panel cutout: 192×138 mm. Installation depth behind the panel: approximately 60 mm. The unit mounts flush with standard M4 mounting clamps supplied with the panel.

Q: How do I handle the communication protocol if upgrading from S7-300 to S7-1500?
A: Use a SIMATIC IE/PB Link PN IO module to bridge PROFINET (S7-1500 side) and PROFIBUS DP (OP277 side). This allows a phased migration where the HMI and field devices remain on PROFIBUS while the controller is upgraded to PROFINET.

Q: What spare parts should I stock alongside the 6AV6643-0BA01-1AX0?
A: Recommended spares include the PROFIBUS connector (6ES7972-0BB52-0XA0), PC/MPI adapter (6ES7972-0CB20-0XA0), and a replacement 24V DC power supply (SITOP PSU100S). Contact TOPNLMS for bundled spare part packages.

Warranty Assurance

Every Siemens 6AV6643-0BA01-1AX0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional pre-shipment inspection including power-on verification, display test, communication port check, and visual inspection for physical damage. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. Warranty claims are processed via email at [email protected] with photographic evidence of the defect and the original order number.

For time-critical breakdown situations, TOPNLMS offers priority express shipping (DHL Express / FedEx International Priority) with tracking from our Xiamen warehouse. Standard lead time is 1–3 business days for in-stock items. Bulk orders and long-term supply agreements are available for MRO procurement teams and system integrators.

All units are shipped with commercial invoice, packing list, and certificate of origin as required for customs clearance. Export compliance documentation is available upon request.
