Siemens 6AV6642-0DA01-1AX1 Original Industrial Spare SIMATIC Compatible

Product Overview

Siemens 6AV6642-0DA01-1AX1 Original Industrial Spare SIMATIC Compatible: System Stability & Industrial Spare Maintenance Value

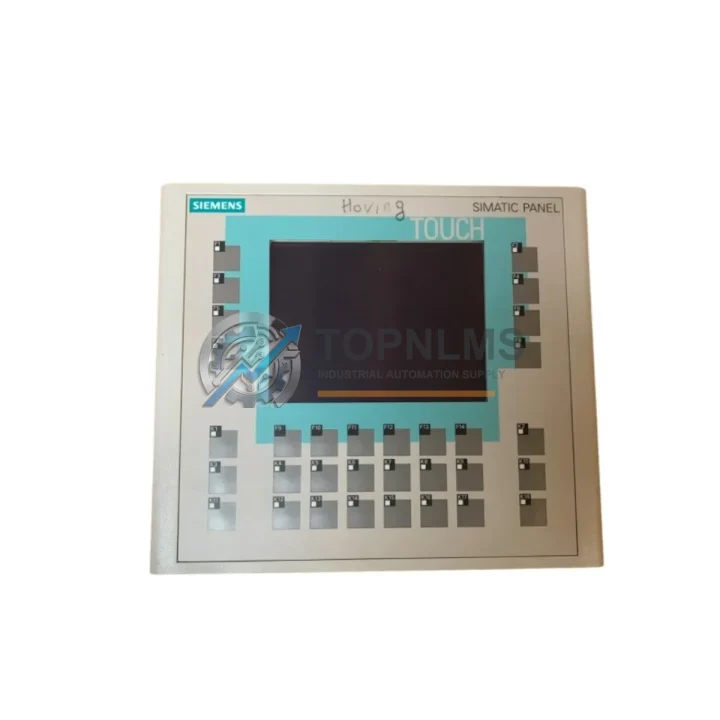

The Siemens 6AV6642-0DA01-1AX1 OP177B is a proven SIMATIC HMI operator panel widely deployed across discrete manufacturing, process control, and utility automation environments. As a direct original spare, it provides a drop-in replacement path for aging or failed HMI stations without requiring software reconfiguration, panel cutout modification, or PLC program changes. For maintenance engineers managing legacy SIMATIC S7-300 or S7-400 control systems, securing a verified original unit is the single most effective way to eliminate unplanned downtime caused by HMI failure.

Industrial facilities that rely on continuous production schedules cannot afford extended HMI outages. A failed operator panel disrupts process visibility, disables local parameter adjustment, and forces operators to revert to manual override procedures — all of which increase risk and reduce throughput. Stocking the 6AV6642-0DA01-1AX1 as a cold-standby spare eliminates this exposure and supports a rapid swap-and-resume maintenance strategy.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for SIMATIC HMI stations should extend beyond the panel itself. During scheduled shutdowns or annual control cabinet inspections, maintenance teams should treat the OP177B replacement as part of a broader system health check. The MPI/PROFIBUS DP communication cable connecting the HMI to the S7-300 CPU — typically a 6XV1830-series shielded cable — should be inspected for insulation wear, connector corrosion, and secure termination, as degraded cabling is a leading cause of intermittent HMI communication faults that are often misdiagnosed as panel failure.

The 24 V DC power supply feeding the OP177B, such as a SITOP PSU100S or equivalent DIN-rail power supply module, should be load-tested and its output voltage verified under full cabinet load. Capacitor aging in older SITOP units can cause voltage sag that manifests as random HMI resets or display flickering before complete failure. Replacing a borderline power supply during a planned outage is far less costly than an emergency shutdown.

Within the same control cabinet, the S7-300 CPU module — for example a CPU 315-2 DP (6ES7315-2AH14-0AB0) — and its associated SM321 digital input modules or SM322 digital output modules should be visually inspected for dust accumulation on ventilation slots, loose backplane connector seating, and battery status indicators. The S7-300 memory card and CPU backup battery should be replaced on a defined cycle to prevent program loss during power interruptions.

For cabinets with PROFIBUS networks, the DP network termination resistors at both ends of the bus segment should be verified as active and correctly configured. A faulty termination on a PROFIBUS segment can cause all connected nodes — including the OP177B — to report communication errors simultaneously, creating a misleading fault picture. Keeping a spare PROFIBUS connector with integrated termination resistor (such as a 6ES7972-0BB52-0XA0) in the maintenance kit is a low-cost precaution with high diagnostic value.

Signal isolators and relay output modules in the same electrical circuit as the HMI-controlled outputs should also be checked during the same maintenance window. Relay modules such as the 6ES7132-series ET 200S relay output modules or standalone Phoenix Contact or Weidmüller signal isolators can develop contact wear or drift over time, causing process anomalies that operators attempt to diagnose through the HMI — placing additional stress on the panel’s communication cycle. Addressing these upstream components proactively reduces the diagnostic burden on the HMI and extends its service life.

Strategic Replacement Solutions

The 6AV6642-0DA01-1AX1 is a direct original replacement for the OP177B variant with color display and standard key layout. It replaces earlier OP170B units in the same panel cutout without mechanical modification, making it the preferred upgrade path for facilities that standardized on the 170/177 form factor across multiple production lines. Unlike third-party compatible panels, the original Siemens unit retains full WinCC flexible project compatibility without requiring screen layout adjustments, tag remapping, or communication driver reconfiguration.

For sites managing mixed-generation SIMATIC installations — where some lines run S7-300 and others have migrated to S7-1500 with TP700 Comfort panels — maintaining a stock of 6AV6642-0DA01-1AX1 units specifically for the legacy lines is a sound inventory segmentation strategy. It avoids the risk of cross-applying newer panel firmware to older WinCC flexible projects, which can introduce compatibility issues that delay restart after an emergency replacement.

The original unit also supports the full range of SIMATIC HMI diagnostic functions, including system alarms, trend displays, and recipe management, which are commonly used in food processing, pharmaceutical batch control, and water treatment SCADA architectures. Substituting with a non-original panel in these regulated environments may require revalidation of the HMI application — a process that can take days or weeks. Using the original 6AV6642-0DA01-1AX1 eliminates this compliance risk entirely.

Support FAQ

Q1: Is the 6AV6642-0DA01-1AX1 compatible with my existing WinCC flexible project?
Yes. The OP177B is fully supported by WinCC flexible 2008 SP3 and later. If your project was developed for the OP177B target device, the replacement unit will load and run the existing project without modification. Always verify the firmware version on the replacement unit matches or exceeds the version required by your project file before installation.

Q2: What pre-shipment testing is performed on this unit?
Each unit undergoes power-on functional verification, display integrity check, keypad response test, and communication port continuity check before dispatch. Units are shipped in anti-static packaging with protective foam inserts. A test report is available upon request for quality-controlled procurement environments.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover physical damage caused by incorrect installation voltage, reverse polarity, or environmental exposure beyond the rated IP65 / 50 °C operating limits. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can I use this panel as a direct swap without reprogramming the PLC?
Yes. The OP177B communicates with the PLC via MPI or PROFIBUS DP using the existing project configuration stored on the HMI’s internal flash memory or a compatible memory card. The PLC program does not require modification. After physical installation, restore the WinCC flexible project to the new panel via PC or memory card transfer, verify communication parameters, and resume operation.
