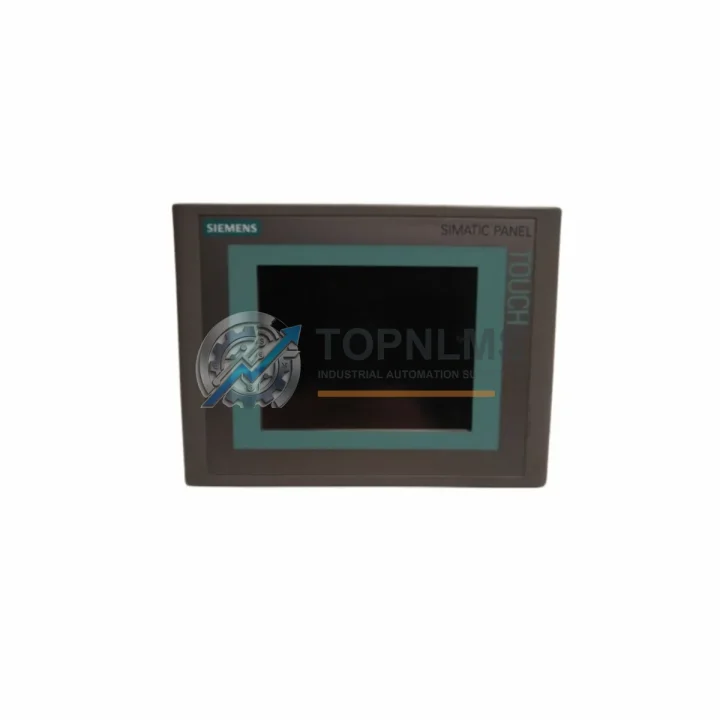

Siemens 6AV6642-0BC01-1AX1 Original Industrial Spare TP177B Compatible: System Stability Through Proven HMI Replacement

In modern industrial automation environments, the Human-Machine Interface (HMI) is the critical bridge between operators and control systems. The Siemens 6AV6642-0BC01-1AX1 SIMATIC TP177B 6″ Touch Panel is a cornerstone component in countless SIMATIC S7-300 and S7-200 PLC-based control architectures across manufacturing, process control, water treatment, and energy sectors. When this panel fails or degrades, the entire production line faces unplanned downtime — a risk that no maintenance team can afford.

Sourced as an original Siemens spare part, the 6AV6642-0BC01-1AX1 is fully compatible with the TP177 series platform and integrates seamlessly into existing SIMATIC control cabinets without firmware reconfiguration or hardware adaptation. Whether you are executing a scheduled replacement during planned maintenance, responding to an emergency panel failure, or building a strategic spare parts inventory, this unit delivers the reliability and compatibility that industrial operations demand.

Critical Technical Specs

Preventive Maintenance Strategy

A failed HMI panel rarely occurs in isolation. In most industrial control cabinets, the TP177B operates alongside a network of interdependent components — and a thorough maintenance inspection should address the entire system, not just the panel itself.

When replacing the 6AV6642-0BC01-1AX1, maintenance engineers should simultaneously inspect the SIMATIC S7-300 CPU module (such as the 6ES7315-2AH14-0AB0) for firmware integrity and battery status, as HMI communication faults are frequently traced back to CPU configuration drift rather than panel hardware failure. The MPI/PROFIBUS DP communication cable connecting the HMI to the PLC rack should be tested for continuity and shielding integrity — degraded cables are a leading cause of intermittent screen freezes and communication timeouts.

The 24V DC power supply module feeding the panel (commonly a SITOP PSU100S or equivalent) should be load-tested during the same maintenance window. Voltage ripple or transient spikes from an aging power supply can shorten the service life of replacement HMI units significantly. Alongside the power supply, inspect the terminal block assemblies and DIN rail-mounted fuse modules within the control cabinet for signs of oxidation, loose connections, or thermal discoloration.

For facilities running mixed SIMATIC architectures, it is also advisable to audit the S7-300 digital I/O modules (such as SM321 input modules and SM322 output modules) that interface with the process being monitored via the HMI. A malfunctioning I/O module can generate false alarms on the HMI display, leading to misdiagnosis of the panel itself. Similarly, signal isolator modules in analog measurement loops should be verified for calibration drift, particularly in high-temperature or high-vibration environments.

If the control system includes a PROFIBUS DP network, this is an ideal time to inspect the DP bus termination resistors and any RS-485 repeater modules in the network segment. Bus topology faults are notoriously difficult to diagnose after the fact and are best caught during planned downtime. Finally, review the CF card or memory card installed in the TP177B — these storage media have finite write cycles and should be replaced proactively every 3–5 years in high-cycle applications to prevent project data loss during panel startup.

Strategic Replacement Solutions

The 6AV6642-0BC01-1AX1 is a proven solution for extending the operational life of legacy SIMATIC control systems without the cost and disruption of a full system migration. Many facilities operating S7-300 or S7-200 based lines face the challenge of maintaining production continuity while their original HMI hardware ages out of Siemens’ active support lifecycle.

This original spare unit allows maintenance teams to execute a direct panel swap — retaining the existing WinCC flexible project file, communication parameters, and tag configurations — without any PLC program modification. The replacement process typically requires less than 30 minutes of skilled technician time, compared to days or weeks required for a full HMI platform migration.

For facilities managing multiple production lines, maintaining one or two units of the 6AV6642-0BC01-1AX1 in on-site spare parts inventory is a cost-effective risk mitigation strategy. The cost of a single unplanned production stoppage — including lost output, emergency logistics, and overtime labor — typically exceeds the cost of maintaining a spare panel inventory by an order of magnitude. Procurement teams should evaluate this unit as part of a broader critical spare parts program aligned with OEM end-of-life schedules and mean-time-between-failure (MTBF) data from the installed base.

All units supplied by TOPNLMS are tested prior to shipment using functional test benches that simulate real PLC communication environments. Each panel is verified for touchscreen calibration, display uniformity, communication port integrity, and power supply tolerance before packaging. Units are shipped in anti-static protective packaging with full documentation.
