Siemens 6AV6641-0AA11-0AX0 Replacement for OP73

Product Overview

Siemens 6AV6641-0AA11-0AX0 Replacement for OP73: Smooth Migration to Modern HMI

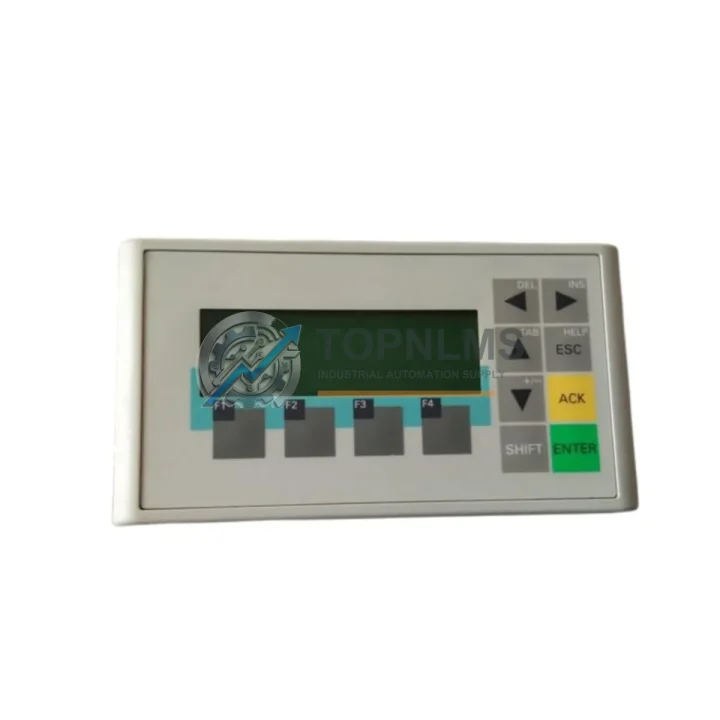

The Siemens 6AV6641-0AA11-0AX0 is a compact operator panel from the SIMATIC OP73 series, widely deployed across manufacturing lines, process control cabinets, and machine-level automation systems. As this model approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams are actively seeking a reliable, drop-in replacement or upgrade path that minimizes engineering rework, preserves existing wiring infrastructure, and avoids extended production downtime.

TOPNLMS supplies the 6AV6641-0AA11-0AX0 as a direct replacement unit and also provides guidance for customers migrating to current-generation SIMATIC HMI platforms. Whether your goal is a like-for-like swap to restore a failed panel or a planned upgrade to a more capable operator interface, this page covers the compatibility details, migration considerations, and procurement assurances you need to make a confident purchasing decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OP73 replacement or migration rarely involves the HMI panel alone. In most retrofit projects, the 6AV6641-0AA11-0AX0 is part of a broader control cabinet ecosystem that includes several interdependent components.

For customers retaining their existing SIMATIC S7-300 or S7-400 PLC backbone, the OP73 replacement is straightforward: the same MPI/PROFIBUS DP communication cable and 24 V DC power feed can be reused without modification. The SIMATIC S7-300 CPU 315-2 DP and CPU 314C-2 DP remain fully compatible with the OP73 protocol stack, meaning no changes to the PLC program or network topology are required.

Where customers are simultaneously upgrading their controller to a SIMATIC S7-1200 or S7-1500 series CPU, the communication architecture shifts from MPI/PROFIBUS to PROFINET. In this scenario, the OP73 must be replaced with a PROFINET-capable panel such as the KTP700 Basic PN or KTP400 Basic PN. The existing SIMATIC ET 200SP or ET 200M distributed I/O modules can typically be retained on the PROFIBUS segment via a PN/DP coupler, preserving field wiring investments.

Power distribution within the control cabinet should also be reviewed during migration. The SITOP PSU100S 24V/5A or SITOP PSU200M power supply modules are commonly found alongside OP73 installations and are fully compatible with replacement HMI panels operating on the same 24 V DC rail. No power infrastructure changes are typically needed.

For sites where the OP73 communicates with third-party controllers or legacy systems via RS-485 or RS-422, a SIMATIC PC Adapter USB A2 or a dedicated CP 5711 communications processor may be required to bridge the protocol gap when migrating to a newer panel. Signal isolation between the HMI and field devices can be maintained using standard SIMATIC signal isolator modules already present in the cabinet.

Customers performing a full cabinet retrofit may also need to address the SIMATIC S7-300 SM 321 digital input module and SM 322 digital output module wiring terminations, particularly if the new HMI introduces additional I/O mapping changes. In most cases, existing terminal blocks and cable ducts can be reused, significantly reducing installation labor.

Retrofit Guidance FAQ

Q: Can I reuse the existing MPI cable when replacing the OP73?
A: Yes. If you are installing a like-for-like 6AV6641-0AA11-0AX0 replacement, the existing MPI cable, connector, and network address settings can be retained without modification. Verify the MPI address on the replacement unit matches the original configuration before powering on.

Q: Do I need to reload the HMI project after swapping the panel?
A: For a direct replacement with the same order number, the project file compiled in WinCC flexible 2008 or ProTool can be transferred via the MPI interface or a USB memory card. No recompilation is required if the hardware configuration is identical.

Q: Will the OP73 replacement fit the existing panel cutout?
A: The 6AV6641-0AA11-0AX0 has a standard cutout of 196 × 141 mm. A direct replacement unit will fit without modification. If upgrading to a larger panel such as the KTP700, a cutout adapter plate or cabinet door modification will be required.

Q: Is PROFIBUS DP communication preserved during replacement?
A: Yes. The OP73 supports PROFIBUS DP at up to 1.5 Mbit/s. A replacement unit with the same order number will maintain full PROFIBUS compatibility with existing S7-300/400 networks without any changes to the network configuration or GSD files.

Q: What programming software is needed to configure the replacement panel?
A: The 6AV6641-0AA11-0AX0 is configured using WinCC flexible 2008 or ProTool. If migrating to a KTP-series panel, TIA Portal V14 or later is required. TOPNLMS can advise on software licensing options upon request.

Warranty Assurance

Every 6AV6641-0AA11-0AX0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, display inspection, communication port integrity check, and keypad response validation.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 business hours of a warranty claim submission.

Units are packaged in anti-static protective materials with foam cushioning to prevent transit damage. Express shipping options are available for urgent replacement requirements, with dispatch typically within 1–3 business days of order confirmation.

For B2B procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, and certificate of conformity upon request. Volume pricing and blanket purchase order arrangements are available for MRO and spare parts programs.
