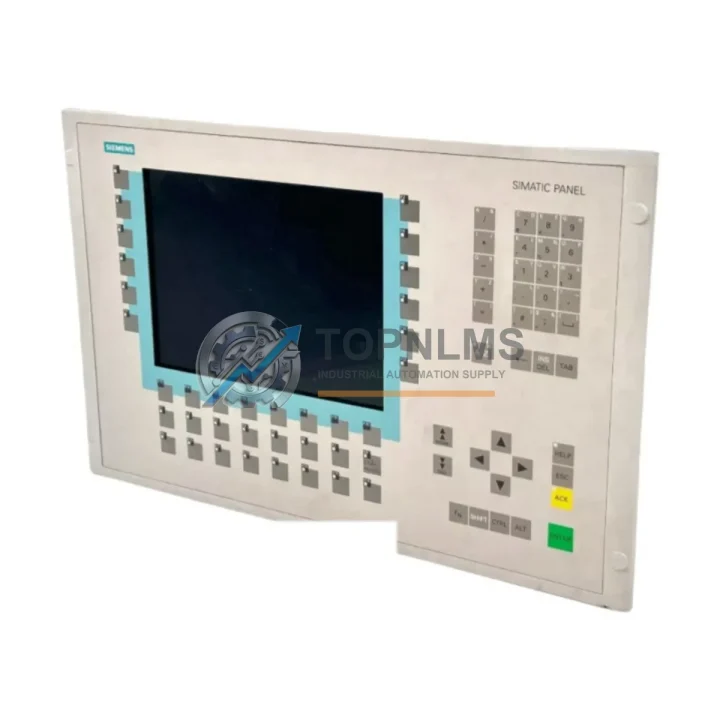

Siemens 6AV6542-0CC10-0AX0 TP270 10″ Replacement Solution

Product Overview

Siemens 6AV6542-0CC10-0AX0 TP270 10″ Replacement Solution: Smooth Transition & Legacy System Compatibility

The Siemens SIMATIC TP270 10″ (6AV6542-0CC10-0AX0) has served as a reliable operator interface across thousands of industrial installations worldwide — from automotive assembly lines to chemical processing plants and discrete manufacturing cells. As Siemens has officially discontinued this model, facilities running aging SIMATIC S5, S7-300, or S7-400 control systems are now facing the critical challenge of sourcing verified replacement units or planning a structured migration to a modern HMI platform.

TOPNLMS maintains verified stock of the 6AV6542-0CC10-0AX0 and offers engineering-backed guidance for both direct replacement and phased upgrade scenarios. Whether your priority is minimizing downtime with a like-for-like swap or executing a controlled migration to the SIMATIC Comfort Panel series, our team supports the full transition lifecycle — from pre-shipment testing to on-site commissioning documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TP270 replacement rarely involves the HMI unit alone. In most retrofit scenarios, the surrounding system architecture requires careful evaluation to ensure the new panel integrates without disrupting production. During the migration process, engineers typically address the following components alongside the 6AV6542-0CC10-0AX0:

For facilities still running Siemens S7-300 controllers with CP 343-1 or CP 342-5 communication processors, the MPI/PROFIBUS connection to the TP270 is typically straightforward to replicate on a replacement unit. However, if the migration path leads toward PROFINET-based communication, the CP 343-1 Advanced or a dedicated IE/PB Link PN IO gateway module may be required to bridge legacy PROFIBUS segments to the new Ethernet backbone.

Power distribution within the control cabinet is another critical consideration. The TP270 draws up to 15 W at 24 V DC, and the existing Siemens SITOP PSU100S 24V/5A or equivalent DIN-rail power supply should be verified for adequate headroom before installation. In cabinets where the power budget is tight — particularly those also housing ET 200S distributed I/O stations or SM 321/SM 322 digital I/O modules — a load calculation review is recommended prior to commissioning.

Screen project migration from ProTool or WinCC flexible to TIA Portal is the most time-intensive element of a full upgrade. For sites that prefer to defer software migration, a direct replacement with a verified 6AV6542-0CC10-0AX0 unit allows the existing WinCC flexible 2008 project to continue running without modification. This approach is particularly valuable in regulated environments — such as pharmaceutical batch processing or food and beverage lines — where revalidation of the HMI application would trigger significant compliance overhead.

In multi-panel installations, the Siemens PC Adapter USB A2 or MPI/PROFIBUS programming cable remains essential for downloading updated screen projects to the TP270. Facilities that have already transitioned their engineering workstations to Windows 10 or Windows 11 should verify driver compatibility with their existing programming cable before the replacement unit arrives on-site.

For applications where the TP270 interfaces with third-party PLCs or drives — such as a Siemens SINAMICS G120 or MICROMASTER 440 variable frequency drive via USS protocol or PROFIBUS — the communication parameter settings (station address, baud rate, telegram type) must be documented from the existing unit before decommissioning. These parameters are stored in the HMI project file and should be backed up using WinCC flexible prior to panel removal.

Cabinet space adaptation is straightforward for like-for-like replacements, as the 6AV6542-0CC10-0AX0 shares the same panel cutout dimensions as the original TP270 10″ series. For facilities upgrading to a larger Comfort Panel, Siemens retrofit mounting frames (available for the TP1200 and TP1500 Comfort series) allow the new panel to be installed in the existing cutout without sheet metal modification, significantly reducing installation time and cabinet downtime.

Retrofit Guidance FAQ

Q: Can I use my existing WinCC flexible 2008 project on a replacement 6AV6542-0CC10-0AX0?
A: Yes. A verified replacement unit of the same SKU accepts the existing project file without modification. Simply connect the programming cable, download the project via WinCC flexible 2008, and the panel will operate identically to the original.

Q: Will the wiring harness from the original TP270 connect directly to the replacement unit?
A: Yes. The 6AV6542-0CC10-0AX0 uses the same 24 V DC power connector and MPI/PROFIBUS sub-D connector pinout as all TP270 10″ variants. No rewiring is required for a direct replacement.

Q: What is the MPI station address range supported by the TP270?
A: The TP270 supports MPI station addresses from 0 to 126. The default address is typically set to 1 for the HMI. Ensure the replacement unit is configured with the same station address as the original before connecting to the MPI network to avoid address conflicts.

Q: Does the replacement unit fit the existing panel cutout?
A: Yes. The 6AV6542-0CC10-0AX0 has a standard panel cutout of 310 × 242 mm. A replacement unit of the same SKU will fit the existing cutout without modification. Mounting clamps and gasket are included.

Q: Can the TP270 communicate with an S7-1200 or S7-1500 PLC?
A: The TP270 does not natively support PROFINET or the S7 communication protocol used by S7-1200/1500. Communication is possible via an MPI/PROFIBUS-to-Ethernet gateway, but this configuration is complex and not recommended for new installations. For S7-1200/1500 systems, migration to a SIMATIC KTP or Comfort Panel is the preferred path.

Q: How long does commissioning typically take for a direct replacement?
A: For a like-for-like swap with an existing project backup, commissioning typically takes 1–2 hours, including panel installation, project download, and functional verification. No PLC program changes are required.

Q: Is the TP270 compatible with PROFIBUS DP networks?
A: Yes. The 6AV6542-0CC10-0AX0 supports PROFIBUS DP as a master or slave, with baud rates up to 12 Mbit/s. Ensure the PROFIBUS termination resistors are correctly configured at both ends of the segment after replacement.

Warranty Assurance

Every 6AV6542-0CC10-0AX0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, display verification, communication port integrity checks, and firmware version confirmation. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, communication parameter configuration, and compatibility verification before and after shipment. Response time for warranty inquiries is within 24 hours on business days.

For urgent replacement requirements — including unplanned production stoppages — TOPNLMS offers expedited shipping from our Xiamen warehouse to destinations across Asia, Europe, and the Americas. Lead time for in-stock units is typically 1–3 business days for international express delivery.

All units are sourced through verified supply channels and are accompanied by documentation confirming origin and inspection status. TOPNLMS does not ship untested or cosmetically damaged units under any circumstances.
