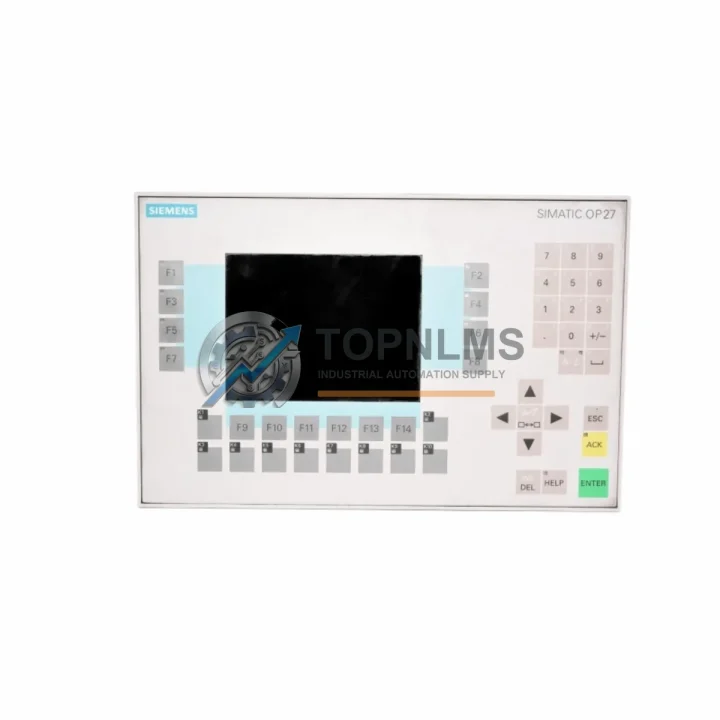

Siemens 6AV3627-1JK00-0AX0 Ruggedized HMI Panel: Industrial Resilience for Harsh Environments

The Siemens 6AV3627-1JK00-0AX0 OP27 is a ruggedized monochrome HMI operator panel engineered for continuous, reliable operation in the most demanding industrial environments. Featuring a 5.7-inch QVGA STN monochrome display and built on Siemens’ proven SIMATIC HMI platform, this operator panel delivers stable human-machine interface performance across high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy production sites. Whether deployed on a continuous process line, a heavy-duty machine cell, or a safety-critical control station, the 6AV3627-1JK00-0AX0 maintains consistent visualization and operator control without compromise.

Designed to integrate seamlessly with Siemens SIMATIC S5 and S7 PLC families, this panel supports MPI and PROFIBUS-DP communication protocols, enabling direct connection to controllers such as the S7-300 and S7-400 series. Its membrane keypad with tactile feedback is rated for millions of actuations, making it ideal for high-cycle operator interactions in steel mills, chemical plants, water treatment facilities, and power generation stations where panel reliability directly impacts production uptime.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6AV3627-1JK00-0AX0 OP27 panel is most effective when deployed as part of a fully integrated SIMATIC control architecture. In a typical control cabinet installation, it works in concert with a SIMATIC S7-300 CPU module — such as the CPU 315-2 DP — communicating over PROFIBUS-DP to exchange process data in real time. Distributed I/O racks using ET 200M or ET 200S remote I/O modules extend the system’s reach to field devices, while SIMATIC S7 SM 321 digital input modules and SM 322 digital output modules handle discrete signal acquisition and actuation across the plant floor.

Power integrity is maintained through SITOP PSU100S 24 V DC power supply units, which provide regulated, filtered DC power to both the OP27 panel and connected PLC racks, suppressing conducted interference that could otherwise corrupt display data or trigger spurious operator alarms. For applications requiring functional safety, the OP27 can coexist in cabinets alongside SIMATIC Safety Integrated components such as the F-CPU 315F-2 PN/DP and associated F-DI/F-DO safety I/O modules, ensuring that the HMI visualization layer remains operational even when safety functions are active.

Communication continuity is further supported by PROFIBUS repeaters and bus connectors rated for industrial EMC environments, preventing signal degradation on long cable runs in electrically noisy facilities such as arc furnace shops or variable-frequency drive (VFD) motor control centers. Where legacy S5 equipment remains in service, the CP 5611 or CP 5512 communication processors bridge the OP27 to older SIMATIC S5 controllers, extending the useful life of existing automation investments. SIMATIC WinCC flexible or ProTool/Pro RT configuration software is used to develop and download screen projects to the panel, enabling rapid adaptation of operator interfaces as process requirements evolve.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the Siemens 6AV3627-1JK00-0AX0 OP27 serves as the primary local operator interface on wellhead control panels, compressor station skids, and pipeline SCADA outstations. Its IP65-rated front panel withstands water jet cleaning and hydrocarbon mist ingress, while its wide operating temperature range accommodates both desert heat and arctic cold in outdoor enclosures. Operators rely on its membrane keypad to acknowledge alarms, adjust setpoints, and navigate process screens without the latency or fragility associated with touchscreen alternatives in gloved-hand environments.

In underground mining operations, the panel’s vibration and shock resistance — validated to IEC 60068-2-6 and IEC 60068-2-27 — ensures continuous readability and input responsiveness on mobile equipment and tunnel boring machine control stations where mechanical stress is constant. Water treatment and wastewater facilities benefit from the panel’s corrosion-resistant enclosure and its ability to display real-time process values — flow rates, pH levels, chlorine dosing rates — from connected SIMATIC S7 PLCs managing pump stations and filtration systems.

Power generation plants, including coal-fired, gas turbine, and hydroelectric stations, deploy the OP27 on auxiliary control panels for boiler feed pumps, cooling water systems, and transformer protection relay interfaces. Its monochrome display, optimized for high-contrast readability under varying ambient light conditions, reduces operator error during shift handovers and emergency response scenarios. In metallurgical plants — rolling mills, continuous casting lines, and electric arc furnace control rooms — the panel’s EMC robustness prevents display corruption caused by the intense electromagnetic fields generated by high-current bus bars and large motor drives.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All Siemens 6AV3627-1JK00-0AX0 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and display or keypad malfunctions not caused by physical damage or improper installation. In the event of a warranty claim, TOPNLMS coordinates replacement or repair logistics directly, minimizing downtime for the end user.

Q2: How is each unit tested before shipment?
Every 6AV3627-1JK00-0AX0 unit undergoes pre-shipment functional verification, including power-on self-test, display pixel integrity check, keypad actuation test, and communication port continuity verification. Units sourced from authorized channels are cross-referenced against Siemens factory serial number records where applicable. Packaging is inspected for transit damage before dispatch, and anti-static protective measures are applied throughout handling.

Q3: Is the 6AV3627-1JK00-0AX0 compatible with my existing SIMATIC S7 or S5 system?
Yes. The OP27 natively supports MPI and PROFIBUS-DP interfaces, making it directly compatible with SIMATIC S7-300, S7-400, and legacy S5 controllers via appropriate communication processors. Configuration is performed using ProTool/Pro RT or WinCC flexible software. If you are migrating from an older OP panel model, existing ProTool projects can often be adapted with minimal rework. Contact our technical team at [email protected] to confirm compatibility with your specific CPU and network topology.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the 6AV3627-1JK00-0AX0 and related SIMATIC HMI components to support both planned maintenance schedules and emergency breakdown replacements. Given that the OP27 series has reached end-of-life status from Siemens, securing verified spare units from a reliable distributor is critical for plants operating legacy SIMATIC systems. We offer expedited shipping options and can provide documentation packages upon request to support your maintenance and procurement records.
