Siemens 6AV3617-1JC20-0AX1 Ruggedized HMI Panel

Product Overview

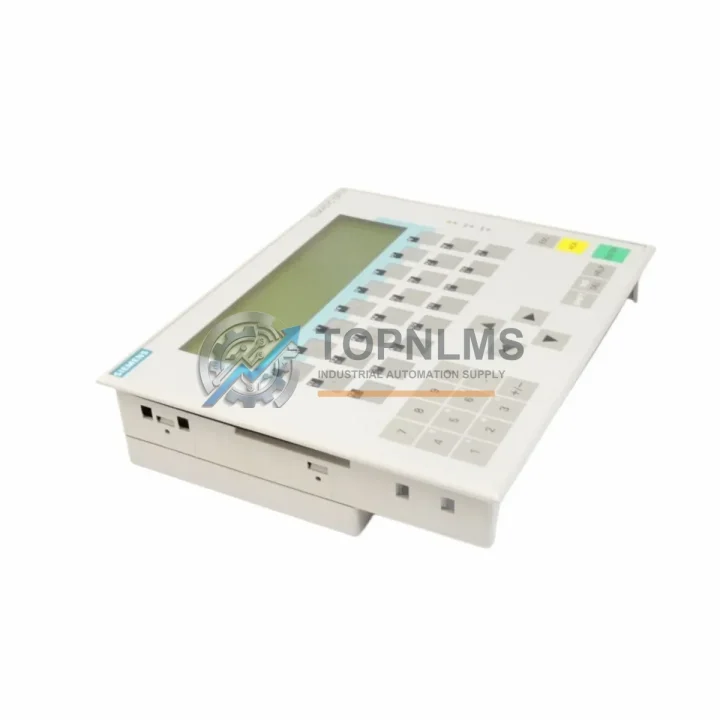

Siemens 6AV3617-1JC20-0AX1 Ruggedized HMI Panel for Harsh Environments

The Siemens 6AV3617-1JC20-0AX1 is a SIMATIC OP17 operator panel engineered for continuous, reliable operation in the most demanding industrial environments. Designed and manufactured in Germany to Siemens’ exacting quality standards, this HMI panel delivers robust human-machine interface performance where conventional panels fail — in high-temperature process areas, high-humidity enclosures, dusty mining galleries, vibration-intensive heavy machinery platforms, and zones subject to intense electromagnetic interference from variable frequency drives, large motors, and power switching equipment.

At its core, the 6AV3617-1JC20-0AX1 communicates via PROFIBUS-DP, the proven fieldbus protocol that underpins countless SIMATIC S7-300 and S7-400 PLC installations worldwide. Its sealed front panel and ruggedized housing allow it to be mounted directly in control cabinet doors on continuous production lines — steel mills, cement plants, petrochemical refineries, water treatment facilities, and power generation stations — without fear of ingress from coolant mist, fine particulate, or corrosive vapors. The membrane keypad and high-contrast display remain legible and responsive even when operators are wearing heavy gloves or working under harsh lighting conditions.

In a typical SIMATIC automation architecture, the OP17 panel serves as the primary local operator interface for a SIMATIC S7-300 CPU, reading process values, displaying alarm states, and accepting operator setpoints without requiring a dedicated PC workstation. This makes it an ideal companion to S7-300 CPUs such as the CPU 315-2 DP or CPU 317-2 DP, where compact, panel-mounted HMI is preferred over rack-mounted solutions. The panel integrates seamlessly with SIMATIC WinCC flexible engineering software, allowing engineers to configure screens, alarm lists, and recipe management from a standard engineering station and download configurations directly over PROFIBUS-DP.

Beyond the core PLC-HMI link, the 6AV3617-1JC20-0AX1 is routinely deployed alongside a broad ecosystem of SIMATIC components. In motor control centers, it monitors and controls SINAMICS G120 variable frequency drives, displaying speed references, fault codes, and energy consumption data in real time. In safety-critical zones, it operates in conjunction with SIMATIC ET 200S distributed I/O stations and SIRIUS 3SK safety relays, providing operators with immediate visual feedback on safety circuit status without requiring a separate safety PLC HMI. Power supply reliability is maintained by SITOP PSU100S 24 V DC power supplies, which provide the stable, filtered DC rail that the OP17 panel requires for uninterrupted operation during mains voltage fluctuations common in heavy industrial facilities.

Communication integrity across long PROFIBUS-DP cable runs — often exceeding 200 metres in large plant installations — is supported by SIMATIC DP/DP couplers and PROFIBUS repeaters, ensuring that the panel’s data exchange with the S7-300 CPU remains error-free even in environments with significant ground potential differences or high-frequency EMI from welding equipment and large transformer banks. Where network topology requires it, SCALANCE X industrial Ethernet switches can bridge PROFIBUS segments to PROFINET backbones, allowing the OP17 panel to coexist with newer SIMATIC S7-1500 controllers in hybrid migration projects.

For installations in classified hazardous areas or outdoor substations, the panel’s sealed construction and wide operating temperature range make it suitable for use within appropriately rated enclosures, complementing SIMATIC ET 200iSP intrinsically safe I/O modules and Ex-rated terminal blocks. In water and wastewater treatment plants, the panel’s resistance to chlorine-laden humid air and its ability to display SCADA-sourced process data make it a preferred choice for pump station control panels, where SIMATIC S7-300 CPUs manage submersible pump sequencing, level control, and alarm annunciation.

Procurement teams sourcing the 6AV3617-1JC20-0AX1 as a spare part or replacement unit will find that TOPNLMS maintains verified stock of this panel, fully tested prior to shipment. Each unit undergoes functional verification — including PROFIBUS-DP communication check, display integrity test, and keypad response validation — before being packaged for dispatch. Orders are processed promptly, with international shipping available to support maintenance teams operating on tight turnaround schedules. Every unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures, providing procurement and maintenance managers with the assurance they need when sourcing critical spare parts for live production systems.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6AV3617-1JC20-0AX1 is most effective when deployed as part of a complete, coordinated SIMATIC control architecture. In a typical S7-300 control cabinet, the OP17 panel works in concert with the SIMATIC S7-300 CPU 315-2 DP as the primary controller, SIMATIC SM 321 digital input modules and SM 322 digital output modules for field I/O, and SIMATIC SM 331 analog input modules for process variable acquisition. Power distribution within the cabinet is handled by SITOP PSU100S 24 V DC power supplies, which provide the clean, regulated supply voltage that both the CPU and the OP17 panel require for stable operation.

For motor control applications, the panel interfaces with SINAMICS G120 drives via PROFIBUS-DP, allowing operators to start, stop, and adjust drive parameters directly from the panel face without opening the drive enclosure — a significant safety advantage in live production environments. SIRIUS 3RV2 motor protection circuit breakers and SIRIUS 3RT2 contactors in the same cabinet are monitored through the S7-300 I/O, with status displayed on the OP17 screen. Where functional safety is required, SIMATIC ET 200S F-modules and SIRIUS 3SK2 safety relays provide the SIL-rated safety functions, with the OP17 panel displaying safety circuit status to operators.

Long-distance PROFIBUS-DP segments connecting the OP17 panel to remote ET 200M or ET 200S distributed I/O stations are protected against signal degradation by SIMATIC PROFIBUS repeaters and DP/DP couplers. In facilities with multiple control zones, SCALANCE X208 industrial Ethernet switches provide the network backbone that ties PROFIBUS islands together under a unified SCADA system, ensuring that the OP17 panel’s local display always reflects the true plant state.

Application in Critical Infrastructure

The Siemens 6AV3617-1JC20-0AX1 has a proven track record in critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences. In oil and gas processing facilities, the panel is mounted in pressurized control rooms and wellhead control panels, providing operators with real-time visibility of separator pressures, flow rates, and valve positions controlled by SIMATIC S7-300 PLCs. Its IP65-rated front panel withstands the hydrocarbon-laden, humid atmosphere common in offshore and onshore processing environments.

In underground mining operations, the OP17 panel is deployed in conveyor drive control panels and ventilation fan control stations, where coal dust, high humidity, and mechanical vibration from blasting and heavy haulage equipment create an exceptionally hostile operating environment. The panel’s sealed membrane keypad and robust housing ensure continued operability without the frequent cleaning and maintenance that open-frame HMI solutions require.

Power generation and transmission facilities — including thermal power stations, hydroelectric plants, and high-voltage substations — rely on the 6AV3617-1JC20-0AX1 for turbine auxiliary control panels, transformer cooling control, and switchgear interlocking displays. The panel’s strong EMC immunity is critical in these environments, where high-voltage switching transients and strong magnetic fields from large power transformers can disrupt less robust HMI equipment. Water and wastewater treatment plants use the panel in pump station control cabinets and chemical dosing control panels, where the combination of high humidity, corrosive chemical vapors, and the need for 24/7 unattended operation demands the highest levels of hardware reliability.

In metallurgical and steel production facilities, the OP17 panel is found in rolling mill drive control panels, furnace temperature control stations, and continuous casting line HMI cabinets, where ambient temperatures near the panel enclosure can approach the upper limits of the panel’s rated operating range and where vibration from rolling equipment is continuous and intense.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Siemens 6AV3617-1JC20-0AX1?
Every 6AV3617-1JC20-0AX1 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the customer, minimizing downtime for your production facility.

Q2: How is each unit tested before shipment?
Each 6AV3617-1JC20-0AX1 undergoes a pre-shipment functional verification process that includes power-on testing, PROFIBUS-DP communication validation, display integrity inspection, and full keypad response testing. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the 6AV3617-1JC20-0AX1 compatible with my existing SIMATIC S7-300 installation?
Yes. The 6AV3617-1JC20-0AX1 is a direct replacement for any existing SIMATIC OP17 installation using PROFIBUS-DP or MPI communication. It is compatible with SIMATIC S7-300, S7-400, and legacy S5 controllers (via appropriate communication modules). Existing WinCC flexible or ProTool project files can be downloaded to the replacement panel without modification, enabling rapid like-for-like replacement with minimal engineering effort.

Q4: Can TOPNLMS support long-term or repeat supply of this panel?
TOPNLMS maintains ongoing stock of the 6AV3617-1JC20-0AX1 and related SIMATIC OP17 series components to support customers with planned maintenance programs, emergency spare part requirements, and multi-site rollout projects. For customers requiring guaranteed availability over extended periods, framework supply agreements can be arranged. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your specific supply requirements.
