Siemens 6AV3607-1JC20-0AX1 Replacement for SIMATIC OP7: Seamless Transition & Legacy System Upgrade

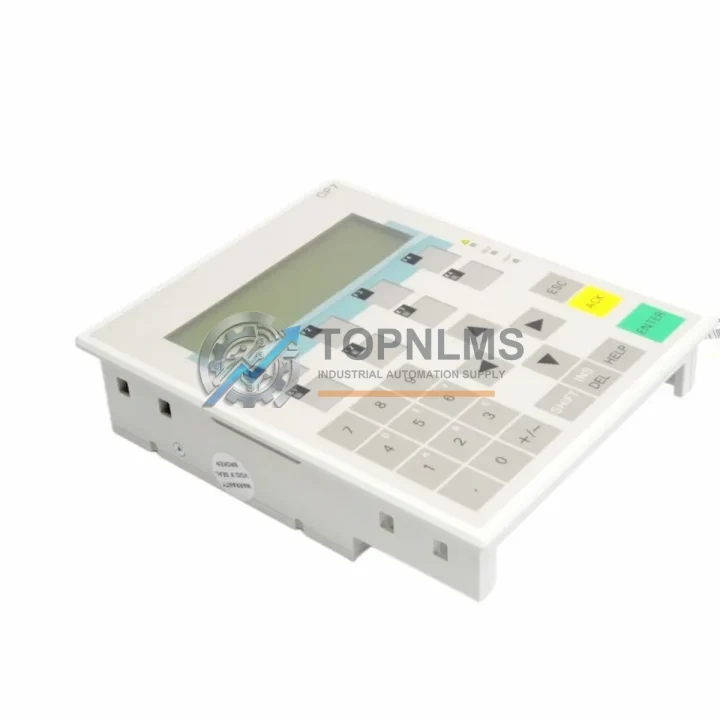

The Siemens 6AV3607-1JC20-0AX1 is a SIMATIC OP7 series operator panel that has reached end-of-life status in Siemens’ active product portfolio. For facilities running S7-300 or S7-400 PLC systems that still depend on this HMI for machine-level visualization and operator input, sourcing a verified replacement unit — or planning a structured upgrade path — is a critical operational priority. TOPNLMS supplies tested, ready-to-ship 6AV3607-1JC20-0AX1 units and provides technical guidance to help engineering teams execute a smooth migration with minimal production interruption.

The OP7 panel communicates via the MPI (Multi-Point Interface) protocol, which is native to the SIMATIC S7-300 and S7-400 controller families. Its 4-line text display, function keys, and membrane keypad were designed for straightforward process monitoring and parameter entry in compact control cabinet installations. When this unit fails or becomes unavailable, the replacement strategy must account for wiring pinout compatibility at the MPI port, the existing ProTool or WinCC flexible project file, cabinet cutout dimensions, and the 24 VDC power supply connection — all of which are preserved in a like-for-like swap using a verified 6AV3607-1JC20-0AX1 unit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OP7 replacement rarely involves the HMI panel alone. In most S7-300 and S7-400 installations, the operator panel is one node in a broader control architecture that includes the CPU module, I/O expansion racks, and communication infrastructure. When planning a retrofit or upgrade, engineering teams typically need to assess the following components alongside the 6AV3607-1JC20-0AX1:

The MPI programming cable (PC Adapter USB) is essential for re-downloading the operator project to the replacement OP7 panel and for verifying the MPI network address assignment. If the existing cable is damaged or incompatible with the current engineering workstation, sourcing a replacement cable before the panel swap prevents unnecessary delays during commissioning.

In installations where the S7-300 CPU — such as a CPU 315-2 DP (6ES7315-2AH14-0AB0) or CPU 314C-2 DP — is also approaching end-of-life, it is advisable to evaluate the CPU’s firmware version and memory card status at the same time. A failed CPU memory card (e.g., MMC 64 KB, 6ES7953-8LF31-0AA0) can prevent the PLC program from loading after a panel swap, causing extended downtime that is unrelated to the HMI itself.

For systems using distributed I/O over PROFIBUS DP — such as ET 200M (IM 153-2) or ET 200S remote I/O stations — the MPI/PROFIBUS network topology should be verified before the replacement panel is installed. The OP7’s MPI address must not conflict with existing nodes on the bus, and the terminating resistors at both ends of the MPI segment must be correctly set.

If the upgrade path leads to a modern panel such as the SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0) or KTP700 Basic, the project must be migrated from ProTool or WinCC flexible to TIA Portal’s WinCC Basic. This migration also requires verifying that the S7-300 CPU supports the communication driver used by the new panel — typically PROFINET or PROFIBUS DP rather than MPI. In such cases, a CP 343-1 Lean (6GK7343-1CX10-0XE0) PROFINET communication processor may need to be added to the S7-300 rack to support the new HMI’s Ethernet connection.

Power supply integrity is another common failure point in aging control cabinets. A SITOP PSU100S 24V/5A (6EP1333-2BA20) or equivalent 24 VDC regulated power supply should be inspected or replaced as part of the retrofit to ensure stable voltage delivery to both the replacement OP7 panel and the PLC rack. Voltage fluctuations are a leading cause of premature HMI failure in industrial environments.

Finally, for installations where signal isolation between field devices and the control system is required, SIMATIC signal isolators or SITRANS signal conditioners may be present in the cabinet. These should be documented and verified as part of the overall system audit before the panel replacement is executed.

Retrofit Guidance FAQ

Q: Can I swap the 6AV3607-1JC20-0AX1 without reprogramming the panel?
A: Yes, if the replacement unit is unformatted or has been factory-reset, you can download the existing ProTool project directly from the engineering PC using the MPI programming cable. If the original project file is unavailable, the panel can be uploaded from the original unit before it is removed, provided it is still partially functional.

Q: Will the MPI wiring need to be changed?
A: No. The 6AV3607-1JC20-0AX1 uses a standard 9-pin sub-D MPI connector. A direct replacement unit uses the same connector and pinout, so the existing cable can be reused without modification.

Q: What is the MPI address default on a replacement unit?
A: The default MPI address is typically 1. You must set it to match the address configured in the PLC project (usually address 1 for OP panels, but this varies by installation). Address configuration is done via the panel’s startup menu before the project is downloaded.

Q: Does the replacement panel fit the existing cabinet cutout?
A: Yes. A direct 6AV3607-1JC20-0AX1 replacement uses the same panel cutout dimensions as the original OP7. No mechanical modification to the cabinet door is required.

Q: Is the replacement unit compatible with WinCC flexible projects?
A: The OP7 panel is primarily programmed with ProTool. WinCC flexible can also target OP7 panels in compatibility mode. If your project was created in WinCC flexible, verify the target device setting before downloading to the replacement unit.

Q: What if I want to upgrade to a modern touchscreen HMI instead?
A: The SIMATIC KTP400 Basic or KTP700 Basic are the recommended modern replacements. These panels require a TIA Portal WinCC Basic license and a PROFIBUS DP or PROFINET connection to the PLC. Cabinet cutout modification and project migration are required, but the upgrade delivers a significantly improved operator experience and long-term software support.

Warranty Assurance

Every 6AV3607-1JC20-0AX1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, display backlight check, keypad response verification, and MPI port continuity testing. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a full refund — whichever the customer prefers. Our after-sales response time is within 24 hours on business days. Warranty claims are processed via email at [email protected] with photographic evidence of the fault.

For urgent production-down situations, TOPNLMS maintains ready stock of high-demand Siemens SIMATIC components and can arrange expedited shipping from Xiamen, China to most global destinations within 3–5 business days via DHL Express or FedEx International Priority. A tracking number is provided within 24 hours of payment confirmation.

Purchasing from TOPNLMS means working with a specialist supplier focused exclusively on industrial automation components — not a general electronics distributor. Our team understands the urgency of control system failures and the technical requirements of SIMATIC platform migrations. We are here to support your procurement decision with accurate product information, fast fulfillment, and reliable after-sales service.
