Siemens 6AV3503-1DB10 Ruggedized HMI Panel for Harsh Environments

Product Overview

Siemens 6AV3503-1DB10 Ruggedized HMI Panel for Harsh Environments

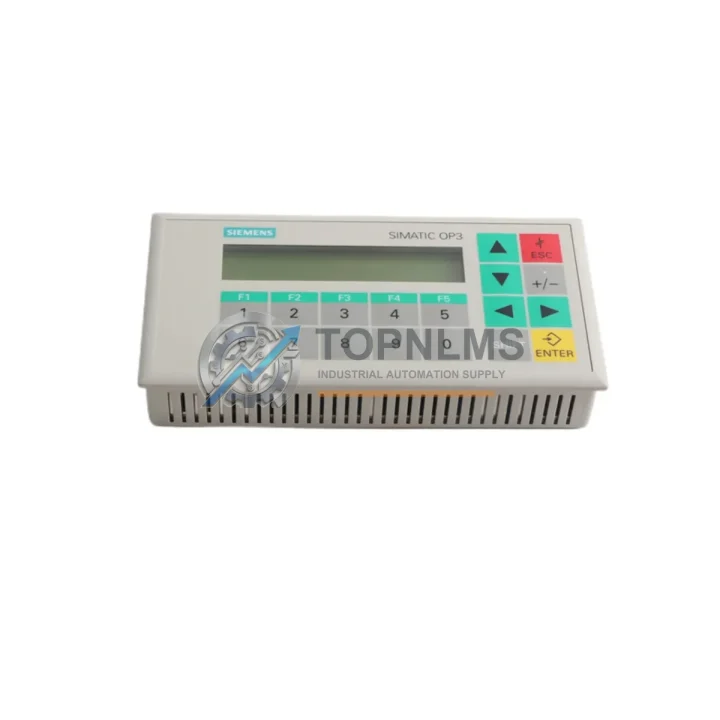

The Siemens 6AV3503-1DB10 is a SIMATIC OP3 text-based operator panel engineered for demanding industrial environments where reliability is non-negotiable. Designed to operate continuously under conditions of high temperature, elevated humidity, airborne dust, mechanical vibration, and electromagnetic interference, this HMI panel delivers stable human-machine interface performance across the full lifecycle of critical production systems. Whether deployed on a continuous process line, integrated into a control cabinet alongside a SIMATIC S7-300 PLC, or mounted at a remote field station in a heavy industrial facility, the 6AV3503-1DB10 maintains consistent communication and display integrity where lesser panels fail.

Powered by a 24 VDC supply and equipped with both MPI and PPI interfaces, the OP3 integrates seamlessly into Siemens SIMATIC automation architectures. It communicates natively with SIMATIC S7-200, S7-300, and S7-400 PLCs, as well as legacy SIMATIC S5 systems via appropriate protocol adapters. Its compact, panel-mount form factor makes it an ideal operator interface for space-constrained control cabinets, junction boxes, and field enclosures in oil and gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6AV3503-1DB10 is most effective when deployed as part of a fully integrated Siemens SIMATIC control architecture. In a typical control cabinet installation, the OP3 panel interfaces directly with a SIMATIC S7-300 CPU 314C-2 DP or CPU 315-2 PN/DP via the MPI bus, providing operators with real-time process visibility without requiring a dedicated SCADA workstation. Alongside the PLC, a SIMATIC ET 200S distributed I/O station handles field-level signal acquisition, while a SITOP PSU100S 24V/10A power supply module ensures stable, filtered DC power delivery to the entire panel — critical in environments where mains voltage fluctuations are common.

In high-vibration or high-EMI environments such as mining conveyors or steel rolling mills, the OP3 is typically paired with SIMATIC S7-300 SM 321 digital input modules and SM 322 digital output modules for robust I/O expansion. Communication integrity on the MPI/PPI bus is maintained through proper cable shielding and the use of PROFIBUS DP bus connectors (6ES7972-0BA52-0XA0), which provide reliable termination and reduce signal reflection in long cable runs. Where safety-rated control is required, a SIRIUS 3SK1 safety relay module can be integrated into the same cabinet, with the OP3 providing operator acknowledgment and status display for safety circuit states.

For installations requiring remote diagnostics or network connectivity, the OP3 is commonly used alongside a SIMATIC CP 343-1 Ethernet communication processor or a CP 341 serial communication module, enabling the S7-300 host to bridge between the local MPI network and plant-level Ethernet or PROFIBUS DP backbones. Terminal connections within the cabinet are managed using WAGO 750-series or Phoenix Contact CLIPLINE terminal blocks, ensuring secure, vibration-resistant wiring that meets industrial installation standards.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the Siemens 6AV3503-1DB10 is deployed at wellhead control panels and pipeline pump stations where operators require a compact, readable interface for monitoring pressure setpoints, valve positions, and alarm states. Its IP65-rated front panel withstands washdown procedures and exposure to hydrocarbon vapors in non-classified zones, while its MPI interface maintains reliable communication with the host S7-300 PLC even in the presence of strong electromagnetic fields generated by variable frequency drives (VFDs) and high-current motor starters.

In mining and mineral processing operations, the OP3 is mounted on crusher control panels, conveyor drive cabinets, and flotation cell control stations. The panel’s resistance to vibration and shock — inherent in the SIMATIC OP3 mechanical design — ensures that display and keypad functions remain fully operational despite the constant mechanical stress of heavy equipment operation. Dust ingress protection at IP65 prevents particulate contamination from affecting internal electronics, extending mean time between failures (MTBF) in environments where maintenance access is infrequent.

In power generation and electrical substation applications, the 6AV3503-1DB10 provides local operator interface capability for generator control panels, transformer protection relay cabinets, and auxiliary system controllers. Its wide operating voltage range (18–30 VDC) accommodates the voltage variations typical of battery-backed DC distribution systems in substations. In water and wastewater treatment plants, the OP3 is used at pump station control panels and chemical dosing skids, where its sealed front face prevents moisture ingress during routine hosing of process areas.

In metallurgy and steel production environments — among the most demanding in industrial automation — the OP3 operates reliably in the vicinity of induction furnaces, arc furnaces, and rolling mill drives, all of which generate intense electromagnetic interference. Proper cabinet grounding, shielded MPI cabling, and the OP3’s inherent EMC compliance combine to ensure uninterrupted operator interface functionality throughout continuous production campaigns.
