Siemens 6AV2181-8XP00-0AX0 HMI SD Card 2GB Upgrade

Product Overview

Siemens 6AV2181-8XP00-0AX0 HMI SD Card 2GB Upgrade: Seamless Transition & Legacy System Compatibility

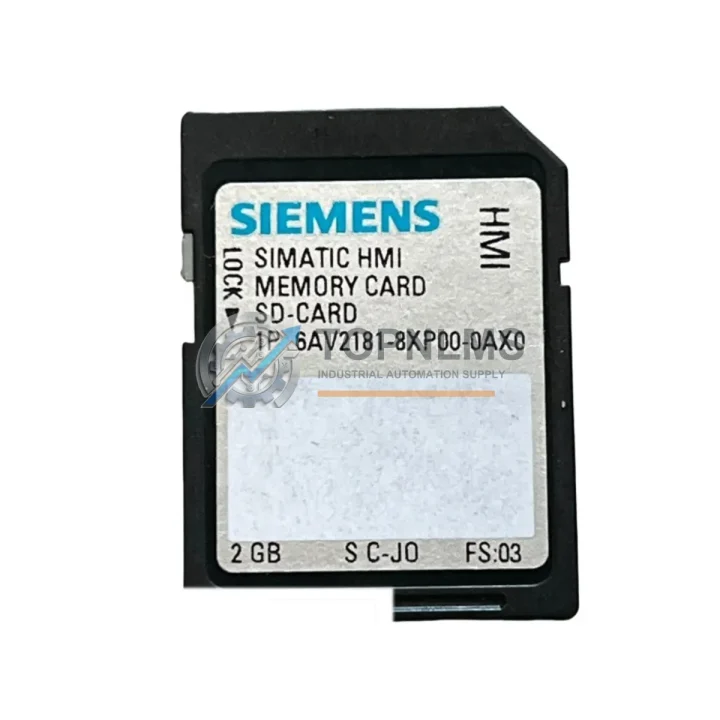

The Siemens 6AV2181-8XP00-0AX0 is a 2 GB SIMATIC HMI SD memory card engineered for use across the full range of Siemens SIMATIC HMI operator panels, including the TP700 Comfort, TP900 Comfort, MP277, MP377, and KTP series. As industrial facilities accelerate their migration away from aging visualization platforms and discontinued storage media, this SD card serves as the definitive drop-in replacement and upgrade solution — preserving project data, recipe files, alarm logs, and runtime archives without requiring panel replacement or software re-engineering.

For plants currently operating legacy SIMATIC HMI panels with older CF cards, proprietary flash modules, or first-generation SD cards that are no longer available through standard supply chains, the 6AV2181-8XP00-0AX0 provides a fully compatible upgrade path. The card is formatted and certified to Siemens SIMATIC specifications, ensuring that WinCC flexible projects and TIA Portal-based HMI configurations load correctly on first boot — eliminating the trial-and-error risk associated with generic industrial SD cards.

During a typical HMI modernization project, engineers replacing a Siemens MP277 10″ or MP377 15″ panel with a current-generation TP1200 Comfort or TP1500 Comfort panel will find that the 6AV2181-8XP00-0AX0 supports seamless project migration: the existing WinCC Flexible archive is exported, the TIA Portal project is compiled and transferred to the new panel via SIMATIC ProSave or the TIA Portal transfer function, and the SD card serves as the primary backup and restore medium throughout commissioning. This eliminates the need for a dedicated programming PC to remain on-site after handover.

In distributed control architectures where a Siemens S7-1500 PLC or S7-300 CPU communicates with multiple HMI stations over PROFINET or MPI, the integrity of the HMI memory card is critical to maintaining alarm history continuity and recipe synchronization across production lines. The 6AV2181-8XP00-0AX0 supports the full data logging and recipe management functions of WinCC (TIA Portal), ensuring that process data recorded at the panel level remains accessible even during PLC firmware updates or network reconfiguration events.

For facilities upgrading from older Siemens OP270 or TP270 panels — which relied on CompactFlash or proprietary memory modules — to current Comfort panel generations, the SD card format standardization introduced with the SIMATIC Comfort series means that a single 6AV2181-8XP00-0AX0 card can serve as the project backup medium, the runtime data store, and the firmware update carrier simultaneously. This consolidation reduces spare parts inventory complexity and simplifies the documentation requirements for IEC 62443-compliant control system change management.

When integrating the replacement panel into an existing control cabinet alongside a Siemens SITOP PSU100S 24V DC power supply and a Siemens ET 200SP distributed I/O station, the physical installation of the 6AV2181-8XP00-0AX0 requires no tools: the card inserts directly into the SD slot on the rear of the panel, and the SIMATIC operating system detects and mounts the card automatically on power-up. No jumper settings, DIP switches, or configuration menus are required to activate the card.

For OEM machine builders and system integrators managing multi-site rollouts of standardized HMI configurations, the 6AV2181-8XP00-0AX0 supports cloning workflows: a master project image is written to one card, verified on a reference panel, and then duplicated to additional cards for deployment across identical machine cells. This approach is fully supported by the SIMATIC ProSave backup/restore utility and reduces commissioning time per station from hours to minutes.

Procurement teams evaluating this part as a replacement for discontinued or end-of-life Siemens memory accessories should note that the 6AV2181-8XP00-0AX0 is the current active catalog part number for the 2 GB SIMATIC HMI SD card. It supersedes earlier 512 MB and 1 GB variants and is backward compatible with all SIMATIC HMI panels that support the SD card form factor. Panels requiring the older Siemens 6AV6671-8XB00-0AX0 CF card format are not compatible with this SD card and require a panel-level upgrade to transition to SD-based storage.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete HMI modernization project rarely involves a single component. When replacing or upgrading the memory card in a SIMATIC HMI panel, the following components are commonly required in parallel to ensure a fully functional, production-ready system:

For panels communicating over MPI or PROFIBUS DP with a legacy Siemens S7-300 CPU 315-2 DP, engineers should verify that the HMI project’s communication driver is updated to reflect the current CPU firmware version before writing the project to the new SD card. Where the control architecture is being migrated to PROFINET, a Siemens CP 343-1 Ethernet communication processor may be required to bridge the S7-300 rack to the PROFINET network that the new Comfort panel expects.

In control cabinets where the HMI panel is mounted alongside a Siemens SINAMICS G120 variable frequency drive, the SD card’s recipe and parameter management functions can be used to store drive parameter sets, enabling rapid drive replacement without a laptop or Starter software on-site. This is particularly valuable in multi-drive applications where the SINAMICS G120 CU240E-2 control unit parameters must be replicated across several identical drive stations.

For projects involving distributed I/O expansion, a Siemens ET 200SP IM 155-6 PN interface module is typically installed in the same control cabinet as the HMI panel, with the SD card storing the I/O configuration backup. When the ET 200SP station is replaced or expanded with additional Siemens ET 200SP DI 8x24VDC digital input modules, the HMI project stored on the 6AV2181-8XP00-0AX0 can be updated and redeployed without interrupting the PLC program running on the S7-1500 controller.

Where the HMI panel is powered from a Siemens SITOP PSU200M 24V/10A stabilized power supply, engineers should confirm that the panel’s 24V DC supply remains within specification during SD card write operations, as voltage dips during data logging can cause file system corruption. A Siemens SITOP UPS1600 buffer module is recommended for panels in environments with unstable power quality.

Finally, for initial project transfer and commissioning, a Siemens USB/MPI programming cable (PC Adapter USB) or a standard Ethernet crossover connection is used to download the TIA Portal project to the panel before the SD card takes over as the runtime data store. Having the 6AV2181-8XP00-0AX0 pre-installed before the first project download ensures that data logging begins immediately from first power-on.

Retrofit Guidance FAQ

Q: Can I use the 6AV2181-8XP00-0AX0 to replace the CompactFlash card in my MP277 panel?
A: No. The MP277 uses a CompactFlash slot on some hardware revisions and an SD slot on others. Check the rear panel label: if the slot is labeled “SD”, the 6AV2181-8XP00-0AX0 is a direct replacement. If the slot is labeled “CF”, you require the 6AV6671-8XB00-0AX0 CF card or a panel hardware upgrade.

Q: Will my existing WinCC Flexible project load correctly from the new SD card?
A: Yes, provided the project was compiled with WinCC Flexible 2008 SP3 or later, or with TIA Portal V13 or later. Use SIMATIC ProSave to back up the existing project from the old card, then restore it to the 6AV2181-8XP00-0AX0. No recompilation is required for a like-for-like panel replacement.

Q: Does the card support PROFINET and PROFIBUS communication configurations?
A: The SD card is a storage medium and does not participate in network communication. However, the HMI project stored on the card includes all communication driver configurations — PROFINET, PROFIBUS DP, MPI, and Ethernet/IP — which are loaded at panel startup. No additional configuration of the card itself is required.

Q: What is the physical installation procedure?
A: Power down the HMI panel. Insert the 6AV2181-8XP00-0AX0 into the SD card slot on the rear of the panel until it clicks into place. Power on the panel. The SIMATIC operating system will detect the card automatically. If the card contains a valid project image, the panel will boot directly into the runtime. No tools, jumpers, or menu configuration are required.

Q: Can I use this card to clone a project across multiple identical panels?
A: Yes. Use SIMATIC ProSave to create a full backup image from the master panel onto the 6AV2181-8XP00-0AX0. Insert the card into each target panel and use the ProSave restore function or the panel’s built-in restore menu to deploy the project. This workflow is supported on all SIMATIC Comfort and Basic panels.

Q: What happens to alarm logs and recipe data during the card replacement?
A: Alarm logs and recipe data stored on the old card must be exported before replacement using SIMATIC ProSave or the panel’s data management menu. After restoring the project to the new 6AV2181-8XP00-0AX0, import the exported data files. Data stored in the PLC (S7-1500 or S7-300 data blocks) is unaffected by the HMI card replacement.

Warranty Assurance

Every Siemens 6AV2181-8XP00-0AX0 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including read/write integrity testing and SIMATIC HMI compatibility confirmation. Units that fail to perform as specified within the warranty period are replaced or refunded at no additional cost to the buyer.

TOPNLMS maintains in-stock inventory of the 6AV2181-8XP00-0AX0 to support urgent replacement requirements. Orders confirmed before the daily cut-off are processed for same-day or next-business-day dispatch from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on destination and urgency.

For B2B procurement teams requiring documentation, TOPNLMS provides a commercial invoice, packing list, and certificate of conformity with every shipment. Customs HS code 8523.51 applies to this product for import classification purposes. Volume pricing and blanket order arrangements are available for MRO and OEM customers with recurring demand.
