Siemens 535-2088-05 Replacement for Simovert P 6SE35: Smooth Migration & Legacy VFD Upgrade

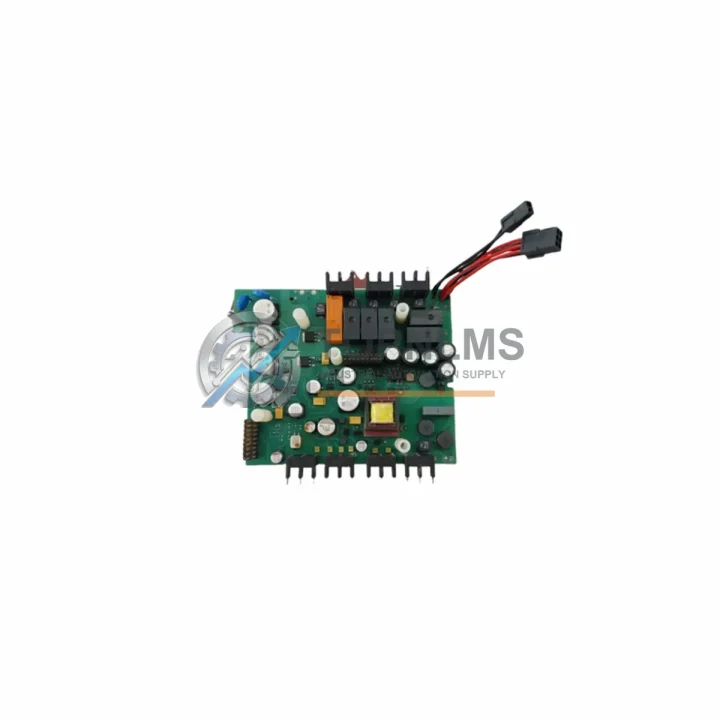

The Siemens 535-2088-05 is the gate firing board (also referred to as a pulse amplifier or firing card) used in the Simovert P 6SE35 series AC variable frequency drives. As the 6SE35 platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source reliable replacement boards or plan a structured migration to a supported drive platform. TOPNLMS supplies tested, verified 535-2088-05 boards from stock, and also supports customers through full retrofit assessments for sites still operating legacy Simovert P installations.

The 535-2088-05 gate firing board is responsible for translating the PWM control signals from the main control card into precise IGBT or thyristor gate pulses. Failure of this board typically manifests as overcurrent trips, asymmetric phase output, or complete drive shutdown. Because the 6SE35 series was designed for medium-voltage and high-power industrial applications — including compressors, pumps, fans, and conveyor systems — unplanned downtime caused by a failed firing board can have significant production impact. Having a verified replacement on the shelf is the most effective risk mitigation strategy.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 535-2088-05 replacement is rarely an isolated action. In most Simovert P 6SE35 installations, the gate firing board works in close coordination with the 6SE35 main control board and the 6SE35 power supply board. If the firing board has failed due to a power surge or sustained overcurrent event, it is advisable to inspect the associated IGBT driver modules and the DC bus capacitor bank within the same drive chassis before returning the unit to service.

For sites planning a broader migration away from the Simovert P platform, the Sinamics G150 or Sinamics S150 cabinet drives represent the current Siemens successor platform for high-power variable speed applications. These drives use PROFIBUS DP or PROFINET IO as their primary fieldbus, which may require updating the existing PROFIBUS DP communication module or adding a PROFINET adapter if the plant DCS or PLC — such as a Simatic S7-300 or Simatic S7-400 — currently communicates via USS protocol or a proprietary Simovert P serial link.

During the transition period, many engineers choose to maintain the existing 6SE35 drive in service while staging the new drive alongside it. In this scenario, the 6SE35 operator panel (OP1S) and any existing SIMOVIS PC interface cable remain useful for parameter backup and fault diagnostics. Terminal wiring to the motor — typically 3-phase power cables and a PTC thermistor circuit — is generally reusable without modification when migrating to a same-voltage-class successor drive.

For I/O-intensive applications, the existing analog input/output terminal board within the 6SE35 may need to be mapped to the new drive’s I/O configuration. Signal isolators or signal conditioning modules are sometimes required when the reference signal source (4–20 mA or 0–10 V from a DCS analog output card) has a different common-mode voltage than the new drive’s input stage. TOPNLMS can advise on signal interface compatibility as part of the pre-sales technical review.

Retrofit Guidance FAQ

Q: Can I replace the 535-2088-05 without reprogramming the drive?
A: Yes. The 535-2088-05 is a hardware board with no user-configurable firmware. Replacing it with a verified unit of the same part number requires no parameter changes to the drive. All drive parameters remain stored in the main control board’s non-volatile memory.

Q: Do I need to disconnect motor wiring during the board swap?
A: The drive must be fully de-energized, DC bus discharged, and locked out before any internal board work. Motor wiring at the output terminals does not need to be disconnected for a firing board replacement, but safe isolation of the entire drive is mandatory.

Q: Is the 535-2088-05 compatible with all power ratings in the 6SE35 series?
A: The 535-2088-05 is specific to certain power ranges within the 6SE35 family. Please confirm your drive’s full type designation (e.g., 6SE3521-xxx or 6SE3532-xxx) to verify exact board compatibility before ordering.

Q: What communication protocols does the 6SE35 support, and are they preserved after a board swap?
A: The Simovert P 6SE35 supports USS protocol over RS-485 and, in some configurations, PROFIBUS DP via an optional communication board. A firing board replacement does not affect the communication configuration, which is managed by the main control board.

Q: Can TOPNLMS support a full site survey for migrating multiple 6SE35 drives?
A: Yes. TOPNLMS provides pre-sales technical consultation for multi-drive migration projects. Contact our engineering team with your drive inventory list and we will prepare a compatibility and replacement roadmap.

Warranty Assurance

Every 535-2088-05 gate firing board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including gate signal output testing and visual inspection for component damage, corrosion, or prior repair. Boards that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS will arrange replacement dispatch within 3 business days of fault confirmation. Our after-sales team is reachable by email and phone for technical support during installation and commissioning. We maintain stock of 535-2088-05 and related 6SE35 spare boards to support rapid response for urgent breakdown situations.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and test report with every shipment. Export documentation for international orders is prepared in compliance with Chinese customs regulations. Typical lead time from order confirmation to shipment is 1–3 business days for in-stock items.
