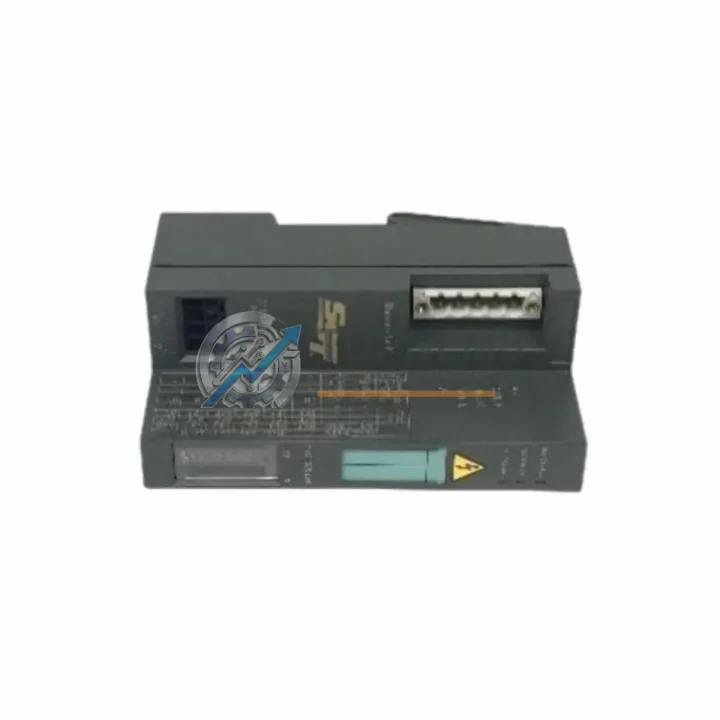

SIEMENS 5136-DNS-200S Original Industrial Spare SST Compatible

Product Overview

SIEMENS 5136-DNS-200S Original Industrial Spare SST Compatible: System Stability & Maintenance Value

The SIEMENS 5136-DNS-200S is an original SST-series DeviceNet Slave Adapter Card designed for PC-based industrial control architectures. In manufacturing environments where DeviceNet fieldbus networks underpin machine-level I/O communication, this module serves as a critical link between the host PC interface and the DeviceNet network. Its failure — or the absence of a verified spare — can bring an entire production line to a halt. Stocking the 5136-DNS-200S as a ready-to-deploy replacement is one of the most cost-effective decisions a maintenance team can make.

Whether you are managing a legacy SIEMENS automation system, extending the service life of an existing DeviceNet architecture, or building a preventive maintenance inventory for a multi-line facility, the 5136-DNS-200S delivers the original firmware compatibility, electrical specification conformance, and plug-in reliability that aftermarket alternatives cannot guarantee. Every unit shipped from TOPNLMS undergoes pre-shipment functional verification and is covered by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A DeviceNet communication failure rarely occurs in isolation. When the 5136-DNS-200S is flagged during a scheduled inspection or post-fault diagnosis, experienced maintenance engineers know to treat it as a signal to audit the broader communication and power infrastructure of the control cabinet. A systematic approach significantly reduces the risk of repeat downtime.

Begin with the DeviceNet trunk cable and drop cable assemblies — degraded shielding or loose termination resistors at either end of the network segment are a leading cause of intermittent communication faults that are often misattributed to the adapter card itself. Simultaneously, inspect the DeviceNet power supply tap (typically a 24 VDC network power supply) for voltage sag under load, as under-voltage conditions accelerate adapter card wear.

Within the same control cabinet, verify the condition of the SIEMENS SST-DN3-104-2 or equivalent DeviceNet master card if the 5136-DNS-200S is operating in slave mode — master-slave communication integrity depends on both ends of the link being within specification. If the system includes SIEMENS S7-300 or S7-400 series I/O modules connected downstream via DeviceNet, this is the right moment to confirm their firmware versions and check for any pending diagnostic alarms.

For facilities running mixed fieldbus architectures, also inspect PROFIBUS DP communication modules and PROFINET interface cards within the same rack — cross-network gateway modules are often overlooked during DeviceNet-specific maintenance windows. Check the 24 VDC power supply modules feeding the I/O backplane; a marginal power supply is one of the most common root causes of sporadic communication module resets.

Terminal blocks and Phoenix Contact or Weidmüller-style screw terminal strips on the DeviceNet segment should be torque-checked — loose connections introduce resistance that degrades signal integrity at higher baud rates. If the control system includes an HMI panel (such as a SIEMENS TP700 or TP900 Comfort series) communicating over the same network backbone, verify its communication driver version is compatible with the restored adapter card firmware. Finally, review the status of any signal isolators or surge protection modules on the DeviceNet trunk — these are consumable protection components that should be replaced on a scheduled basis regardless of apparent condition.

Stocking the 5136-DNS-200S alongside these associated components as a coordinated spare kit transforms a reactive repair event into a planned, rapid-recovery procedure — typically reducing mean time to repair (MTTR) from hours to under 30 minutes.

Strategic Replacement Solutions

The 5136-DNS-200S was designed for an era when ISA-bus PC interfaces were the standard integration point for DeviceNet fieldbus networks in industrial PCs and embedded controllers. Many facilities continue to operate these architectures because the cost and risk of a full control system migration outweigh the benefits — particularly in stable, high-uptime production environments.

TOPNLMS sources original 5136-DNS-200S units to support exactly this scenario: maintaining system continuity without forcing a premature platform upgrade. The original adapter card preserves full compatibility with existing DeviceNet configuration software, node address assignments, and I/O mapping tables — eliminating the re-commissioning risk that comes with substituting a non-original replacement.

For maintenance teams managing aging SIEMENS SST-series installations, having a verified spare on the shelf means that when a card fails — whether due to electrostatic discharge, power surge, or end-of-life component degradation — the replacement cycle is measured in minutes rather than days of expedited procurement. This is the core value proposition: original compatibility, pre-tested condition, and immediate availability from a specialist industrial spare parts supplier.

Each unit is inspected, functionally tested where applicable, securely packaged for ESD protection, and shipped with full traceability documentation. Lead time from order confirmation to dispatch is typically 1–3 business days for in-stock units.

Support FAQ

Q1: Is the 5136-DNS-200S compatible with my existing DeviceNet network configuration?
Yes. As an original SIEMENS SST-series DeviceNet Slave Adapter Card, the 5136-DNS-200S maintains full protocol-level compatibility with any DeviceNet network conforming to the open DeviceNet standard (IEC 62026-3). MAC ID and baud rate settings are preserved from your existing configuration, and no re-commissioning of downstream DeviceNet nodes is required upon direct replacement.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure under normal operating conditions — including communication faults, bus interface failure, and firmware non-responsiveness attributable to the module itself. To initiate a warranty claim, contact TOPNLMS at [email protected] with your order reference and a brief fault description. Replacement or refund is processed within 5 business days of fault confirmation.

Q3: How should I verify the replacement card before installing it in a live system?
Best practice is to bench-test the 5136-DNS-200S in an offline or isolated DeviceNet segment using your existing configuration software (e.g., SST DeviceNet Configuration Tool or equivalent). Confirm that the card enumerates correctly, accepts the target MAC ID, and communicates at the required baud rate before installing it in the production control cabinet. TOPNLMS pre-shipment testing covers basic functional verification; site-specific commissioning remains the responsibility of the installing engineer.

Q4: What is the recommended inventory strategy for this module?
For facilities operating a single DeviceNet segment with one 5136-DNS-200S installed, a minimum of one verified spare is recommended. For multi-line facilities or systems where DeviceNet communication is on the critical path for production continuity, a two-unit spare holding is advisable. Given the age of the SST ISA-bus product line and the declining availability of original units on the open market, procurement lead times will increase over time — early stocking is strongly recommended.
