Siemens 505-6108A Ruggedized Analog Input Module

Product Overview

Siemens 505-6108A Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

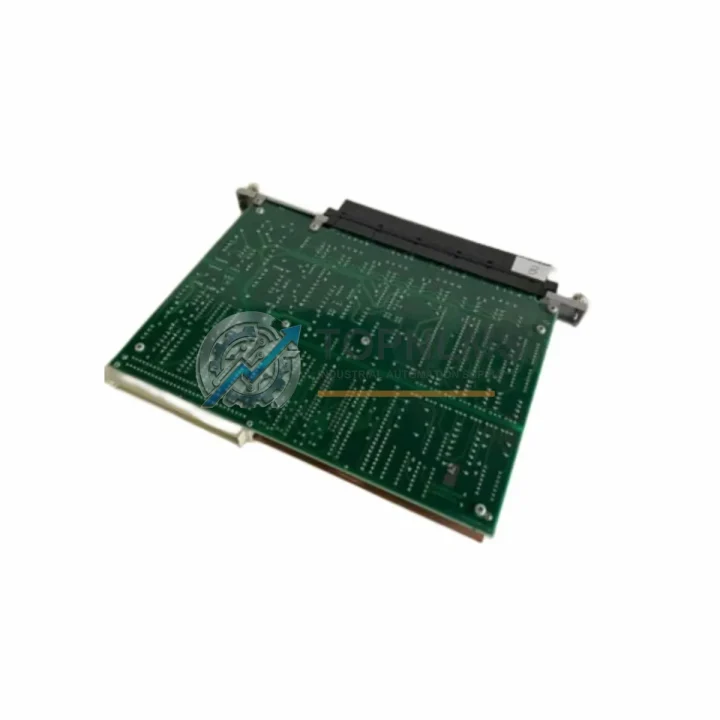

The Siemens 505-6108A is an 8-channel analog input module engineered for the SIMATIC 505 programmable logic controller platform — one of Siemens’ most proven and widely deployed control architectures in heavy industry. Designed to operate reliably under extreme thermal stress, high-humidity conditions, pervasive airborne particulates, continuous mechanical vibration, and intense electromagnetic interference, the 505-6108A delivers the signal integrity and measurement accuracy that mission-critical industrial processes demand.

In environments where a single erroneous analog reading can trigger a process shutdown, compromise product quality, or endanger personnel, the 505-6108A provides the measurement confidence that plant engineers and automation specialists rely on. Its robust hardware design, combined with Siemens’ rigorous manufacturing standards, makes it a preferred choice for facilities operating continuous production lines where unplanned downtime is not an option.

TOPNLMS maintains verified stock of the 505-6108A, with each unit subject to pre-shipment functional testing. All units are covered by a 12-month quality warranty from the date of delivery, with full technical support available throughout the warranty period.

Rugged Specifications Table

Comprehensive Protection Solutions

The 505-6108A does not operate in isolation — it is a precision instrument within a broader SIMATIC 505 control architecture. In a typical industrial control cabinet, it works in concert with the Siemens 505-CPU551 central processing unit, which orchestrates all I/O scanning and ladder logic execution. Analog signals acquired by the 505-6108A are processed alongside discrete inputs from 505-4808A digital input modules and discrete outputs driven by 505-4808B digital output modules, forming a complete mixed-signal I/O subsystem.

For installations requiring expanded I/O capacity, the module slots into standard SIMATIC 505 expansion racks such as the 505-6860 or 505-6870, connected via the 505-6850 remote I/O adapter for distributed control topologies. In high-vibration environments — common in mining conveyors, steel rolling mills, and offshore platforms — the backplane locking mechanism and conformal-coated PCB of the 505-6108A ensure signal continuity even under sustained mechanical stress.

Power integrity is maintained through Siemens SITOP series industrial power supplies, which provide clean, regulated DC power to the rack and suppress voltage transients that could otherwise corrupt analog measurements. For installations in electrically noisy environments such as variable frequency drive (VFD) motor control centers, the 505-6108A’s shielded backplane interface works in conjunction with Siemens 6ES5 series communication processors to maintain data integrity across the control network.

Safety-critical applications may pair the 505-6108A with Siemens SIRIUS 3SK safety relays or dedicated safety PLCs to implement SIL-rated interlock logic based on analog process values — for example, triggering emergency shutdowns when temperature or pressure readings exceed defined thresholds. Terminal modules and marshalling panels from the Siemens ET 200 distributed I/O family can further extend field wiring flexibility while maintaining system-level EMC compliance.

Application in Critical Infrastructure

The Siemens 505-6108A has established a long service record across the most demanding sectors of industrial infrastructure:

Oil & Gas: Upstream wellhead control panels and downstream refinery process units rely on the 505-6108A to monitor pressure transmitters, flow meters, and temperature sensors in classified hazardous areas. Its tolerance for wide ambient temperature swings and resistance to hydrocarbon-laden atmospheres make it a dependable choice for both onshore and offshore installations.

Mining & Minerals Processing: In underground coal mines and open-pit copper operations, the 505-6108A monitors conveyor belt load cells, crusher motor current feedback, and slurry pump pressure — all in environments characterized by coal dust, silica particulates, and continuous vibration from blasting and heavy machinery.

Electric Power Generation & Transmission: Thermal power plants and hydroelectric facilities use the 505-6108A within turbine governor control systems and boiler management systems, where precise analog measurement of steam pressure, flow rate, and generator output voltage is essential for grid stability and regulatory compliance.

Water & Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants deploy the 505-6108A to monitor pH sensors, dissolved oxygen probes, and chemical dosing pump feedback — applications where measurement drift or module failure can result in regulatory violations or public health incidents.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and hot rolling mills subject control hardware to extreme radiated heat and electromagnetic interference from high-current switching. The 505-6108A’s robust design sustains accurate analog acquisition in these environments, supporting precise temperature control and quality assurance in steel production.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All 505-6108A units supplied by TOPNLMS are covered by a 12-month warranty from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement or repair at no additional cost, with priority processing to minimize your downtime.

Q2: How is each unit tested before shipment?
Every 505-6108A undergoes a pre-shipment functional verification process that includes power-on testing, channel-by-channel analog signal verification, backplane communication check, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-assurance documentation purposes.

Q3: Is the 505-6108A compatible with my existing SIMATIC 505 rack and CPU?
Yes. The 505-6108A is fully compatible with all standard SIMATIC 505 series racks and CPUs, including the 505-CPU551, 505-CPU552, and 505-CPU553 processors. It occupies a single I/O slot and is recognized automatically by the TISOFT or STEP 5 programming environment without requiring additional configuration hardware. If you have specific compatibility questions regarding your installed base, our technical team can advise prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of the 505-6108A?
Yes. TOPNLMS specializes in the supply of legacy and current-generation industrial automation components, including the full SIMATIC 505 product family. We maintain ongoing stock and supplier relationships to support long-term procurement programs, planned maintenance schedules, and emergency spare-part requirements. Contact us to discuss blanket order arrangements or priority stock reservation for your facility.
