SIEMENS 505-4832 Replacement/Upgrade Solution for SIMATIC 505

Product Overview

SIEMENS 505-4832 Replacement/Upgrade Solution for SIMATIC 505: Seamless Transition to Modern Control

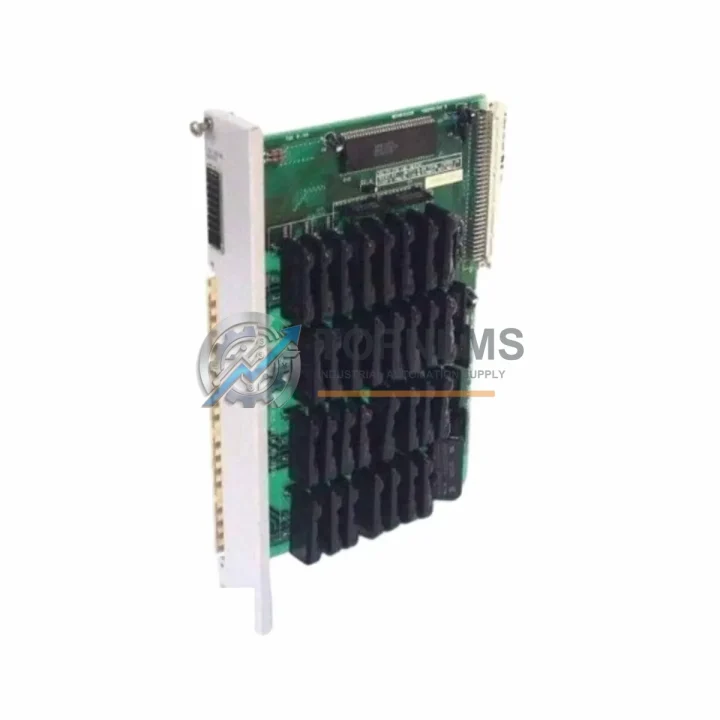

The SIEMENS 505-4832 is a 32-Point AC Triac Output Module designed for the SIMATIC 505 programmable logic controller platform — one of Siemens’ most widely deployed legacy DCS/PLC architectures in process manufacturing, utilities, and heavy industry. As the SIMATIC 505 series has reached end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source reliable replacement modules or plan a structured migration to a supported control platform.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find industrial automation components including the 505-4832. Every unit we ship undergoes functional verification before dispatch, and is backed by a 12-month warranty — giving your procurement and maintenance teams the confidence to plan around a reliable supply chain.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMATIC 505 modernization project rarely involves a single module swap. In practice, field engineers replacing the 505-4832 AC Output Module must coordinate a broader set of components to ensure system continuity. The following components are commonly involved in 505-series retrofit and migration projects:

When performing a like-for-like replacement within an existing 505 rack, the 505-6860 or 505-6870 I/O base rack must be verified for slot integrity and backplane bus health — a degraded backplane is often the root cause of repeated module failures. Alongside the output module, the 505-4116 16-Point DC Input Module and 505-4216 16-Point DC Output Module are frequently replaced in the same maintenance window to eliminate aging I/O as a variable during commissioning.

For sites running TISOFT on legacy PCs, the 505-CP1434 communication processor or equivalent serial programming cable is required to re-establish the programming connection after module swap. Engineers migrating toward a hybrid architecture often introduce a SIMATIC S7-300 CPU 315-2 DP as the new master controller, retaining the 505-series I/O racks via a PROFIBUS DP gateway adapter to avoid full field rewiring — a significant cost saving on large installations.

Power supply integrity is critical during any I/O migration. The 505-6850 Power Supply Module should be load-tested before commissioning the replacement 505-4832, as an undersized or aging PSU can cause intermittent output faults that are difficult to distinguish from module defects. Where cabinet space allows, adding a SITOP PSU100S 24VDC as a secondary rail for control logic provides additional resilience.

For sites transitioning to a fully modern architecture, the ET 200SP distributed I/O system with DQ 16x24VDC/0.5A or DQ 32x24VDC/0.5A HF output modules offers a forward-compatible path. Combined with a PROFINET IO controller and TIA Portal V17/V18 engineering software, this migration path delivers modern diagnostics, faster cycle times, and long-term vendor support — while the existing field wiring can often be re-terminated to ET 200SP terminal blocks with minimal modification.

Signal isolation is another consideration when mixing legacy 505-series I/O with new control hardware. SIEMENS SITRANS signal isolators or equivalent DIN-rail-mount signal conditioners protect the new controller from field-side transients common in older installations, reducing the risk of nuisance faults during the transition period.

Retrofit Guidance FAQ

Q: Can I replace the 505-4832 without modifying my field wiring?
A: Yes. The 505-4832 uses a front-wired terminal block that is physically identical across the 505 AC output module family. A like-for-like replacement requires no field wiring changes. Verify terminal torque specs (typically 0.5–0.6 Nm) after reconnection.

Q: Do I need to make any program changes in TISOFT after swapping the module?
A: No program changes are required for a direct 505-4832 replacement. The module address is determined by rack and slot position, not the module itself. Confirm the slot address in your TISOFT I/O configuration matches the physical installation before going online.

Q: Is the 505-4832 compatible with PROFIBUS or PROFINET communication?
A: The 505-4832 communicates exclusively via the SIMATIC 505 proprietary backplane bus. It is not natively compatible with PROFIBUS DP or PROFINET. Migration to PROFIBUS or PROFINET requires a gateway module or a full platform migration to S7-300/S7-400/S7-1500 with ET 200SP I/O.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use TISOFT’s online diagnostic view to confirm the module is recognized in the I/O rack. Force individual output points in test mode to verify field device response. Check for blown fuse indicators on the module faceplate before applying load.

Q: What is the physical space requirement for the 505-4832 in the control cabinet?
A: The 505-4832 occupies one standard slot in a SIMATIC 505 I/O rack. No additional cabinet space is required for a like-for-like replacement. For migration to ET 200SP, plan for DIN rail mounting space and additional terminal block depth.

Q: Can the 505-4832 be used as a spare/backup module for multiple machines?
A: Yes. The module is slot-addressed and interchangeable across any SIMATIC 505 rack of the same series. Maintaining one or two spare units per site is a common practice for facilities with multiple 505-based systems to minimize unplanned downtime.

Warranty Assurance

Every SIEMENS 505-4832 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment process includes:

• Functional verification: Each module is powered and tested for output channel continuity and backplane communication integrity before packaging.
• Visual and mechanical inspection: Connector pins, faceplate indicators, and terminal blocks are inspected for damage, corrosion, or wear.
• Secure packaging: Anti-static packaging with foam cushioning to prevent transit damage.
• Replacement support: If a unit fails within the warranty period due to a manufacturing or quality defect, we will arrange a replacement or refund — no lengthy RMA process.
• After-sales response: Our technical team responds to post-shipment queries within 1 business day. We can assist with installation questions, compatibility verification, and commissioning guidance.
• Procurement assurance: We maintain stock of hard-to-find 505-series modules and can provide lead-time commitments for volume orders. Certificates of conformity and test reports are available on request.

For volume procurement, OEM partnerships, or urgent replacement requirements, contact our team directly.
