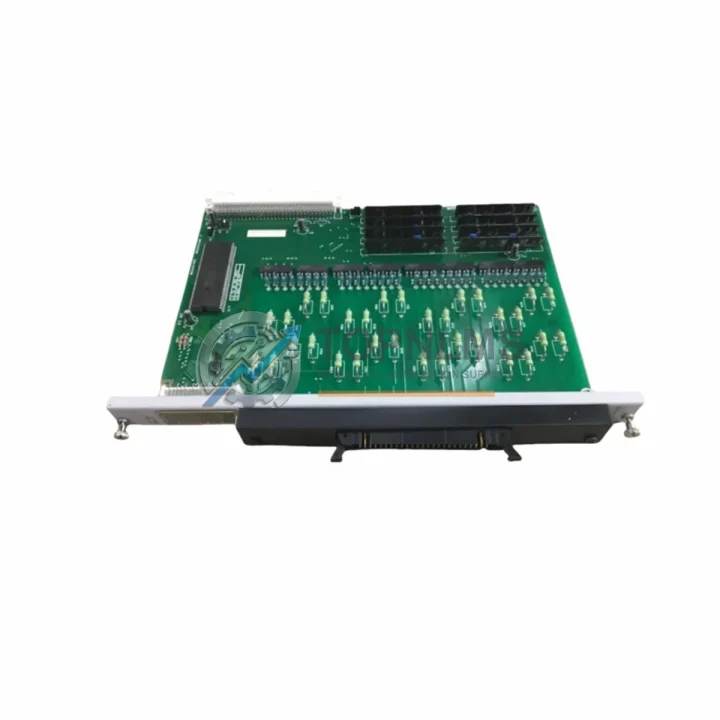

Siemens 505-4332 Ruggedized Digital Input Module for Harsh Environments

Product Overview

Siemens 505-4332 Ruggedized Digital Input Module for Harsh Environments

The Siemens 505-4332 is a 32-channel, 24 VDC digital input module engineered for the SIMATIC 505 programmable logic controller platform. Designed to operate continuously in demanding industrial environments — including high-temperature process floors, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing lines — this module delivers the signal integrity and fault tolerance that mission-critical automation systems require. Whether installed in a steel-mill control cabinet, an offshore platform marshalling rack, or a water-treatment SCADA enclosure, the 505-4332 maintains deterministic scan-cycle performance without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The 505-4332 is rarely deployed in isolation. In a fully integrated SIMATIC 505 control architecture, it works in concert with a range of complementary modules and field devices to deliver end-to-end system reliability. The Siemens 505-4334 32-channel 24 VDC digital input module (isolated variant) is a direct companion for applications requiring enhanced channel-level fault isolation. On the output side, the Siemens 505-6664 16-channel relay output module handles high-current switching loads such as motor contactors and solenoid valves, ensuring the control loop remains closed even under inductive surge conditions.

For analog process variables — temperature, pressure, and flow — the Siemens 505-6850 8-channel analog input module integrates seamlessly into the same backplane, sharing the CPU scan cycle with the 505-4332 digital inputs. Power integrity across the rack is maintained by the Siemens 505-1162 power supply module, which provides regulated 5 VDC and 24 VDC rails with built-in over-voltage and short-circuit protection. In high-vibration environments such as compressor stations or rolling mills, the CTI 2500-RIO remote I/O adapter extends the 505-4332’s reach to distributed field panels without sacrificing scan-cycle determinism.

Safety-critical zones benefit from pairing the 505-4332 with a dedicated Siemens SIRIUS 3SK1 safety relay module, which monitors emergency-stop circuits and light-curtain feedback independently of the PLC scan. Communication to SCADA and DCS layers is handled by the Siemens 505-CP1434 TF PROFIBUS-DP communication processor, enabling the SIMATIC 505 rack to exchange real-time data with Siemens S7-300/400 DCS nodes or third-party distributed control systems. Terminal connectivity is secured through Siemens SIRIUS 8WA series terminal blocks and marshalling strips, which provide vibration-resistant, screw-clamp field wiring terminations rated for continuous duty in Class I, Division 2 hazardous locations.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 505-4332 monitors wellhead valve position feedback, pressure-switch status, and ESD (Emergency Shutdown) loop inputs across multiple field junction boxes. Its optical isolation prevents ground-loop interference from long cable runs in remote wellpad installations, where common-mode noise from variable-frequency drives controlling pump motors can otherwise corrupt digital input readings.

At coal-fired and combined-cycle power plants, the module reads turbine protection relay contacts, breaker auxiliary contacts, and flame-detector outputs in real time. The deterministic scan cycle of the SIMATIC 505 CPU — combined with the 505-4332’s fast input filter response — ensures that trip signals are captured within the required protection-system response time, even during grid disturbances that introduce transient EMI into the control room.

In municipal water and wastewater treatment plants, the 505-4332 handles high-density digital input arrays from float switches, pump run/fail contacts, and chlorination system interlocks. Its wide humidity tolerance (up to 95 % non-condensing) makes it suitable for wet-well pump stations and chemical dosing rooms where condensation is a persistent challenge for conventional I/O hardware.

Mining and mineral processing operations rely on the 505-4332 to monitor conveyor belt alignment switches, crusher overload contacts, and ventilation fan status across underground and surface installations. The module’s vibration compliance with IEC 60068-2-6 ensures reliable contact reading even when mounted in control panels subject to continuous mechanical vibration from crushers, screens, and ball mills.

In metallurgical and steel-making facilities, where ambient temperatures near furnaces and ladle-handling areas can approach the upper limits of standard industrial equipment, the 505-4332’s 0–60 °C operating range and robust optical isolation provide the margin needed to maintain continuous production without unplanned I/O faults.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period, TOPNLMS will repair or replace the unit at no charge. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification.

Q2: How is each unit tested before shipment?
Every 505-4332 unit undergoes a pre-shipment functional verification that includes power-on self-test, channel-by-channel input continuity check, and backplane communication handshake validation using a SIMATIC 505-compatible test rack. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.

Q3: Is the 505-4332 compatible with CTI 2500 Series controllers as a drop-in replacement?
Yes. The CTI 2500 Series controllers are designed as fully compatible replacements for the SIMATIC 505 platform, and the 505-4332 module operates without modification in CTI 2500 racks. This cross-compatibility is a significant advantage for facilities that are migrating from legacy Siemens 505 hardware to CTI’s actively supported controller line, as existing I/O modules — including the 505-4332 — can be retained, reducing replacement cost and re-commissioning time.

Q4: Can long-term supply continuity be guaranteed for this module?
TOPNLMS maintains a dedicated inventory of SIMATIC 505 series modules, including the 505-4332, to support facilities with long equipment lifecycles. We source units through verified industrial surplus and authorized distribution channels, and each unit is inspected and tested before listing. For customers requiring guaranteed stock reservation for planned maintenance shutdowns or multi-year service contracts, we offer advance purchase and hold arrangements — contact our technical sales team to discuss your specific requirements.
