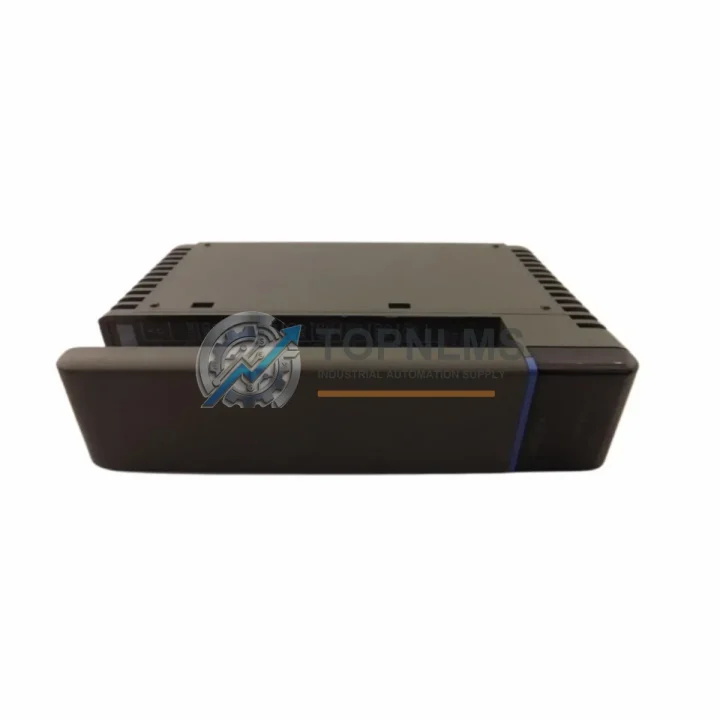

SIEMENS 405-8ADC Original Industrial Spare SIMATIC S5-400 Compatible

Product Overview

SIEMENS 405-8ADC Original Industrial Spare SIMATIC S5-400 Compatible: System Stability Through Precision Analog Signal Acquisition

The SIEMENS 405-8ADC is an 8-channel analog input module engineered for the SIMATIC S5-400 programmable logic controller platform — one of Siemens’ most enduring and widely deployed industrial automation architectures. In manufacturing plants, chemical processing facilities, power generation stations, and heavy industry environments worldwide, the S5-400 series continues to serve as the backbone of mission-critical control systems. Maintaining these systems in peak operational condition demands access to original, specification-matched spare parts. The 405-8ADC fulfills that requirement precisely: it is not a substitute or a workaround — it is the original module, built to Siemens’ exacting engineering standards, ready to restore full analog signal processing capability with zero compromise.

When a control system experiences analog input failure, the consequences extend far beyond a single faulty channel. Process variables — temperature, pressure, flow rate, level — become invisible to the controller. Automated responses cease. Operators revert to manual intervention. Production halts. Every hour of unplanned downtime carries measurable financial cost. Having a verified, tested 405-8ADC module in your maintenance inventory is not a luxury; it is a fundamental risk management decision that separates reactive maintenance from professional-grade industrial operations.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the 405-8ADC should be integrated into your broader S5-400 system maintenance cycle. Analog input modules are among the most stress-exposed components in a PLC cabinet: they interface directly with field instrumentation, absorbing electrical noise, transient surges, and the cumulative effects of industrial environments. A proactive maintenance approach begins with the module itself but must extend to the entire signal chain and power infrastructure.

During any planned shutdown or annual inspection involving the 405-8ADC, maintenance engineers should simultaneously verify the condition of the S5-400 power supply module (such as the 405-1AA01 or equivalent) — a degraded power supply introduces voltage ripple that directly corrupts analog measurement accuracy. The S5-400 CPU module (e.g., CPU 948 or CPU 928B) should be checked for firmware integrity and battery backup status, as CPU faults can manifest as false analog channel errors. The S5-400 digital output modules controlling actuators downstream of the analog measurement loop should also be inspected, since a failed DO module can mask what appears to be an analog input problem.

Field wiring connected to the 405-8ADC’s terminal block deserves careful attention. Loose or corroded connections on the S5-400 front connector (the detachable wiring interface) are a leading cause of intermittent analog signal faults that are frequently misdiagnosed as module failure. Inspect and re-torque all terminal screws, and verify shielding continuity on all analog signal cables. If the installation uses signal isolators or signal conditioners between field transmitters and the 405-8ADC inputs, these devices should be tested for drift — particularly in high-temperature environments where isolation barrier degradation accelerates.

For facilities running multiple S5-400 racks, the S5-400 expansion bus cable and IM (Interface Module) pairs — such as the IM 460/IM 461 combination — should be inspected for connector wear and cable integrity. A degraded IM connection can cause sporadic communication errors that appear as analog module faults in diagnostics. Similarly, the S5-400 backplane bus connectors within the rack should be cleaned and inspected for oxidation, particularly in humid or chemically aggressive environments.

If your facility operates PROFIBUS DP communication modules alongside the 405-8ADC for distributed I/O integration, verify that bus termination resistors are correctly installed and that cable lengths comply with PROFIBUS specifications. Communication instability on the PROFIBUS segment can cause the CPU to report analog module errors even when the 405-8ADC itself is fully functional. Finally, ensure that any HMI panels (such as Siemens OP or TP series) connected to the S5-400 system are displaying correct process values — HMI display errors are sometimes the first visible symptom of an upstream analog input module issue.

Strategic Replacement Solutions

The SIMATIC S5-400 platform, while no longer in active production, remains operational in thousands of industrial installations globally. Siemens’ official end-of-life designation for S5 hardware means that OEM replacement channels have narrowed significantly — but the operational need has not diminished. Plants running S5-400 systems face a clear strategic choice: undertake a full migration to S7-400 or TIA Portal-based platforms (a project measured in months and millions), or maintain the existing S5-400 infrastructure with verified original spare parts while planning a phased modernization.

The 405-8ADC supports the second strategy directly. By stocking original analog input modules, maintenance teams can execute same-day replacements during unplanned failures, restoring production without the lead times associated with emergency procurement. The module’s plug-and-play compatibility with the S5-400 rack eliminates reconfiguration time — no parameter reassignment, no software changes, no re-commissioning. The replacement technician removes the failed module, inserts the 405-8ADC, and the system resumes normal operation.

For facilities managing the transition from S5 to S7 architecture, the 405-8ADC also serves as a bridge component: it keeps legacy S5-400 lines operational while S7-based systems are commissioned in parallel, preventing the operational gap that often forces premature full cutover. This phased approach reduces migration risk and allows engineering teams to validate S7 performance against live production benchmarks before committing to full decommissioning of S5 assets.

Every 405-8ADC unit shipped from TOPNLMS undergoes functional testing prior to dispatch. Electrical parameters are verified against Siemens’ original specifications. Modules are packaged with anti-static protection and shipped with documentation. Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions — providing procurement teams with the confidence required for long-term spare parts planning.

Support FAQ

Q1: Is the 405-8ADC a new original module or a refurbished unit?
All 405-8ADC units offered by TOPNLMS are sourced as original Siemens components. Each unit is individually tested for electrical functionality before shipment. Product condition (new surplus or professionally refurbished to original specification) is disclosed at the time of quotation. Our 12-month warranty applies to all units regardless of condition classification.

Q2: How do I verify compatibility with my existing S5-400 rack configuration?
The 405-8ADC is designed for the SIMATIC S5-400 rack system and is compatible with all standard S5-400 central and expansion racks. Compatibility is determined by rack slot type and front connector wiring — no firmware or software version dependency applies. If you require confirmation for a specific installation, provide your rack order number and CPU type and our technical team will verify compatibility before shipment.

Q3: What is the recommended spare parts inventory strategy for S5-400 analog input modules?
For production-critical S5-400 installations, we recommend maintaining a minimum of one 405-8ADC per four installed units as a cold standby. For facilities with extended procurement lead times or remote locations, a ratio of one spare per two installed units is advisable. Given the end-of-life status of S5 hardware, forward-buying a 12–24 month supply at current pricing protects against future availability constraints and price escalation.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Each 405-8ADC undergoes channel-by-channel analog signal verification, backplane communication testing, and visual inspection for physical damage prior to shipment. The 12-month warranty covers functional failure under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a target response time of 48 hours, with replacement or repair options available.
