Siemens 3RK3141-2CD10 Ruggedized Safety Gateway for Harsh Environments

Product Overview

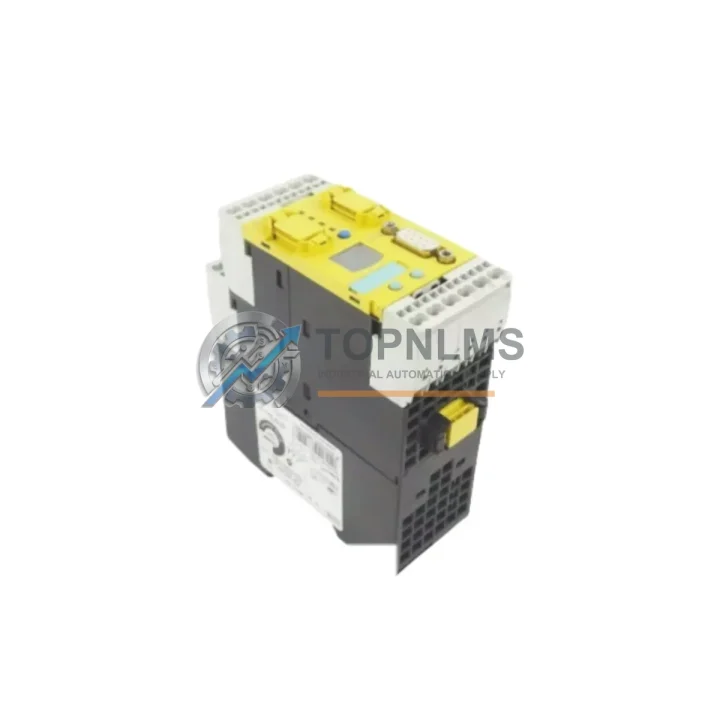

Siemens 3RK3141-2CD10 Ruggedized Safety Gateway for Harsh Environments

The Siemens 3RK3141-2CD10 is a SIRIUS AS-Interface F-Link Safety Gateway engineered for mission-critical industrial automation environments where functional safety, electromagnetic resilience, and continuous uptime are non-negotiable. Designed to bridge AS-Interface safety slave networks with Profibus DP host controllers, this gateway delivers deterministic, fail-safe communication in the most demanding plant conditions — from high-temperature foundries and dusty mining galleries to vibration-intensive offshore platforms and chemically aggressive water treatment facilities.

Built to Siemens’ SIRIUS safety architecture standards, the 3RK3141-2CD10 integrates seamlessly into existing Profibus DP backbones, enabling plant engineers to consolidate distributed safety I/O signals — including emergency stops, safety light curtains, two-hand controls, and door interlock switches — into a single, diagnostics-rich gateway node. Its compact DIN-rail form factor and robust housing make it equally at home in a stainless-steel control cabinet on a food processing line or a sealed enclosure in a Zone 2 hazardous area.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3RK3141-2CD10 is rarely deployed in isolation. In a typical SIRIUS safety architecture, it operates alongside the Siemens 3RK3141-2CD10 gateway cluster, coordinating with SIRIUS 3SK1 safety relays that provide local hardwired protection for motor starters and contactors. On the AS-Interface segment, 3RK2 AS-i Safety Monitor modules validate the safety-relevant signals from field devices before they are forwarded upstream. For power distribution within the control cabinet, Siemens SITOP PSU100S 24V DC power supplies deliver the stable, low-ripple voltage that AS-Interface networks require for reliable slave polling cycles.

Communication integrity between the gateway and the Siemens S7-300 or S7-400 PLC host is maintained through Profibus DP CP 342-5 communication processors, which handle protocol conversion and buffer diagnostic data for the STEP 7 or TIA Portal engineering environment. In larger distributed control architectures, the 3RK3141-2CD10 may be paired with Siemens ET 200SP distributed I/O modules to extend the safety I/O footprint across multiple field panels without additional gateway hardware. Where process variables must be transmitted over longer distances, SIMATIC NET Profibus repeaters extend segment reach while preserving signal integrity in electrically noisy environments.

For cabinet-level terminal management, Siemens SIRIUS 3RT contactors and 3RV circuit breakers are commonly installed in the same enclosure, with the AS-Interface safety bus providing unified diagnostics across all switching devices. In applications requiring intrinsic safety barriers for Zone 0 or Zone 1 field instruments, Siemens SITRANS isolating barriers complement the gateway’s Zone 2 compatibility, creating a complete hazardous-area protection chain from field sensor to PLC.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 3RK3141-2CD10 monitors emergency shutdown (ESD) loops across wellhead control panels, where SIL 3 certification is a contractual requirement and gateway response times must remain deterministic even under heavy Profibus DP bus loads. Offshore platform control rooms rely on its wide operating temperature range and vibration immunity to maintain continuous operation through structural movement and salt-air corrosion cycles.

In underground mining operations, the gateway’s robust EMC immunity — rated to EN 61000-6-2 — ensures that safety signals from conveyor belt pull-cord switches and methane detection interlocks are never corrupted by the high-frequency interference generated by variable frequency drives (VFDs) controlling haulage motors. The gateway’s diagnostic telegram support allows surface control rooms to identify a faulted AS-i slave within seconds, minimizing unplanned downtime on continuous mining systems.

In power generation and grid substations, the 3RK3141-2CD10 integrates turbine protection interlocks and transformer bay safety circuits into the plant’s Profibus DP SCADA backbone, providing a single point of diagnostic visibility for maintenance engineers. Its -25 °C cold-start capability is particularly valued in outdoor switchgear buildings in northern climates, where conventional gateways may fail to initialize during winter commissioning.

In water and wastewater treatment plants, the gateway supervises chemical dosing interlock systems and pump station safety circuits in environments characterized by high humidity, condensation, and aggressive chemical vapors. Its IP20 rating, combined with a sealed IP65 control cabinet, provides the layered protection strategy recommended by IEC 60529 for wet-area automation installations.

In steel and metallurgical plants, where radiated heat from furnaces and induction heaters can push ambient temperatures well above 50 °C, the 3RK3141-2CD10’s extended operating range and thermal design ensure that safety gateway functions remain fully operational without forced cooling, reducing maintenance overhead on high-cycle production lines.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Siemens 3RK3141-2CD10?
Every 3RK3141-2CD10 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. If the unit exhibits any functional defect under normal operating conditions within this period, TOPNLMS will arrange a replacement or full refund. Our warranty terms are documented and provided with each shipment.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment inspection protocol that includes visual inspection for physical damage, label and SKU verification against the purchase order, and functional power-on verification where applicable. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation. Batch traceability records are maintained for quality audit purposes.

Q3: Is the 3RK3141-2CD10 compatible with both STEP 7 and TIA Portal engineering environments?
Yes. The 3RK3141-2CD10 is fully supported in Siemens STEP 7 (v5.5 and above) via GSD file integration and in TIA Portal (v13 and above) via the HSP (Hardware Support Package) for SIRIUS safety devices. It is compatible with S7-300, S7-400, and S7-1500 PLC families when used with an appropriate Profibus DP interface module. Compatibility with third-party Profibus DP masters is subject to GSD file support on the master side.

Q4: Can TOPNLMS support long-term or repeat procurement of this model?
Yes. TOPNLMS maintains dedicated stock of high-demand SIRIUS safety components, including the 3RK3141-2CD10, to support planned maintenance shutdowns, spare parts programs, and emergency replacement requirements. For OEM integrators and EPC contractors requiring scheduled delivery across multiple project phases, we offer reserved stock arrangements and priority fulfillment. Contact our technical sales team to discuss volume pricing and lead-time commitments.
