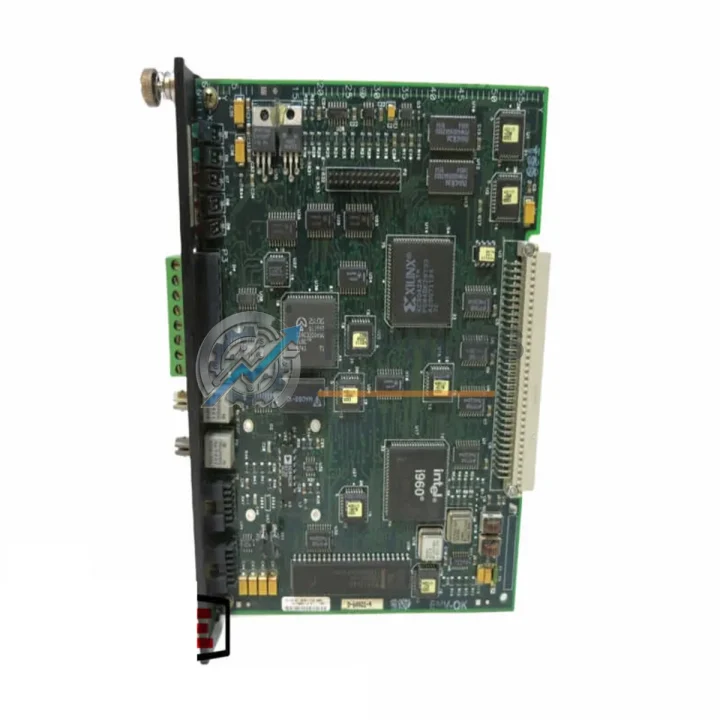

Siemens 3-424-2283A02 Ruggedized CPU Board for Harsh Environments

Product Overview

Siemens 3-424-2283A02 Ruggedized CPU Board for Harsh Environments

The Siemens 3-424-2283A02 is a backplane-mounted industrial processor module engineered for continuous, fault-tolerant operation in the most demanding automation environments. Designed as part of Siemens’ proven SIMATIC S5 control architecture, this CPU board delivers deterministic processing performance and exceptional resilience against the electrical, thermal, and mechanical stresses that define real-world industrial sites — from petrochemical refineries and underground mining operations to high-voltage power distribution substations and continuous-process steel mills.

Where standard commercial-grade electronics fail, the 3-424-2283A02 maintains stable program execution. Its ruggedized PCB construction, conformal coating, and hardened backplane interface are purpose-built to withstand ambient temperatures ranging from sub-zero cold-start conditions to sustained high-heat enclosures, relative humidity up to 95% non-condensing, and the pervasive particulate contamination found in cement plants, grain processing facilities, and mineral extraction sites. Vibration damping at the board level ensures reliable contact across all edge connectors even in environments subject to continuous mechanical shock — a critical requirement for compressor skids, rotating machinery platforms, and rail-mounted control cabinets.

Electromagnetic compatibility is a core design priority. The 3-424-2283A02 operates reliably in the presence of high-frequency switching noise generated by variable frequency drives (VFDs), large motor starters, and high-current bus systems. This makes it an ideal processor module for control cabinets that co-locate PLC racks with Siemens SINAMICS G120 or MICROMASTER 440 series drives, where conducted and radiated EMI would compromise lesser hardware. The board’s shielded backplane interface and low-impedance ground plane architecture suppress common-mode interference before it can corrupt program memory or distort I/O scan cycles.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3-424-2283A02 CPU board does not operate in isolation — it is the processing core of a broader SIMATIC S5 control system architecture, and its reliability is multiplied when paired with the correct peripheral and protective components. In a typical heavy-industry control cabinet, this processor module interfaces directly with Siemens S5-115U or S5-135U I/O expansion racks via the backplane bus, coordinating real-time data exchange with digital and analog I/O modules such as the 6ES5 430-4UA12 digital input module and the 6ES5 470-4UA12 analog output module.

For power integrity — a non-negotiable requirement in continuous-process industries — the CPU board depends on a stable 24 V DC supply delivered through a Siemens SITOP PSU100S or equivalent industrial power supply unit. These SITOP-series supplies provide active buffering against mains voltage dips, protecting the CPU’s program memory and preventing uncontrolled shutdowns during grid disturbances common in heavy manufacturing environments. Upstream of the power supply, a Siemens 3RT series contactor and motor protection relay combination ensures that load-side faults do not propagate back into the control bus.

Communication integrity is maintained through dedicated CP 5431 FMS/DP communications processors, which handle PROFIBUS DP fieldbus traffic independently of the CPU’s main processing cycle. This separation of communication and control tasks is essential in large-scale DCS architectures where hundreds of remote I/O nodes, valve positioners, and field transmitters must be polled without introducing latency into the safety-critical control loop. For installations requiring MPI or industrial Ethernet connectivity, the CP 5511 or CP 1613 communication modules provide seamless integration into plant-wide SCADA and historian systems.

Safety-layer protection is typically implemented alongside the CPU board using Siemens 3TK28 series safety relays, which monitor emergency stop circuits, light curtains, and two-hand control devices in accordance with IEC 62061 and EN ISO 13849-1. Terminal connectivity within the control cabinet is standardized using Siemens SIRIUS 8WA series terminal blocks, which provide reliable, vibration-resistant wire termination across the full operating temperature range. Together, these components form a complete, validated protection architecture around the 3-424-2283A02 processor core.

Application in Critical Infrastructure

The Siemens 3-424-2283A02 has established a long service record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, this CPU board controls wellhead automation panels, pipeline SCADA outstations, and compressor station emergency shutdown (ESD) systems, where unplanned downtime carries both safety and regulatory consequences. Its tolerance for wide ambient temperature swings makes it equally suited to Arctic pipeline monitoring stations and desert gas processing facilities.

In power generation and transmission, the 3-424-2283A02 is deployed in turbine governor control systems, transformer protection relay coordination panels, and substation automation racks. The board’s EMI hardening is particularly valued in high-voltage switchgear environments, where transient overvoltages and fast-front surges are a constant threat to unprotected electronics. Utilities operating aging SIMATIC S5 infrastructure rely on this module as a long-term spare to extend the operational life of installed base systems without undertaking costly full-system migrations.

The mining and mineral processing sector presents some of the harshest operating conditions for any electronic control component — extreme dust loading, continuous vibration from crushers and conveyors, and aggressive chemical atmospheres from flotation reagents and acid leach circuits. The 3-424-2283A02’s conformal-coated PCB and sealed backplane connectors provide meaningful protection against these ingress threats, making it a preferred replacement module for concentrator plant control systems and underground ventilation automation.

In water and wastewater treatment, the module controls pump station sequencing, chemical dosing systems, and SCADA-integrated telemetry outstations across geographically distributed networks. Its low power consumption and stable long-term operation reduce maintenance intervention frequency — a critical advantage for unmanned remote pump stations. Metallurgical and steel production facilities use the 3-424-2283A02 in rolling mill drive coordination, ladle tracking systems, and continuous casting machine control, where the combination of high ambient temperature, electromagnetic noise from arc furnaces, and the absolute requirement for zero unplanned stops makes hardware reliability the primary procurement criterion.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after technical verification. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom. Replacement units are dispatched within 3–5 business days of claim approval.

Q2: How is each 3-424-2283A02 unit tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage and connector integrity, power-on functional verification confirming correct initialization and bus communication, and a burn-in cycle to screen for early-life component failures. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement requirements.

Q3: Is the 3-424-2283A02 compatible with my existing SIMATIC S5 rack and I/O configuration?
The 3-424-2283A02 is designed for backplane installation in SIMATIC S5 rack systems and is compatible with the standard S5 backplane bus pinout. Compatibility with specific I/O modules, memory cards, and communication processors depends on the firmware revision and system configuration. TOPNLMS technical support can assist with compatibility verification — provide your existing rack model, installed modules, and software version for a pre-purchase compatibility assessment.

Q4: Can TOPNLMS guarantee long-term supply of this module for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of legacy Siemens SIMATIC S5 components specifically to support industrial operators running extended-life automation systems. We source from verified supply chains and maintain buffer stock of high-demand modules including the 3-424-2283A02 to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact our team to discuss volume pricing, consignment stock arrangements, or long-term supply contracts tailored to your maintenance program requirements.
