Siemens 16267-1/4 Replacement Solution for MODULNET

Product Overview

Siemens 16267-1/4 Replacement Solution for MODULNET — Smooth Legacy System Transition

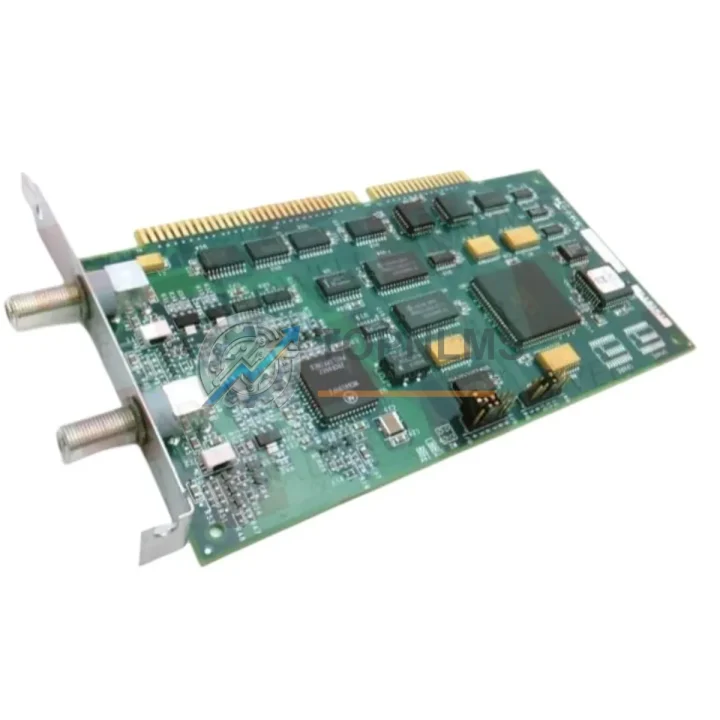

The Siemens 16267-1/4 is a MODULNET M-NET Communication Interface Module designed for ISA bus architecture, widely deployed in legacy Siemens industrial control systems throughout the 1990s and early 2000s. As production lines continue to rely on aging SIMATIC S5, TELEPERM, and early SIMATIC S7 platforms, the 16267-1/4 remains a critical link between field-level devices and supervisory control networks. When this module fails or reaches end-of-life, the entire communication backbone of a control cabinet can be compromised — making a reliable, tested replacement essential for minimizing unplanned downtime.

TOPNLMS maintains verified stock of the Siemens 16267-1/4 to support engineers and maintenance teams who need a fast, compatible drop-in solution without redesigning their existing control architecture. Every unit is inspected and function-tested prior to shipment, backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 16267-1/4 is rarely an isolated task. In most legacy Siemens control cabinets, the M-NET interface module works in concert with a broader ecosystem of aging components that may also be approaching end-of-life. A thorough upgrade plan should account for the full communication chain.

When the 16267-1/4 is removed for replacement, maintenance engineers typically take the opportunity to inspect the SIMATIC S5 CPU module (such as the 6ES5 095 or 6ES5 100 series) for capacitor aging and firmware currency. The ISA backplane itself — often a 6ES5 700 series rack — should be checked for oxidized edge connectors and cracked bus traces, as these can cause intermittent communication faults that mimic a failed interface card.

The M-NET network cabling connecting the 16267-1/4 to field devices and remote I/O stations deserves close attention. Shielded twisted-pair segments, termination resistors, and M-NET repeater modules should all be verified for continuity and correct impedance. A degraded cable segment can cause the replacement module to appear faulty during commissioning, leading to unnecessary re-swaps.

On the power side, the 6ES5 955 series power supply module feeding the rack must deliver stable 5V and 12V rails within specification. Aging electrolytic capacitors in these PSUs are a common source of voltage ripple that stresses interface cards. Replacing or refurbishing the PSU in parallel with the 16267-1/4 is a best practice that significantly extends the life of the upgraded system.

For sites migrating toward a hybrid architecture — retaining the legacy S5 backbone while adding modern supervisory visibility — a CP 5431 FMS/DP communication processor or a PROFIBUS DP gateway module can bridge the M-NET segment to a PROFIBUS network, enabling integration with newer SIMATIC S7-300 or S7-400 controllers without a full rip-and-replace. This approach preserves existing field wiring and STEP 5 program logic while adding modern diagnostic capability.

Digital I/O modules connected downstream of the M-NET interface — such as 6ES5 420 or 6ES5 430 series digital input/output cards — should be tested for channel integrity during the same maintenance window. Failed channels on these modules are often masked by communication errors at the interface level, and replacing the 16267-1/4 without checking downstream I/O can result in persistent process faults post-commissioning.

Finally, if the control cabinet includes an OP5, OP7, or OP15 operator panel communicating via the M-NET segment, verify that the HMI firmware is compatible with the replacement interface module’s hardware revision. Firmware mismatches between the HMI and the communication interface are a documented source of display lockups in legacy TELEPERM and S5 installations.

Retrofit Guidance FAQ

Q1: Can I install the 16267-1/4 replacement without modifying existing wiring?
Yes. The 16267-1/4 is a direct ISA card replacement. It inserts into the same slot in the original rack backplane with no changes to field wiring, terminal blocks, or cable harnesses. Ensure the ISA slot is clean and free of oxidation before insertion.

Q2: Is the replacement module compatible with my existing STEP 5 program and M-NET configuration?
In most cases, yes. The replacement 16267-1/4 uses the same hardware architecture and M-NET protocol stack as the original. No program changes are required. However, if your original module had a specific firmware revision configured for a non-standard baud rate or node address, verify these settings are replicated during commissioning using the original STEP 5 project documentation.

Q3: How do I verify the replacement module is functioning correctly after installation?
After physical installation, power up the rack and observe the module’s status LEDs. A steady green RUN indicator confirms successful M-NET network initialization. Use the SIMATIC S5 diagnostic functions (SFC or system data blocks) to verify node communication status. If the module fails to initialize, check ISA bus seating, rack PSU voltage levels, and M-NET cable termination at both ends of the segment.

Q4: What does the 12-month warranty from TOPNLMS cover?
All 16267-1/4 units shipped by TOPNLMS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days. Contact [email protected] with your order reference and fault description to initiate a claim.

Warranty Assurance

Every Siemens 16267-1/4 unit supplied by TOPNLMS is subject to a rigorous pre-shipment inspection protocol. Modules are powered up and tested for M-NET communication initialization, ISA bus signal integrity, and LED status indication before packaging. Units that do not pass functional verification are quarantined and never shipped.

Our 12-month warranty covers all functional defects arising from normal industrial use. This includes communication failure, bus interface faults, and firmware initialization errors. Physical damage caused by incorrect installation, overvoltage, or environmental contamination is excluded from warranty coverage.

TOPNLMS ships globally from Xiamen, China, with standard lead times of 3–7 business days for in-stock units. Express shipping options are available for urgent breakdown scenarios. All shipments include a packing list, test report, and warranty certificate. For bulk procurement, OEM partnerships, or consignment stocking arrangements, contact our industrial sales team directly.

For technical pre-sales support, compatibility verification, or post-installation commissioning assistance, reach our engineering team at [email protected] or +86 18359293191.
