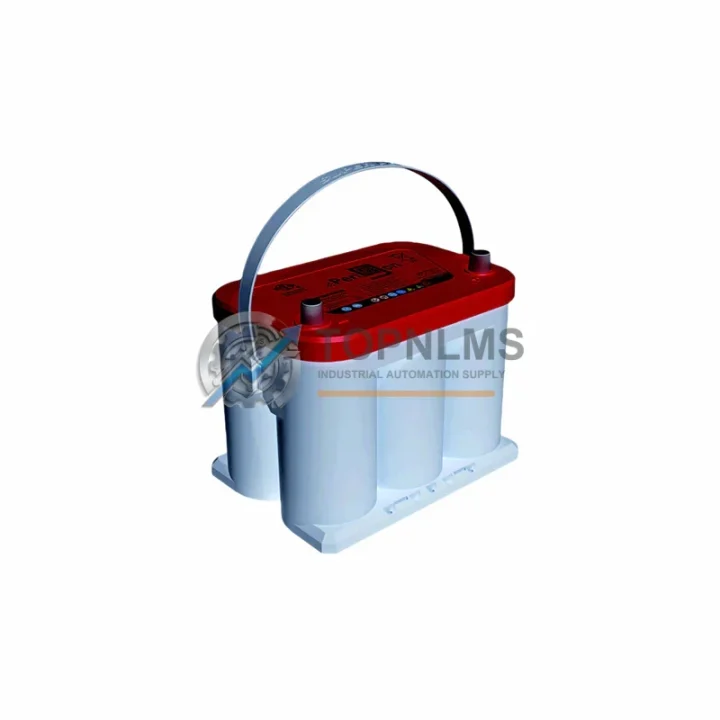

Shuangdeng 6-SPB-50B Replacement/Upgrade Solution for SPB Series

Product Overview

Shuangdeng 6-SPB-50B Replacement/Upgrade Solution for SPB Series: Smooth Transition from Legacy Systems

When your existing backup power infrastructure relies on aging valve-regulated lead-acid (VRLA) batteries or discontinued flooded-cell units, migrating to the Shuangdeng 6-SPB-50B represents one of the most cost-effective and operationally safe upgrade paths available in the industrial energy storage market. Rated at 12V / 50Ah and engineered under Shuangdeng’s Super Power Battery (SPB) Lead-Carbon platform, this module is purpose-built for high-cycle, partial-state-of-charge (PSoC) applications — precisely the operating conditions found in UPS systems, telecom base stations, renewable energy storage racks, and industrial control cabinet backup power supplies.

The 6-SPB-50B is a direct form-factor successor to earlier Shuangdeng 6-GFM-50 and 6-GFM-50E VRLA modules. Facilities that have been running 6-GFM-50 batteries in 19-inch or 23-inch rack enclosures will find that the 6-SPB-50B fits the same mounting rails without structural modification. Terminal polarity, bolt pitch, and inter-cell connector geometry are preserved, which means existing copper bus bars, flexible connectors, and battery management system (BMS) wiring harnesses can be reused without rewiring. This dramatically reduces the labor cost and downtime window associated with a battery changeout during a planned maintenance cycle.

For facilities operating Shuangdeng 6-GFM-100 or 6-GFM-150 strings in parallel configurations, the 6-SPB-50B can be introduced as a supplementary or replacement cell within mixed-capacity strings, provided the BMS or charge controller supports capacity-matched float charging. The Lead-Carbon chemistry in the SPB series delivers a significantly lower internal resistance than conventional AGM cells, which translates to faster recharge acceptance — a critical advantage in solar-plus-storage or generator-backed UPS topologies where recharge windows are narrow.

Industrial control system integrators replacing backup power in Siemens SIMATIC S7-series control cabinets, ABB AC500 PLC enclosures, or Schneider Electric Modicon M340 rack systems will find the 6-SPB-50B compatible with standard 24VDC and 48VDC battery bus architectures when configured in series strings of 2 or 4 units respectively. The battery’s 10-year design life under float service conditions (at 25°C) aligns with the extended maintenance cycles preferred in unmanned substations and remote SCADA nodes.

Telecom operators migrating from older Narada 6-GFM-50 or CSB GPL12500 units in outdoor cabinet deployments will appreciate the 6-SPB-50B’s improved charge efficiency at elevated temperatures. The Lead-Carbon negative plate additive suppresses sulfation — the primary failure mode of VRLA batteries in high-temperature outdoor enclosures — extending service intervals and reducing total cost of ownership over a 5-year operational horizon.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete battery string replacement project rarely involves only the cells themselves. When migrating from a 6-GFM-50 or equivalent VRLA string to the 6-SPB-50B, procurement teams should simultaneously evaluate the condition of associated balance-of-system components. Inter-cell connectors and copper bus bars that have been in service for more than five years may exhibit oxidation at contact surfaces; replacing them with tin-plated copper flexible connectors rated for the new cell’s higher peak discharge current ensures the full performance benefit of the Lead-Carbon chemistry is realized.

Battery rack systems — particularly open-frame steel racks designed for 12V monobloc cells — are fully compatible with the 6-SPB-50B’s identical footprint. However, if the existing rack was sized for lighter AGM cells, the additional weight per cell (approximately 3 kg more than a standard 6-GFM-50) should be factored into structural load calculations, especially for multi-tier rack configurations holding 8 or more cells per shelf.

Charger and rectifier compatibility is straightforward: the 6-SPB-50B accepts the same IUoU (constant current / constant voltage / float) charge profile used by virtually all VRLA-compatible industrial chargers, including units from Emerson Network Power (now Vertiv), Delta Electronics, and Eltek. No firmware update or charge profile reprogramming is required when swapping from 6-GFM-50 to 6-SPB-50B in an existing charger-battery system.

For UPS applications — particularly in APC Smart-UPS, Eaton 9PX, or Huawei UPS2000 series cabinets — the 6-SPB-50B’s VRLA-compatible charge profile means the UPS internal charger will operate without modification. Battery runtime will be equivalent to the original 50Ah rating, and cycle life will be substantially extended, reducing the frequency of future battery replacement events.

Facilities integrating the 6-SPB-50B into solar energy storage systems alongside MPPT charge controllers (such as Victron SmartSolar or EPever Tracer series) should configure the controller’s battery type to “AGM” or “User-defined VRLA” with absorption voltage set to 14.4–14.7V and float voltage to 13.6V. The Lead-Carbon chemistry’s superior charge acceptance means the controller will reach absorption phase faster, improving daily energy harvest efficiency in partial-shade or variable-irradiance environments.

Retrofit Guidance FAQ

Q: Can I replace only some cells in my existing 6-GFM-50 string with 6-SPB-50B units?
A: Partial string replacement is technically possible but not recommended. Mixing Lead-Carbon and standard AGM cells in the same series string creates capacity and internal resistance mismatches that accelerate degradation of both cell types. For best results, replace the entire string simultaneously.

Q: Do I need to reprogram my PLC or SCADA system after replacing the batteries?
A: No. The 6-SPB-50B is a passive electrochemical cell with no communication interface. It presents the same electrical characteristics to your BMS, UPS, or charger as the original 6-GFM-50. No PLC logic changes, SCADA tag updates, or communication protocol modifications are required.

Q: Will the existing wiring and terminal connectors fit?
A: Yes. The 6-SPB-50B uses M6 bolt terminals with the same pitch and polarity orientation as the 6-GFM-50 and 6-GFM-50E. Existing ring-terminal cables, flexible inter-cell connectors, and bus bars can be reused. Inspect connector torque and re-torque to 4–6 N·m after installation.

Q: What is the recommended installation orientation?
A: The 6-SPB-50B is an AGM (absorbed glass mat) sealed cell and can be installed in any orientation — upright, on its side, or inverted — without electrolyte leakage. This flexibility is particularly useful in space-constrained control cabinet installations.

Q: How do I handle the weight difference during installation?
A: At approximately 21 kg per cell, the 6-SPB-50B is about 3 kg heavier than a standard 6-GFM-50. Use appropriate lifting equipment for rack installations above waist height. Verify that existing battery rack shelves are rated for the increased load before installation.

Q: What communication protocols are supported?
A: As a passive battery cell, the 6-SPB-50B has no embedded communication interface. Protocol-level battery monitoring (SNMP, Modbus, CAN bus) is handled by an external BMS or battery monitoring unit connected to the string, not by the individual cell. Your existing monitoring infrastructure requires no changes.

Warranty Assurance

Every Shuangdeng 6-SPB-50B unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each battery undergoes capacity verification testing to confirm it meets the rated 50Ah (C10) specification. Units that fail to achieve ≥95% of rated capacity are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3 business days of claim confirmation for customers in mainland China, and within 7 business days for international shipments. Defective units are collected at TOPNLMS’s expense for failure analysis. Warranty coverage includes manufacturing defects, premature capacity loss (below 60% of rated capacity within the warranty period under normal operating conditions), and terminal or case integrity failures.

Warranty is voided by: installation in environments exceeding 40°C continuous ambient temperature without derating, overcharge above 14.8V per cell, physical damage from improper handling, or use in applications outside the specified discharge rate range (C20 to C1).

For procurement teams requiring documentation, TOPNLMS provides a Certificate of Conformance (CoC), factory test report, and Shuangdeng original packing list with each shipment. Bulk orders of 10 units or more qualify for pre-shipment inspection coordination.

Stock is maintained in Xiamen, China, with standard lead time of 1–3 business days for in-stock units. Express international shipping via DHL, FedEx, or UPS is available for urgent replacement requirements.
