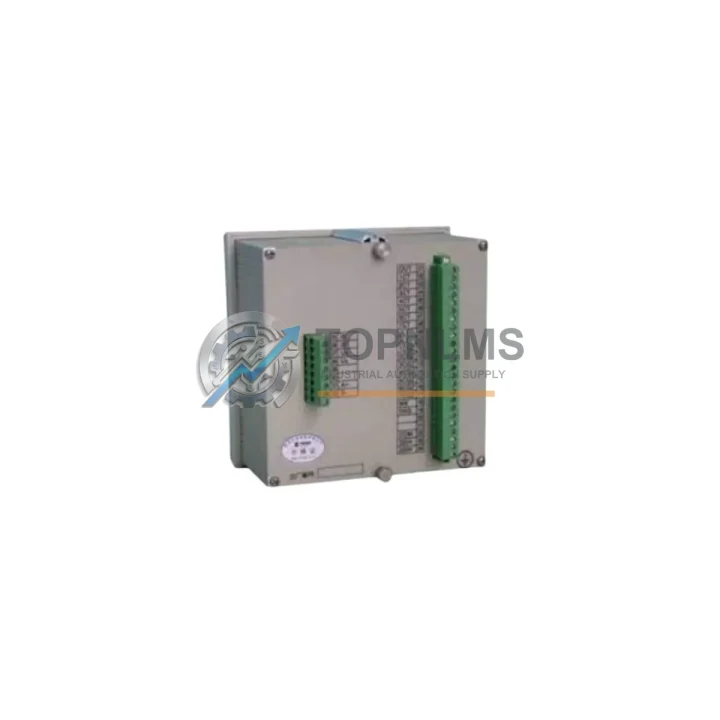

Shaanxi Zhongguan DWK3-110CD Original Industrial Spare DWK3 Compatible

Product Overview

Shaanxi Zhongguan DWK3-110CD Original Industrial Spare DWK3 Compatible: System Stability & Industrial Spare Maintenance Value

The Shaanxi Zhongguan DWK3-110CD is an original reactive power compensation controller from the DWK3 Series, engineered for industrial power distribution systems that demand precise power factor correction and long-term operational stability. In manufacturing plants, substations, and heavy-load electrical environments, reactive power imbalance is one of the leading causes of equipment overheating, transformer stress, and unexpected shutdowns. The DWK3-110CD addresses this directly by automatically monitoring and compensating reactive power in real time, keeping your power factor within optimal range and protecting downstream equipment from the cumulative damage of poor power quality.

For maintenance engineers managing aging power distribution infrastructure, sourcing an original DWK3-110CD spare is a critical step in both corrective and preventive maintenance planning. Unlike generic substitutes, the original DWK3-110CD is factory-calibrated to the DWK3 Series specification, ensuring seamless drop-in replacement without reconfiguration of existing compensation capacitor banks or relay logic. This is especially important in facilities where the compensation cabinet has been in service for five or more years and the controller is the single point of failure between stable power quality and costly production downtime.

Critical Technical Specs Table

Preventive Maintenance Strategy

A reactive power compensation controller does not operate in isolation. The DWK3-110CD sits at the heart of a compensation cabinet ecosystem, and its long-term reliability depends on the condition of every component in that cabinet and the broader power distribution loop. When scheduling a maintenance inspection or planning a corrective replacement of the DWK3-110CD, experienced maintenance engineers treat it as an opportunity to audit the entire compensation system.

Begin with the capacitor bank modules connected to the DWK3-110CD’s switching outputs. Capacitors degrade over time due to thermal cycling and voltage stress; a controller in perfect condition cannot compensate effectively if the capacitors it switches are operating below rated capacitance. Measure capacitance values and replace any unit showing more than 5% deviation from nameplate rating. At the same time, inspect the thyristor switching modules (TSC modules) or contactor-based switching relays that the DWK3-110CD drives. Worn contactors with pitted contacts introduce switching delays that cause the controller to misread reactive demand and hunt between switching steps, accelerating wear on both the controller and the capacitors.

Next, verify the integrity of the current transformer (CT) input circuit. The DWK3-110CD relies on accurate CT signals to calculate reactive power. A loose CT secondary connection, a shorted CT, or a mismatched CT ratio will cause persistent PF measurement errors that no controller calibration can correct. While inspecting the CT circuit, also check the voltage transformer (PT) or direct voltage sensing wiring for insulation degradation or loose terminal connections at the terminal blocks inside the compensation cabinet.

For facilities running the DWK3-110CD in a cabinet that also houses a power distribution fuse module or miniature circuit breakers (MCBs) on the capacitor branch circuits, verify that all protective devices are rated correctly for the capacitor inrush current. Undersized fuses are a common cause of nuisance tripping that is incorrectly attributed to controller failure. If the cabinet includes a harmonic filter reactor in series with the capacitor banks, inspect the reactor for signs of overheating or insulation breakdown, as harmonic-rich environments accelerate capacitor and controller aging alike.

Where the DWK3-110CD communicates upstream via RS-485 to a SCADA system or building energy management system, inspect the communication cable shielding and grounding at both ends. A floating shield or a ground loop on the RS-485 bus is a frequent source of intermittent controller faults that are difficult to diagnose without systematic cable inspection. If the facility uses a signal isolator on the RS-485 line, verify its power supply and isolation barrier integrity as part of the same inspection cycle.

Finally, document the controller’s current parameter settings — target power factor setpoint, switching delay, sensitivity threshold, and channel assignment — before replacement. This data, stored in the DWK3-110CD’s non-volatile memory, must be re-entered into the replacement unit during commissioning. Maintaining a parameter record sheet for every compensation controller in the facility is a low-cost practice that dramatically reduces commissioning time during emergency replacements.

Strategic Replacement Solutions

The DWK3-110CD is designed as a direct replacement for aging DWK3 Series controllers that have reached end of service life or have developed faults such as relay output failure, display malfunction, or loss of automatic switching function. Because the DWK3 Series uses a standardized panel cutout and wiring terminal layout, the DWK3-110CD can be installed in an existing compensation cabinet without mechanical modification, preserving the original cabinet structure and wiring harness.

For facilities managing a fleet of compensation cabinets across multiple production lines or substations, stocking one or two DWK3-110CD units as on-shelf spares is a proven strategy for reducing mean time to repair (MTTR). A reactive power compensation failure that goes unaddressed for more than a few hours can result in power factor penalty charges from the utility, transformer overloading, and voltage instability that affects sensitive production equipment. Having an original DWK3-110CD on hand converts what could be a multi-day procurement delay into a same-shift repair.

The original DWK3-110CD also offers an advantage over field-repaired or third-party substitute controllers in that it carries the manufacturer’s calibration and quality assurance, ensuring that switching thresholds, timing parameters, and relay output ratings conform to the DWK3 Series design specification. This is particularly important in facilities subject to electrical safety audits or ISO 50001 energy management certification, where documented use of original spare parts supports compliance records.

Every DWK3-110CD unit shipped from TOPNLMS undergoes pre-shipment functional testing, is packaged in anti-static protective packaging, and is accompanied by a 12-month warranty covering manufacturing defects. Shipment is available worldwide, with expedited options for urgent maintenance requirements.

Support FAQ

Q1: What is the expected service life of the DWK3-110CD, and when should I plan a replacement?
The DWK3-110CD is designed for continuous industrial service. Under normal operating conditions (within rated voltage and temperature range), the controller’s relay outputs and display components are the most common wear items. A proactive replacement is recommended if the unit has been in service for 8–10 years, if relay chatter or display errors are observed, or if automatic switching has become erratic. Stocking a spare before failure occurs eliminates unplanned downtime.

Q2: Is the DWK3-110CD compatible with my existing compensation cabinet wiring and capacitor banks?
Yes, provided your cabinet is built around the DWK3 Series platform. The DWK3-110CD uses the standard DWK3 terminal layout and panel cutout dimensions, allowing direct installation without rewiring. Verify the CT ratio and voltage input wiring match the replacement unit’s input specifications before commissioning. If your cabinet uses a non-standard CT ratio, the controller’s CT ratio parameter must be set accordingly during initial configuration.

Q3: What pre-shipment testing does the DWK3-110CD undergo, and what does the 12-month warranty cover?
Each DWK3-110CD unit is functionally tested prior to shipment to verify display operation, relay output switching, and communication port integrity. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated environmental conditions. Warranty claims are processed through TOPNLMS with replacement or repair at our discretion.

Q4: How do I verify the DWK3-110CD is the correct replacement for my existing controller?
Confirm the following before ordering: (1) the existing controller model number matches DWK3-110CD or is a DWK3 Series 110V AC variant; (2) the panel cutout dimensions match the DWK3 Series standard; (3) the number of switching output channels required matches the DWK3-110CD’s channel count; (4) the CT input ratio and voltage sensing method are compatible. If you are uncertain, contact us at [email protected] with a photo of the existing controller nameplate and cabinet wiring diagram for pre-sales technical confirmation.
