SEW-EURODRIVE DFI21B Replacement for MOVIDRIVE B: Seamless Interbus Upgrade & Migration

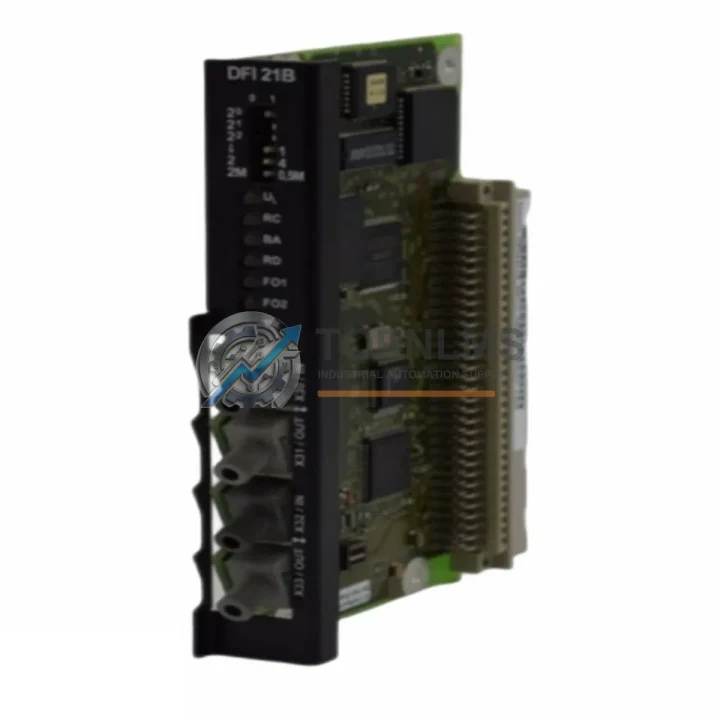

The SEW-EURODRIVE DFI21B is a dedicated Interbus fieldbus interface option card designed for the MOVIDRIVE B series of AC variable-speed drives. As legacy MOVIDRIVE MDX60B and MDX61B installations age and original DFI21B units become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to restore communication between their Interbus master controllers and drive systems — without triggering a full drive replacement or rewriting established PLC programs.

At TOPNLMS, we stock tested, verified DFI21B modules ready for immediate dispatch. Whether you are executing a like-for-like spare replacement, consolidating your drive inventory, or planning a phased migration from an older MOVIDRIVE MDX60A or MOVITRAC B platform, this guide covers everything you need to evaluate compatibility, plan the retrofit, and place a confident purchase order.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DFI21B retrofit rarely involves the interface card alone. In most MOVIDRIVE B installations, the Interbus option card works in close coordination with several other system components that may also require attention during a migration or spare-parts refresh.

When the DFI21B is installed in the option slot B of an MDX61B drive unit, the drive’s internal 24 V logic supply — typically provided by the UWS21B serial interface module or the onboard X13 terminal — must remain stable. If your site is simultaneously upgrading the drive’s encoder feedback, the DEH21B (HTL/TTL encoder option) or DER21B (resolver option) occupies option slot A and must be confirmed compatible with the installed firmware revision before the DFI21B is seated.

For installations where the Interbus master is a Siemens S7-300 or S7-400 PLC equipped with a CP 5431 FMS/DP or a Phoenix Contact Interbus master card, the DFI21B’s ring topology wiring — IN port from the upstream device, OUT port to the downstream slave — is unchanged. The IBS CMD G4 HI or equivalent Interbus master configuration tool will detect the DFI21B as a standard Interbus device with the same device ID as the previous generation, eliminating the need to rebuild the bus configuration from scratch.

Sites running MOVITOOLS MotionStudio for drive parameterization should ensure the PC interface connection — typically via a USB11A or UWS21B RS-485 to USB converter — is available during commissioning. This allows engineers to verify the DFI21B’s process data configuration, set the correct PD word count, and confirm the Interbus address assignment without interrupting production on adjacent drives.

If the retrofit is part of a broader control cabinet modernization, consider whether the existing MOVIDRIVE B power section — the MDX60B chassis — requires a matching DFP21B PROFIBUS-DP option or a DFE24B EtherNet/IP option for future protocol migration. Stocking both the DFI21B for the current Interbus segment and a spare DFE32B EtherNet/IP card provides a clear upgrade path when the plant eventually transitions away from Interbus.

Terminal wiring at the drive’s X1 power terminals and X13 control terminals is unaffected by the DFI21B swap. However, if the cabinet also houses a BW…-T braking resistor or a HD.. line choke, verify that the drive’s output current rating and the braking resistor’s continuous power rating remain within specification after any firmware update applied during the retrofit.

For multi-axis systems where several MDX61B drives share a common Interbus ring, replacing the DFI21B on one drive requires the ring to be temporarily broken and re-closed. Coordinate this with the Interbus master’s bus recovery sequence to minimize the impact on other axes. A spare DFI21B held in local inventory — rather than ordered on demand — is the most effective way to reduce mean time to repair in these topologies.

Retrofit Guidance FAQ

Q: Can I install the DFI21B without modifying my existing Interbus wiring?
A: In most cases, yes. The DFI21B uses standard DB9 connectors for the Interbus IN and OUT ports. If your existing cable assembly uses the same DB9 pinout (Interbus standard per IEC 61158), no rewiring is required. Verify the shield connection at the DB9 shell is intact to maintain EMC compliance.

Q: Will my Siemens or Rockwell PLC program need to be modified?
A: No PLC program changes are typically required, provided the process data word count configured on the DFI21B matches the original module. The Interbus master sees the same device profile. Confirm the PD word count in MOVITOOLS MotionStudio after installation.

Q: Which MOVIDRIVE B firmware version is required?
A: SEW-EURODRIVE recommends MOVIDRIVE B firmware V8.x or later for full DFI21B feature support. Firmware can be updated via the USB11A interface and MOVITOOLS MotionStudio without hardware changes.

Q: Is the DFI21B compatible with MOVIDRIVE MDX60A (the older A-series)?
A: No. The DFI21B is designed exclusively for the MOVIDRIVE B (MDX60B / MDX61B) option slot B. For MDX60A drives, the correct Interbus option is the DFI11B. If you are migrating from an A-series drive to a B-series drive, the DFI21B is the correct card for the new drive.

Q: How much physical space does the DFI21B require in the control cabinet?
A: The DFI21B is an internal option card that slots directly into the MOVIDRIVE B drive unit. It does not occupy additional DIN rail space. The DB9 connectors protrude from the drive’s front face; ensure at least 80 mm of cable clearance in front of the drive.

Q: What happens to the Interbus ring during the card swap?
A: The Interbus ring must be broken at the drive being serviced. The master will report a bus error on the affected segment. After the DFI21B is installed and the drive is powered on, the master automatically re-integrates the device. Total downtime for the swap is typically under 30 minutes for an experienced technician.

Q: Can the DFI21B be used alongside a PROFIBUS or EtherNet/IP option in the same drive?
A: No. Only one fieldbus option card can be active in option slot B at a time. If dual-protocol support is required, consult SEW-EURODRIVE’s system architecture documentation for gateway solutions.
