SEMITOOL 61589-33 Ruggedized Manifold Assembly for Harsh Environments

Product Overview

SEMITOOL 61589-33 Ruggedized Manifold Assembly for Harsh Environments

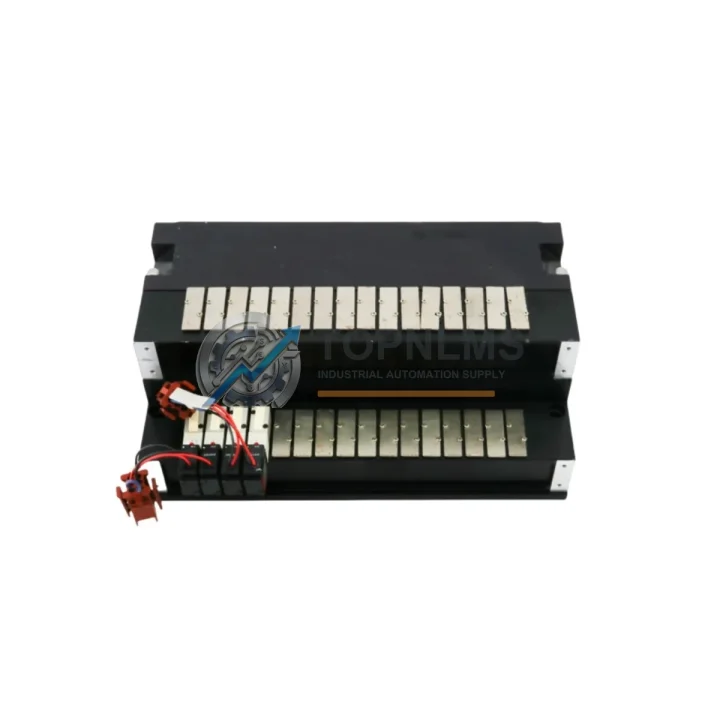

The SEMITOOL 61589-33 (46CM) Manifold Assembly — full reference 802-5134B / N-2304-1-K00AA for the AS-820 Wet Process System — is engineered to sustain continuous, high-throughput semiconductor fabrication under the most demanding chemical and environmental conditions. Designed for integration within SEMITOOL’s AS-820 platform, this 46 cm manifold assembly governs the precise distribution of process chemistries — including HF, H₂O₂, SC-1, and SC-2 blends — across multiple wafer-processing chambers simultaneously, ensuring uniform fluid delivery, zero cross-contamination, and repeatable etch or clean results across every production cycle.

In semiconductor wet bench environments, manifold assemblies are the circulatory backbone of the process tool. They operate under continuous chemical exposure, elevated temperatures, and mechanical vibration from pump cycles and robotic wafer handlers. The 61589-33 is constructed from chemically inert, high-purity fluoropolymer-compatible materials that resist degradation from aggressive acids and oxidizers. Its precision-machined flow channels maintain consistent flow coefficients across all ports, eliminating the pressure imbalances that cause non-uniform wafer processing — a critical reliability factor in 200 mm and legacy node fabs where process repeatability directly governs yield.

Downtime in a wet process bay is extraordinarily costly. A single manifold failure can halt an entire process module, cascading into wafer scrap, tool qualification delays, and missed production targets. Maintaining a qualified spare of the SEMITOOL 61589-33 in your critical spares inventory is a proven strategy for minimizing mean time to repair (MTTR) and protecting fab uptime commitments.

Rugged Specifications Table

Comprehensive Protection Solutions

The AS-820 wet process system is a tightly integrated platform where every subsystem depends on the reliable operation of its neighbors. The 61589-33 manifold assembly works in concert with the SEMITOOL AS-820 chemical delivery pump module to maintain stable flow rates across all process ports. Upstream, the SEMITOOL process controller PCB (typically the 802-series control board) governs valve sequencing and monitors flow interlocks — any manifold degradation that causes pressure anomalies will trigger fault states at the controller level, making manifold integrity essential to uninterrupted automated operation.

On the fluid-handling side, the manifold interfaces directly with SEMITOOL AS-820 pneumatic valve assemblies and inline chemical filters that protect downstream wafer chambers from particulate contamination. The SEMITOOL drain manifold and exhaust plenum assembly works in tandem with the supply manifold to maintain balanced pressure across the wet bench enclosure, preventing chemical vapor accumulation that could compromise both process quality and operator safety.

For facilities running multiple AS-820 tools in parallel, the SEMITOOL central chemical distribution panel and associated bulk chemical supply regulators feed into each tool’s manifold network. Ensuring that the 61589-33 is in optimal condition at each tool is therefore a system-level reliability decision, not merely a component-level one. Facilities also commonly pair manifold replacements with preventive replacement of SEMITOOL O-ring and seal kits (specific to the AS-820 chemical wetted path) and SEMITOOL spray nozzle assemblies to restore the entire fluid delivery path to OEM performance in a single planned maintenance window.

Where the AS-820 is integrated into a broader fab automation network, the SEMITOOL SECS/GEM communication interface module provides real-time tool status reporting to the fab MES, enabling predictive maintenance scheduling that can flag manifold-related flow anomalies before they escalate to unplanned downtime.

Application in Critical Infrastructure

The SEMITOOL AS-820 platform — and by extension the 61589-33 manifold assembly — is deployed across a wide range of critical semiconductor manufacturing environments. In 200 mm legacy node fabs producing power semiconductors, MEMS devices, and compound semiconductors, the AS-820 handles the wet cleaning and etching steps that are foundational to device yield. These facilities often operate on extended production schedules with minimal planned downtime, making the availability of qualified spare manifold assemblies a direct operational risk management priority.

In advanced packaging and back-end-of-line (BEOL) facilities, wet process tools like the AS-820 are used for wafer thinning preparation, bump cleaning, and underfill surface conditioning. The chemical aggressiveness of these processes — particularly those involving strong oxidizers and fluoride-based etchants — places maximum stress on manifold materials and sealing surfaces, accelerating wear relative to front-end applications.

Research and development fabs at universities, national laboratories, and corporate R&D centers frequently rely on SEMITOOL AS-820 tools for their flexibility and process breadth. In these environments, the manifold assembly may be exposed to a wider variety of experimental chemistries, making chemical compatibility and structural integrity even more critical. Rapid access to replacement parts like the 61589-33 is essential for maintaining research continuity and meeting project milestones.

In compound semiconductor fabs producing GaAs, InP, and GaN devices for defense, telecommunications, and photonics applications, wet process reliability is directly linked to national security and supply chain resilience. Procurement teams in these facilities prioritize suppliers who can demonstrate consistent part availability, documented quality control, and reliable warranty support — all of which TOPNLMS provides for the SEMITOOL 61589-33.

Security & Quality FAQ

Q1: What warranty coverage is provided for the SEMITOOL 61589-33?
All SEMITOOL 61589-33 manifold assemblies supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides rapid replacement support to minimize your tool downtime.

Q2: How is the part tested and verified before shipment?
Every unit undergoes a pre-shipment inspection protocol that includes visual examination for chemical damage, seal integrity checks, dimensional verification of the 46 cm assembly length, and pressure testing of all flow ports. Parts that do not meet OEM-equivalent performance standards are not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 61589-33 compatible with all AS-820 system configurations?
The 61589-33 (46CM) manifold assembly is designed for the SEMITOOL AS-820 wet process platform and is cross-referenced to sub-assemblies 802-5134B and N-2304-1-K00AA. Compatibility with specific AS-820 tool configurations (single-wafer vs. batch, specific chemistry modules) should be confirmed against your tool’s BOM. TOPNLMS technical support can assist with compatibility verification prior to order placement — contact [email protected] with your tool serial number and configuration details.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS maintains ongoing sourcing relationships for SEMITOOL AS-820 series components and can support blanket purchase orders, scheduled deliveries, and consignment stocking arrangements for high-volume or multi-tool facilities. For long-term supply agreements or volume pricing, contact our procurement team directly.
