SCHUMACHER 1731-0049 Replacement Upgrade Solution

Product Overview

SCHUMACHER 1731-0049 Replacement Upgrade Solution: Seamless Transition for Legacy Pneumatic Control Systems

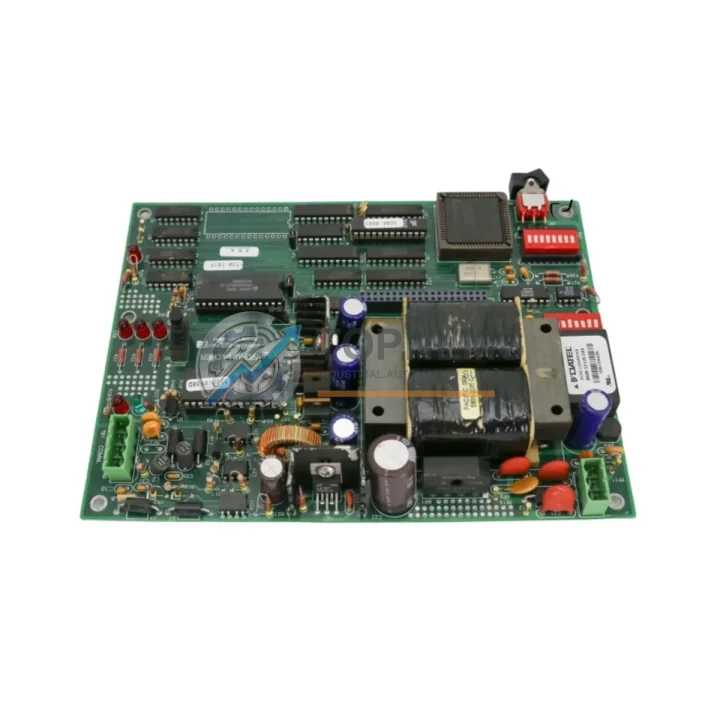

The SCHUMACHER 1731-0049 Pneumatic System CPU Board is a critical processing unit used in legacy pneumatic control architectures across industrial automation, press control, and material handling applications. As original SCHUMACHER 1731-0049 units reach end-of-life or become increasingly difficult to source, facilities engineering teams face mounting pressure to maintain uptime without triggering a full system overhaul. This replacement and upgrade solution is engineered to deliver a smooth, low-risk migration path — preserving existing wiring infrastructure, control cabinet layouts, and communication configurations while restoring full system functionality.

Our stock of SCHUMACHER 1731-0049 boards is sourced from verified industrial supply channels and subjected to functional testing prior to dispatch. Each unit ships with full cross-reference documentation covering equivalent part numbers including 1730-7015, 43H4A-2.33-072, 853-126733-021, and DIA 42.5CM 1K-6Z2-265, enabling procurement teams to confirm compatibility against existing maintenance records and BOM sheets without ambiguity.

Whether your facility is executing a planned retrofit, responding to an unplanned board failure, or building a strategic spare-parts inventory ahead of a scheduled shutdown, this solution is designed to minimize engineering hours, reduce commissioning risk, and restore production continuity with confidence.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SCHUMACHER 1731-0049 board replacement rarely occurs in isolation. In most retrofit scenarios, the CPU board swap is part of a broader system stabilization effort that touches multiple components within the same control cabinet or pneumatic control rack. During the migration process, engineering teams commonly address adjacent components to ensure the entire system operates reliably post-commissioning.

For facilities running SCHUMACHER pneumatic control systems, the SCHUMACHER 1730-7015 serves as the primary cross-reference board and is often stocked alongside the 1731-0049 as a validated spare. In systems where the CPU board failure has cascaded to adjacent I/O modules, the SCHUMACHER I/O expansion module for the same rack generation should be inspected and replaced if signal integrity is compromised. The SCHUMACHER backplane bus connector and rack termination resistors are frequently overlooked during board swaps but are critical to stable CPU-to-I/O communication — particularly in older pneumatic press control architectures where connector oxidation is common.

On the power supply side, the SCHUMACHER 24VDC control power supply module should be load-tested before commissioning the replacement CPU board, as an aging PSU operating near its rated capacity can cause intermittent resets on a newly installed board. If the control cabinet also houses a SCHUMACHER operator interface panel or legacy HMI terminal, verify that the communication cable between the HMI and the CPU board — typically a proprietary RS-232 or RS-485 serial link — is intact and properly terminated.

For systems that have been partially modernized, integrators sometimes pair the SCHUMACHER CPU board with a signal isolator module to bridge legacy analog I/O signals to newer distributed control infrastructure. In pneumatic press or forming machine applications, the SCHUMACHER servo valve driver card and pressure transducer signal conditioning board are also common co-replacement items, as these components share the same backplane and are subject to similar thermal and vibration stress cycles. Ensuring all these components are verified or replaced as part of a planned shutdown minimizes the risk of a secondary failure shortly after the CPU board is restored to service.

Retrofit Guidance FAQ

Q: Can I reuse the existing field wiring when replacing the SCHUMACHER 1731-0049?
A: Yes. The replacement board maintains the same terminal block pinout as the original 1731-0049. No rewiring is required for standard I/O connections. Verify terminal torque specifications against the original SCHUMACHER wiring diagram before powering up.

Q: Do I need to reload the control program after the board swap?
A: Yes. The CPU board does not retain the application program after removal. You will need to re-upload the program using the original SCHUMACHER programming software and cable. Ensure you have a verified backup of the current program before beginning the swap.

Q: Is the communication protocol compatible with the rest of the SCHUMACHER system?
A: Yes. The replacement 1731-0049 uses the same proprietary SCHUMACHER internal bus protocol. No changes to communication parameters, baud rate settings, or node addressing are required.

Q: Will the board fit in the existing control cabinet without modification?
A: Yes. The 1731-0049 replacement maintains the original form factor and mounting footprint. It installs directly into the existing rack slot or backplane without requiring cabinet modifications or additional mounting hardware.

Q: What if my system uses the 1730-7015 cross-reference part number?
A: The 1730-7015 is a validated cross-reference for the 1731-0049. Both part numbers refer to functionally equivalent boards within the SCHUMACHER pneumatic CPU board family. Our team can confirm compatibility against your specific system revision before shipment.

Q: How do I verify the board is functioning correctly after installation?
A: After re-uploading the program, perform a full I/O check using the SCHUMACHER diagnostic software. Verify all pneumatic valve outputs respond correctly to commanded states, and confirm that all analog input signals are within expected ranges before returning the system to production.

Warranty Assurance

Every SCHUMACHER 1731-0049 replacement board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection to verify board integrity, connector condition, and basic operational parameters. This inspection process is documented and available upon request for quality assurance records.

In the event of a warranty claim, TOPNLMS provides a direct replacement or repair service with a target response time of 3–5 business days from claim receipt. Our after-sales team is reachable via email and phone to support troubleshooting, installation guidance, and warranty processing without requiring third-party intermediaries.

For procurement teams managing critical spare parts inventories, we offer multi-unit purchasing with consolidated shipping from our Xiamen warehouse. Bulk orders are eligible for priority processing and can be accompanied by test reports and certificate of conformance documentation to satisfy internal quality management requirements.

We understand that unplanned downtime in pneumatic control systems carries significant operational and financial consequences. Our commitment is to provide verified, ready-to-install replacement boards with the documentation, support, and warranty coverage needed to make every retrofit a low-risk, high-confidence decision.
