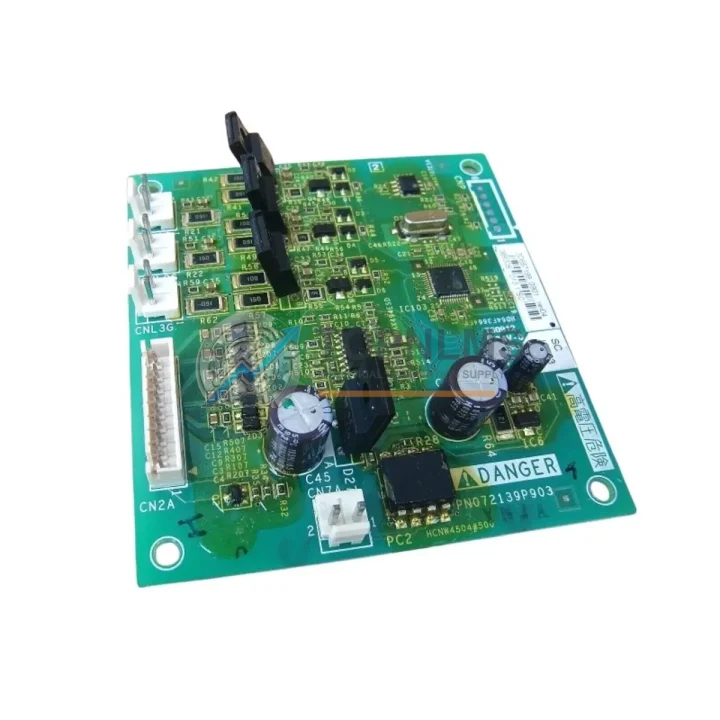

Schneider Electric PN072139P903 Ruggedized Thyristor Trigger Module

Product Overview

Schneider Electric PN072139P903 Ruggedized Thyristor Trigger Module: Industrial Resilience for Harsh Environments

The Schneider Electric PN072139P903 is a precision-engineered thyristor trigger board designed for deployment in the most demanding industrial environments. Purpose-built for the Altivar ATV61 and Altivar ATV71 variable frequency drive (VFD) series, this module governs the gate firing sequence of the thyristor power stack, ensuring accurate phase control and stable motor speed regulation under continuous, high-load operating conditions. Whether installed in a steel mill, petrochemical plant, water treatment facility, or underground mining operation, the PN072139P903 delivers the signal integrity and thermal resilience that mission-critical automation demands.

Industrial facilities operating continuous production lines cannot afford unplanned downtime. The PN072139P903 is engineered to sustain reliable operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI). Its robust PCB construction, conformal coating, and shielded signal traces ensure that thyristor gate pulses remain precise and noise-free even when the surrounding control cabinet is subjected to the electrical transients common in heavy industry.

Rugged Specifications Table

Comprehensive Protection Solutions

The PN072139P903 thyristor trigger board does not operate in isolation — it is a critical node within a broader drive and automation architecture. In a typical ATV71 installation driving a high-power pump or compressor motor, the trigger board interfaces directly with the Schneider Electric ATV71HD75N4 power module and relies on synchronized signals from the ATV71 control card (VW3A3210) to execute precise firing angles. Any degradation in trigger timing propagates immediately to motor torque ripple and thermal stress on the IGBT or thyristor stack.

In control cabinets where the ATV61 or ATV71 drives are integrated alongside Schneider Electric Modicon M340 or Modicon Premium PLC systems, the trigger board’s signal quality directly influences the quality of closed-loop speed feedback processed by the PLC’s analog I/O modules. Facilities running Profibus DP or CANopen communication backbones between the drive and the PLC will find that a faulty trigger board introduces latency and instability that no communication module tuning can compensate for.

For installations where the ATV61 or ATV71 is paired with Schneider Electric Zelio Logic smart relays or TeSys D-series motor protection relays, the trigger board’s stable gate firing ensures that relay trip thresholds are not falsely triggered by current spikes caused by misfiring thyristors. Similarly, in systems using Schneider Electric Acti9 iC60N circuit breakers for upstream protection, a correctly functioning PN072139P903 prevents nuisance tripping caused by harmonic distortion from irregular thyristor switching.

Power quality in the control cabinet is further protected when the PN072139P903 operates alongside Schneider Electric Phaseo ABL8 series 24VDC power supplies, which provide stable auxiliary power to the drive’s control electronics. In multi-drive panels, the trigger board’s EMI suppression characteristics reduce conducted interference that could otherwise affect neighboring Schneider Electric Altistart ATS48 soft starters or Altivar Process ATV630 drives sharing the same busbar.

For safety-critical applications, the PN072139P903 is commonly deployed in systems that include Schneider Electric Preventa XPS safety modules and Harmony XB4 emergency stop assemblies, where the integrity of the drive’s power switching directly determines whether the safety system can achieve the required SIL or PLe performance level during a controlled stop sequence.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the ATV61 and ATV71 drives equipped with the PN072139P903 trigger board are deployed to control submersible pump motors, gas compressor drives, and wellhead injection systems. These environments demand zero tolerance for spurious trips — a misfiring thyristor trigger board in a pipeline compressor station can cause a process shutdown that takes hours to safely restart. The PN072139P903’s robust gate pulse generation ensures that thyristor conduction angles remain stable across the full load range, from light-load standby to full-rated torque.

In mining and mineral processing, conveyor belt drives, ball mill motors, and slurry pump systems operate around the clock in environments saturated with coal dust, silica particulate, and mechanical vibration. The conformal-coated PCB of the PN072139P903 resists conductive dust ingress that would otherwise cause tracking faults between signal traces, while its vibration-resistant component mounting maintains electrical continuity under the constant mechanical shock transmitted through the drive enclosure.

In power generation and grid infrastructure, the ATV71 drives controlled by the PN072139P903 are used in cooling water pump systems, induced draft fan drives, and auxiliary motor control centers. Grid-connected facilities are particularly sensitive to harmonic injection from poorly controlled thyristor drives; the PN072139P903’s precise firing angle control minimizes low-order harmonic content, reducing the risk of transformer overheating and capacitor bank resonance.

In water and wastewater treatment, variable-speed pump drives must operate continuously for months without maintenance intervention. The PN072139P903’s extended temperature tolerance and humidity resistance make it suitable for pump station control panels located in partially outdoor or underground environments where condensation and temperature cycling are unavoidable.

In metallurgy and steel production, rolling mill drives and ladle transfer car motors demand precise torque control at low speeds. The PN072139P903 provides the gate timing accuracy required for smooth low-speed operation, preventing the torque pulsations that cause mechanical stress on gearboxes and couplings in these high-inertia drive systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the PN072139P903?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its thyristor gate triggering function within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery and applies to both new and refurbished units that have passed our pre-shipment functional test protocol.

Q2: How is the PN072139P903 tested before shipment?
Every PN072139P903 unit undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for PCB damage, component-level continuity testing, functional bench testing using an ATV61/ATV71-compatible test rig to verify gate pulse timing and amplitude, and final ESD-safe packaging in anti-static foam-lined cartons. A test report is available upon request for quality-critical procurement processes.

Q3: Is the PN072139P903 compatible with all ATV61 and ATV71 power ratings?
The PN072139P903 is designed as an OEM-equivalent replacement for the thyristor trigger board used across the ATV61 and ATV71 drive families. Compatibility depends on the specific drive power rating and hardware revision. TOPNLMS technical support can verify compatibility against your drive’s nameplate data and internal hardware revision code before order confirmation. Please provide your drive’s full model reference when enquiring.

Q4: Can TOPNLMS support long-term or repeat supply of the PN072139P903?
Yes. TOPNLMS maintains dedicated stock of high-demand Schneider Electric ATV61 and ATV71 spare parts, including the PN072139P903, to support planned maintenance programs, emergency breakdown supply, and annual spare parts contracts. For facilities managing multiple ATV61/ATV71 drives, we offer volume pricing and reserved stock agreements to ensure parts availability throughout the drive’s operational lifecycle. Contact our technical sales team to discuss your site’s spare parts strategy.
