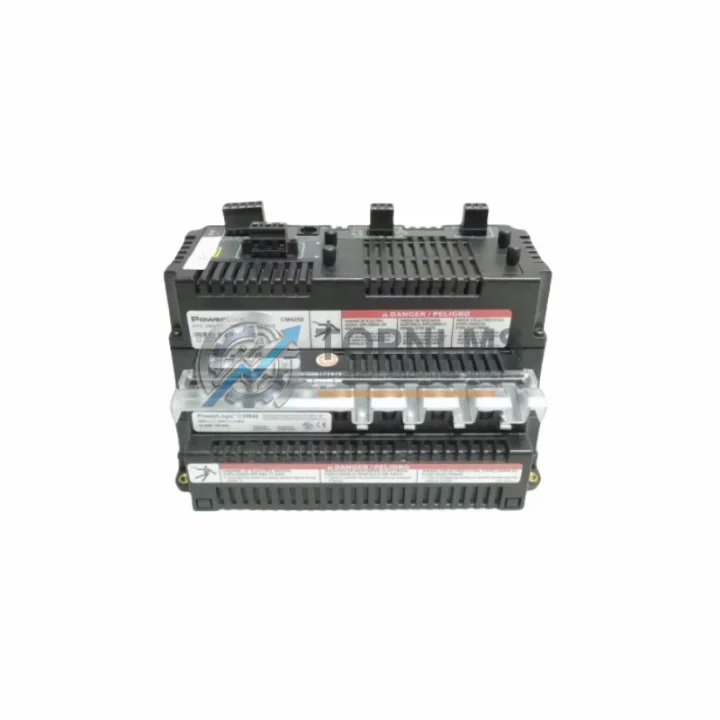

Schneider Electric CM4250 CVM42 Ruggedized Power Monitor

Product Overview

Schneider Electric CM4250 CVM42 Ruggedized Power Monitor: Industrial Resilience for Harsh Environments

The Schneider Electric CM4250 CVM42 is a high-performance power and energy monitor from the renowned PowerLogic series, engineered to deliver continuous, accurate measurement in the most demanding industrial environments. Whether deployed in high-temperature substations, dust-laden mining facilities, high-humidity water treatment plants, or vibration-intensive heavy manufacturing lines, the CM4250 CVM42 maintains measurement integrity and operational stability where lesser instruments fail. Its ruggedized design philosophy reflects Schneider Electric’s commitment to industrial-grade reliability — making it a trusted choice for engineers and procurement teams managing critical infrastructure worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The CM4250 CVM42 does not operate in isolation — it is a cornerstone component within a broader Schneider Electric PowerLogic ecosystem designed for total power quality management and system protection. In a typical industrial control cabinet, the CM4250 CVM42 works alongside the Schneider Electric PM5350 PowerLogic Power Meter for upstream substation-level monitoring, while the iEM3255 Energy Meter handles branch-circuit sub-metering at the distribution level. Together, these instruments provide a layered visibility architecture across the entire power chain.

For protection and switching, the CM4250 CVM42 integrates seamlessly with Schneider Electric Masterpact NW/NT series circuit breakers via Modbus RTU, enabling real-time load shedding and fault response. In PLC-controlled environments, the monitor’s RS-485 output connects directly to Schneider Electric Modicon M340 or M580 PLC I/O modules, feeding live power data into the control logic for automated demand management. The Modicon STB NIP 2212 Ethernet network interface module can bridge the RS-485 signal to an Ethernet backbone, ensuring compatibility with modern SCADA and EMS platforms.

On the power supply side, the CM4250 CVM42’s auxiliary input is typically fed by a Schneider Electric Phaseo ABL8 series 24 V DC power supply, which itself is rated for wide-temperature industrial operation. For installations requiring surge and transient protection, the Schneider Electric Acti9 iQuick PRD surge protection device is recommended upstream of the metering panel. In high-vibration environments such as mining conveyors or offshore platforms, terminal connections are secured using Schneider Electric Linergy TE terminal blocks, which maintain contact integrity under continuous mechanical stress. Where safety relay logic is required — for example, in emergency stop circuits monitored by the CM4250 — the Schneider Electric Preventa XPSAL safety relay module provides certified SIL 2 / PLd protection coordination.

Application in Critical Infrastructure

In oil and gas upstream facilities, the CM4250 CVM42 is deployed in motor control centers (MCCs) monitoring compressor drives, pump motors, and wellhead control panels. Its high EMI immunity ensures accurate readings even in the presence of variable frequency drives (VFDs) and high-power switching transients common in these environments. Operators rely on its THD measurement capability to detect harmonic distortion introduced by non-linear loads, enabling proactive power quality management before equipment damage occurs.

In underground mining operations, where dust ingress, humidity, and mechanical vibration are constant challenges, the CM4250 CVM42’s robust panel-mount construction and wide operating temperature range make it a preferred metering solution for main distribution boards and section switchgear. Its Modbus RTU interface allows integration with mine-wide SCADA systems for centralized energy accounting and regulatory compliance reporting.

At water treatment and pumping stations, the monitor tracks energy consumption across multiple pump sets, supporting pump scheduling optimization and reducing peak demand charges. Its multi-tariff energy recording capability is particularly valuable for utilities operating under time-of-use (TOU) electricity pricing structures.

In metallurgical and steel plants, where arc furnaces and rolling mills generate severe voltage fluctuations and harmonic pollution, the CM4250 CVM42 provides the measurement accuracy and noise immunity required for reliable power quality auditing. Plant engineers use its data logs to correlate power events with process anomalies, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

For power generation and grid-tie applications, including co-generation plants and renewable energy integration points, the CM4250 CVM42 serves as the revenue-grade metering interface between the generator output and the utility interconnection, satisfying both internal energy management and external billing requirements.

Security & Quality FAQ

Q1: Does the CM4250 CVM42 come with a warranty, and what does it cover?
Yes. Every CM4250 CVM42 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing prior to shipment, including communication port verification, measurement accuracy spot-checks, and display functionality confirmation. Warranty claims are processed promptly with replacement or repair support.

Q2: How do you verify compatibility with my existing Schneider Electric PowerLogic system?
The CM4250 CVM42 uses standard Modbus RTU over RS-485, which is natively supported by all Schneider Electric PowerLogic EGX communication gateways, Modicon PLC series, and third-party SCADA platforms. TOPNLMS technical staff can assist with register map documentation, baud rate configuration, and integration guidance. For non-standard architectures, we recommend sharing your system topology for a pre-sale compatibility review at no charge.

Q3: What is the lead time and shipping arrangement for the CM4250 CVM42?
In-stock units are dispatched within 1–3 business days from our Xiamen, China warehouse. International shipments are handled via DHL Express, FedEx International Priority, or sea freight for bulk orders. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard. Expedited shipping is available upon request for urgent maintenance and breakdown scenarios.

Q4: Can TOPNLMS support long-term supply continuity for the CM4250 CVM42?
Yes. TOPNLMS maintains strategic stock of high-demand Schneider Electric PowerLogic meters including the CM4250 CVM42 to support ongoing maintenance, spare parts programs, and planned replacement cycles. For customers managing large installed bases, we offer blanket purchase agreements and reserved inventory arrangements to guarantee supply continuity even during periods of manufacturer lead time extension or product transition. Contact our team to discuss your long-term procurement requirements.
