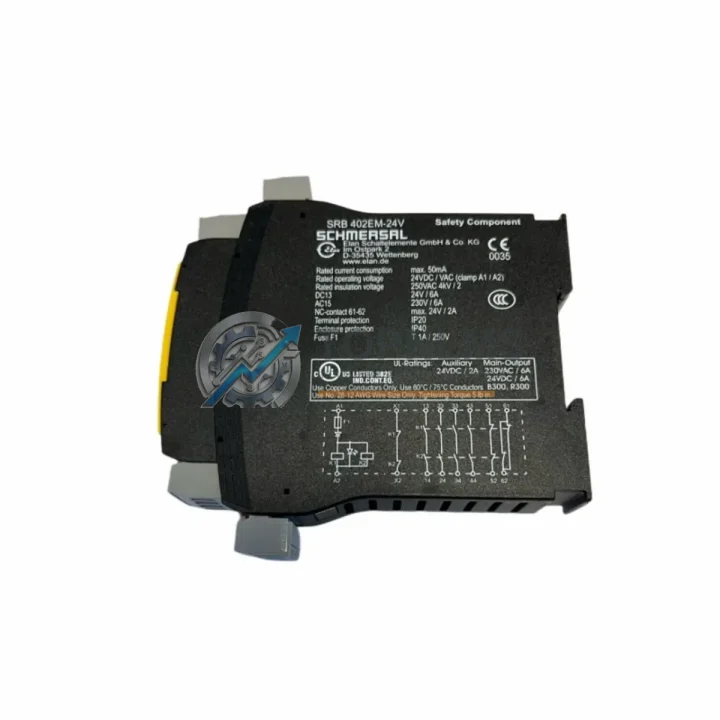

SCHMERSAL SRB402EM Replacement/Upgrade Solution for SRB Series

Product Overview

SCHMERSAL SRB402EM Replacement/Upgrade Solution for SRB Series: Smooth Transition & Legacy System Compatibility

When your existing SCHMERSAL SRB Series safety relay reaches end-of-life or a legacy emergency stop controller fails on the production floor, unplanned downtime is the immediate risk. The SCHMERSAL SRB402EM is a direct-fit safety relay module engineered for seamless drop-in replacement within SRB Series safety circuits, offering plant engineers and maintenance teams a reliable, code-compliant upgrade path without rewiring, reprogramming, or significant cabinet rework.

The SRB402EM is a dual-channel safety relay module designed to monitor emergency stop pushbuttons, safety gate switches, and light curtain output contacts in accordance with EN ISO 13849-1 (up to PLe / Cat. 4) and IEC 62061 (SIL 3). Its compact DIN-rail footprint matches the mechanical envelope of earlier SRB-generation modules, meaning existing cable ducts, terminal blocks, and mounting rails in your control cabinet require no modification. The 24 V DC supply input is fully compatible with standard SCHMERSAL PSU modules and third-party 24 V rail power supplies already installed in the panel.

For facilities migrating from older SCHMERSAL SRB201, SRB301, or SRB301LC modules, the SRB402EM preserves the familiar screw-terminal wiring layout. Input channels A1/A2 and S11/S12/S21/S22 retain the same pin assignments, so field wiring from safety door switches, rope-pull switches, or two-hand control devices can be reconnected without re-labelling or re-routing. Output contacts 13/14, 23/24, and 33/34 maintain the same normally-open safety contact configuration, ensuring compatibility with downstream contactors, motor starters, and frequency inverter enable inputs already wired in the circuit.

In modernisation projects where the broader safety architecture is being upgraded — for example, migrating from a standalone relay-based safety circuit to a networked safety PLC platform — the SRB402EM can serve as a transitional device. It interfaces cleanly with safety-rated I/O modules and safety controllers that accept dry-contact feedback signals, allowing the relay layer to remain in service while the upper control layer is upgraded incrementally. This approach significantly reduces the scope of any single shutdown window and lowers the risk of introducing systematic errors during a full-system cutover.

Commissioning the SRB402EM requires no special programming tools or software. The module uses a hardware-configured operating mode selected via internal jumpers or DIP switches, covering monitored manual reset, automatic reset, and EDM (external device monitoring) configurations. This makes field replacement straightforward: a technician familiar with the original SRB Series installation can complete the swap, functional test, and reset-circuit verification within a single maintenance window. The integrated LED diagnostics — power, channel 1 status, channel 2 status, and output relay state — provide immediate visual confirmation of correct wiring and circuit integrity before the machine is returned to service.

For facilities that also operate SCHMERSAL AZM safety door switches, BNS series position switches, or ZS series non-contact safety sensors, the SRB402EM is the natural relay interface. Its dual-channel monitored inputs are designed to accept the OSSD-style or dry-contact outputs from these devices without additional signal conditioning. Where light curtains or area scanners with OSSD outputs are part of the safety circuit, the SRB402EM’s input stage handles the cross-fault detection and short-circuit monitoring required by the applicable machinery directive.

In larger panel builds that include SCHMERSAL SRB-E series electronic safety modules, PSC1 safety controllers, or Protect-IE safety network components, the SRB402EM can be deployed as a local hardwired safety layer for zones that do not require network integration, keeping the overall system architecture clean and the safety validation scope well-defined. This is particularly relevant in retrofit projects where only a portion of the machine’s safety functions are being upgraded to a networked architecture while other zones retain conventional relay logic.

Stock is maintained in Xiamen for rapid dispatch. Each unit undergoes pre-shipment functional verification. Standard lead time is 3–7 business days for international express delivery. A 12-month warranty covers all units against manufacturing defects, with direct replacement support and responsive after-sales communication.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SRB402EM migration typically involves more than the relay module itself. In most panel retrofits, engineers also source replacement terminal blocks and jumper bridges to match the existing Weidmüller or Phoenix Contact terminal rail layout. Where the safety circuit feeds a motor drive or servo system, the enable input wiring to the frequency inverter’s STO (Safe Torque Off) terminals must be verified for compatibility with the SRB402EM’s output contact ratings. Facilities upgrading from older relay logic to a hybrid architecture often add a SCHMERSAL PSC1 safety controller or a compatible safety-rated I/O module to handle zone management, with the SRB402EM providing the hardwired relay output layer for each zone.

In cabinet builds that include SCHMERSAL AZM 200 series solenoid interlocks or BNS 33 series coded magnetic switches, the SRB402EM serves as the direct evaluation unit. For applications with light curtains — such as the SCHMERSAL SLC series or equivalent Sick or Keyence OSSD-output devices — the SRB402EM’s input stage handles the OSSD signal monitoring without an additional interface relay. Where the control cabinet also houses a SCHMERSAL SRB-E series electronic module for a different safety function, the SRB402EM can be mounted on the same DIN rail section, sharing the 24 V DC bus without interference. Commissioning cables and a laptop running the relevant safety validation software complete the typical upgrade toolkit for a documented functional safety assessment.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an SRB301 with the SRB402EM?
A: Yes. The S11/S12 and S21/S22 input terminal assignments are preserved. Verify wire ferrule condition and re-torque terminals to the specified 0.5–0.6 Nm during reinstallation.

Q: Does the SRB402EM require any programming or configuration software?
A: No. Operating mode (manual reset, automatic reset, EDM) is selected via internal jumpers. No PC connection or software licence is required for standard commissioning.

Q: Is the SRB402EM compatible with 24 V AC supply?
A: No. The SRB402EM is rated for 24 V DC only. Verify your panel PSU output before installation.

Q: How do I verify correct installation before returning the machine to service?
A: Perform a full functional test per EN ISO 13849-1: actuate the E-stop, confirm output contacts open, release and reset, confirm outputs re-energise. Check EDM feedback loop if external contactor monitoring is wired.

Q: Can the SRB402EM be used in a safety network (Profisafe, CIP Safety)?
A: No. The SRB402EM is a hardwired safety relay. For networked safety architectures, consider SCHMERSAL PSC1 or compatible safety PLC I/O modules as the upper layer, with the SRB402EM retained as the output relay stage.

Q: What is the physical installation space requirement?
A: 22.5 mm width on a standard 35 mm DIN rail. Height and depth match the SRB301 footprint, so no cabinet door or cable duct relocation is required in most retrofit scenarios.

Warranty Assurance

Every SCHMERSAL SRB402EM unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes a pre-shipment functional check including supply voltage application, input channel actuation, output contact continuity verification, and LED diagnostic confirmation. Units that do not pass this check are not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing. Our after-sales team responds to warranty enquiries within one business day. Replacement units are dispatched from Xiamen stock, with international express options available to minimise your downtime exposure. We maintain traceability records for all shipped units to support your incoming inspection and safety validation documentation requirements.

For volume procurement, scheduled delivery agreements, and project-specific lead time commitments, contact our sales team directly. We support OEM integrators, panel builders, and end-user maintenance departments with consistent stock availability and documented product sourcing.
