SCHIELE 2.423.422.00 Replacement for Profibus DP Series

Product Overview

SCHIELE 2.423.422.00 Replacement for Profibus DP Series: Seamless Transition & Legacy System Upgrade

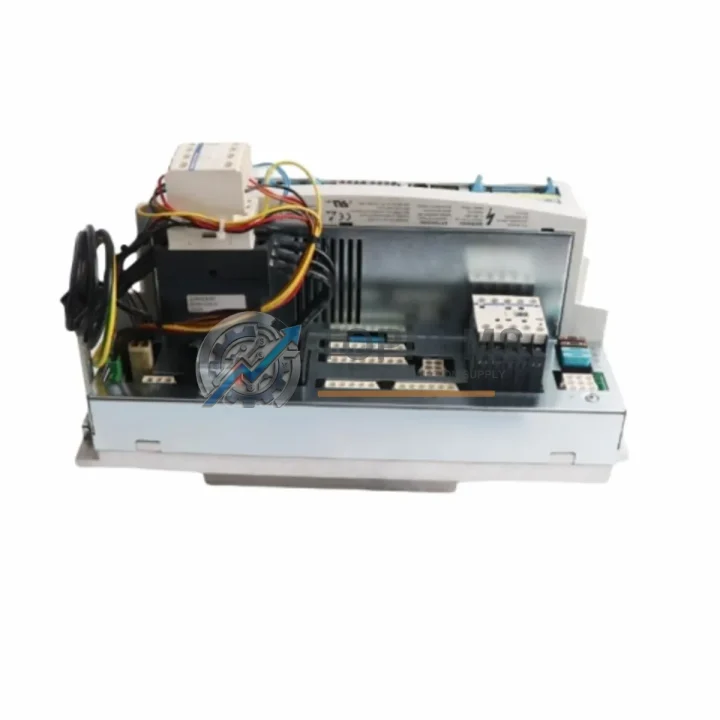

When your existing SCHIELE Profibus DP communication infrastructure reaches end-of-life or a critical module fails, unplanned downtime is the costliest outcome in any industrial control environment. The SCHIELE 2.423.422.00 Profibus DP Communication Module is a proven replacement and upgrade solution for facilities operating legacy SCHIELE control systems, Siemens S5/S7-based Profibus DP networks, and third-party DCS architectures that rely on Profibus DP as the primary fieldbus protocol.

This module is engineered to slot directly into existing SCHIELE control cabinet configurations, preserving your original wiring topology, terminal assignments, and bus segment addressing. Engineers migrating from discontinued SCHIELE Profibus interface cards or aging GSD-file-based device configurations will find that the 2.423.422.00 retains full compatibility with standard Profibus DP Class 1 and Class 2 master/slave communication, eliminating the need for full program rewrites or fieldbus reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy SCHIELE Profibus DP network rarely involves a single module swap. In practice, field engineers undertaking a control system retrofit will typically assess the entire communication chain before commissioning the replacement 2.423.422.00. During such projects, several companion components are commonly evaluated alongside this module.

On the power distribution side, the SCHIELE 24 VDC power supply module must be verified to deliver stable rail voltage within the ±1% tolerance required for reliable Profibus DP bus arbitration. Where the existing power module is also approaching end-of-life, a concurrent replacement prevents secondary failures post-commissioning. Similarly, the SCHIELE CPU module or host controller that acts as the Profibus DP master must have its GSD file library updated to recognize the 2.423.422.00 as a valid slave device — a step that is straightforward in both Siemens STEP 7 and TIA Portal environments.

For installations where the Profibus DP segment connects to remote I/O racks, the SCHIELE digital input module and SCHIELE analog output module at each remote station should be audited for firmware compatibility. Profibus DP segment terminators — passive resistor networks installed at both physical ends of the bus cable — are frequently overlooked during module replacements but are critical to signal integrity at speeds above 1.5 Mbit/s. Replacement Profibus DP bus termination plugs with integrated termination resistors are recommended when the existing plugs show signs of oxidation or mechanical wear.

Where the control cabinet also houses an HMI panel communicating over Profibus DP, such as a SCHIELE or compatible operator panel, the HMI’s device address and polling cycle must be re-validated after the 2.423.422.00 is installed to ensure no address conflicts exist on the segment. In multi-drop Profibus DP topologies, a Profibus DP repeater module may be required to extend segment length beyond the 200-meter limit at 1.5 Mbit/s, particularly in large plant layouts where the legacy wiring runs approach or exceed this threshold.

Finally, for engineers performing the initial configuration and diagnostic verification, a Profibus DP programming cable or USB-to-Profibus adapter compatible with STEP 7 or TIA Portal is an essential tool for reading live bus diagnostics, confirming slave recognition, and validating cyclic data exchange before returning the system to production.

Retrofit Guidance FAQ

Q: Can I reuse existing Profibus DP wiring when installing the 2.423.422.00?
A: Yes. The 2.423.422.00 uses a standard DB9 Profibus DP connector. Existing shielded twisted-pair Profibus cable (Type A, impedance 135–165 Ω) is fully reusable provided the cable is undamaged and bus termination is correctly applied at both segment ends.

Q: Do I need to modify my PLC program after replacing the module?
A: In most cases, no. If the replacement module is configured with the same Profibus DP slave address and the GSD file is loaded correctly in the master configuration tool (STEP 7 / TIA Portal / third-party DCS), the cyclic I/O data mapping remains unchanged. Acyclic DP-V1 services may require re-parameterization if the legacy module used vendor-specific parameter blocks.

Q: What Profibus DP baud rates does the 2.423.422.00 support?
A: The module supports all standard Profibus DP baud rates from 9.6 kbit/s up to 12 Mbit/s, providing forward compatibility with higher-speed bus segments that may be introduced during broader system modernization.

Q: Will the module fit in the existing SCHIELE control cabinet without mechanical modification?
A: The 2.423.422.00 is designed for DIN rail mounting with the same physical footprint as the legacy SCHIELE Profibus interface modules it replaces. No cabinet drilling, rail extension, or bracket modification is required in standard installations.

Q: How do I verify the module is communicating correctly after installation?
A: Connect a Profibus DP diagnostic tool or USB-to-Profibus adapter to the bus segment and use STEP 7 / TIA Portal’s hardware diagnostics or a third-party Profibus analyzer to confirm the slave is recognized, cyclic data exchange is active, and no bus errors are reported. LED status indicators on the module provide a first-level diagnostic reference.

Q: Is the 2.423.422.00 compatible with Siemens S7-300 / S7-400 Profibus DP masters?
A: Yes. The module’s standard GSD file can be imported into STEP 7 or TIA Portal and configured as a Profibus DP slave under any DP-V0 or DP-V1 compatible master, including Siemens S7-300, S7-400, and equivalent third-party DCS controllers.

Warranty Assurance

Every SCHIELE 2.423.422.00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, communication interface continuity check, and visual inspection for physical defects. Units that fail pre-shipment testing are quarantined and never shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support. Our technical team will coordinate return logistics and prioritize replacement dispatch to minimize your system downtime. For time-critical production environments, we recommend discussing advance replacement options at the time of order.

Stock availability is maintained for this SKU to support both planned maintenance schedules and emergency breakdown scenarios. Orders placed before 14:00 CST on business days are processed for same-day dispatch where stock is confirmed available. International shipments are routed via DHL Express, FedEx International Priority, or equivalent tracked air freight services, with typical transit times of 3–7 business days to major industrial regions in Europe, Southeast Asia, and the Americas.

For procurement inquiries, technical pre-sales consultation, or warranty claims, contact our industrial automation team directly.
