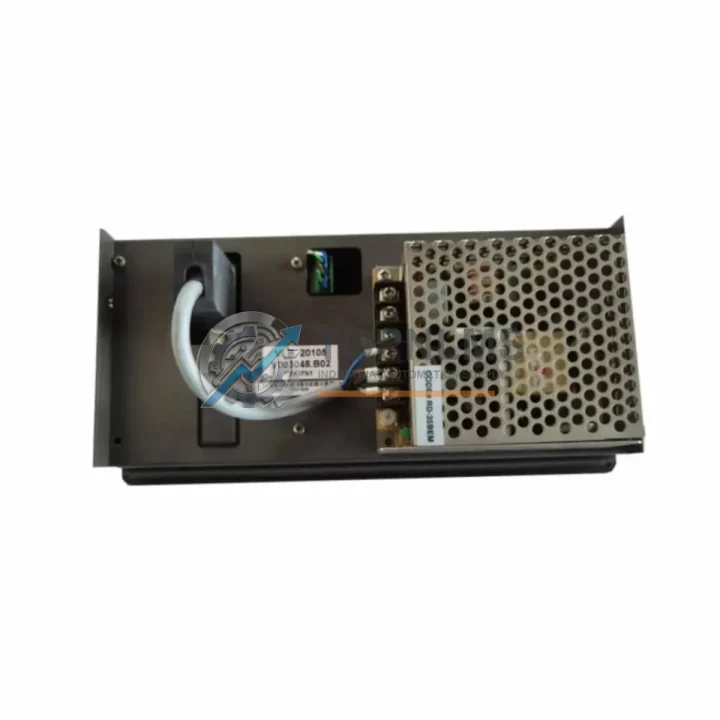

Schenck VLB20105 V003048.B02 Replacement for VLB Series

Product Overview

Schenck VLB20105 V003048.B02 Replacement for VLB Series: Smooth Transition & Legacy System Compatibility

The Schenck VLB20105 V003048.B02 is a precision vibration balancing control module engineered for the Schenck VLB Series balancing and condition monitoring platform. As industrial facilities face increasing pressure to maintain uptime while managing aging or discontinued control hardware, this module serves as the definitive drop-in replacement and upgrade solution for legacy VLB Series installations. Whether your existing system relies on an earlier VLB20105 revision, a discontinued VLB20100 predecessor, or an aging VLB20200 companion controller, this module is designed to restore full system functionality with minimal engineering intervention.

Schenck’s VLB Series has been widely deployed in turbine balancing rigs, rotor test benches, industrial fan balancing systems, and precision rotating machinery across power generation, aerospace MRO, and heavy manufacturing. When a VLB20105 module fails or reaches end-of-life, the downstream impact is immediate: balancing operations halt, production schedules slip, and maintenance teams face pressure to source a verified replacement quickly. The VLB20105 V003048.B02 revision addresses this need directly, maintaining backward compatibility with the existing VLB Series rack architecture, signal conditioning circuitry, and measurement software interfaces.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VLB20105 V003048.B02 replacement rarely involves a single module in isolation. In practice, field engineers retrofitting a Schenck VLB Series balancing system will often assess the condition of adjacent components within the same rack or control cabinet. The VLB Series backplane and rack chassis should be inspected for connector wear before inserting the new module, as degraded backplane contacts are a common secondary failure point in aging installations.

If the system includes a VLB20200 measurement amplifier module or a VLB20300 reference channel module, these should be verified for firmware compatibility with the B02 revision of the VLB20105. In most cases, no firmware changes are required, but a bench verification prior to installation eliminates commissioning surprises. Similarly, the VLB Series power supply module — typically a 24 VDC regulated unit mounted in the same rack — should be load-tested to confirm it can support the full module complement after the replacement.

On the sensor side, the existing piezoelectric vibration sensors and eddy-current proximity probes connected to the VLB20105 input channels are fully compatible with the V003048.B02 revision. No sensor recalibration is required at the hardware level, though a post-installation calibration run is always recommended to confirm measurement accuracy after any module swap. If the installation uses a Schenck CAB series balancing machine controller or a Schenck TOCSIN condition monitoring system as the supervisory layer, communication with the VLB20105 over the existing RS-485 or proprietary VLB bus interface will resume automatically upon module insertion.

For facilities managing a broader control system modernization — for example, migrating from a legacy Schenck VIBROPORT 80 portable balancing system to a rack-mounted VLB Series installation — the VLB20105 V003048.B02 provides a stable, current-production module that anchors the new architecture. Procurement teams sourcing this module alongside a VLB Series programming cable or USB-to-RS232 adapter for configuration access will find that the B02 revision maintains the same configuration interface as earlier revisions, eliminating the need for new diagnostic tooling.

Retrofit Guidance FAQ

Q: Do I need to rewire the sensor inputs when replacing an earlier VLB20105 revision with the V003048.B02?
No. The V003048.B02 maintains the same terminal block and backplane connector pinout as the B01 revision and compatible predecessor modules. Existing sensor wiring — including piezoelectric accelerometer cables and proximity probe signal cables — connects directly without modification.

Q: Will my existing VLB Series measurement software need to be updated?
In the majority of installations, no software changes are required. The VLB20105 V003048.B02 is recognized by the VLB Series measurement platform using the same device identification as earlier revisions. If your software version is significantly outdated, a compatibility check with your Schenck service documentation is recommended, but this is not a common requirement.

Q: Is the communication protocol compatible with my existing RS-485 or VLB bus network?
Yes. The VLB20105 V003048.B02 supports the same communication protocols as the modules it replaces. Node addressing and baud rate settings are preserved from the previous module configuration, so the replacement module will appear on the network without requiring address reassignment or bus reconfiguration.

Q: How much physical space does the VLB20105 V003048.B02 require in the control cabinet?
The module occupies the same slot width and depth as all standard VLB Series modules. If you are replacing a failed VLB20105 in an existing rack, the new module slides directly into the vacated slot. No cabinet modifications, DIN rail adjustments, or additional mounting hardware are required.

Q: Can this module be used as a spare part for a system that is still operational?
Absolutely. Many facilities maintain one or two VLB20105 modules as critical spares given the lead times associated with sourcing Schenck VLB Series components. The V003048.B02 revision is suitable for both immediate replacement and long-term spare inventory. Modules are shipped in protective anti-static packaging and are storage-stable for extended periods when kept in a controlled environment.

Q: What commissioning steps are required after installation?
After physical installation, power the rack and verify that the module initializes correctly via the system status indicators. Run a no-load calibration spin on the balancing machine to confirm measurement channel response. Compare readings against your baseline calibration records. If the system includes a supervisory controller such as a Schenck CAB or TOCSIN unit, verify communication link status before resuming production balancing operations.

Warranty Assurance

Every Schenck VLB20105 V003048.B02 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification to confirm module initialization, communication interface integrity, and signal channel response. This pre-shipment testing protocol is designed to eliminate DOA (dead-on-arrival) failures and give procurement and maintenance teams confidence that the replacement module will perform correctly upon installation.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing active production downtime. Our technical team is available to assist with installation verification, compatibility questions, and commissioning guidance throughout the warranty period. Replacement units are dispatched from our Xiamen warehouse with express shipping options available for urgent requirements.

Stock availability is maintained for the VLB20105 V003048.B02 to support both immediate replacement orders and planned maintenance procurement. Orders are typically processed and shipped within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team directly to discuss lead times, pricing, and consignment stock arrangements.

We understand that unplanned downtime in a balancing or condition monitoring system carries significant operational and financial consequences. Our procurement assurance commitment — verified stock, pre-shipment testing, 12-month warranty, and responsive after-sales support — is designed to minimize your risk at every stage of the replacement process.
