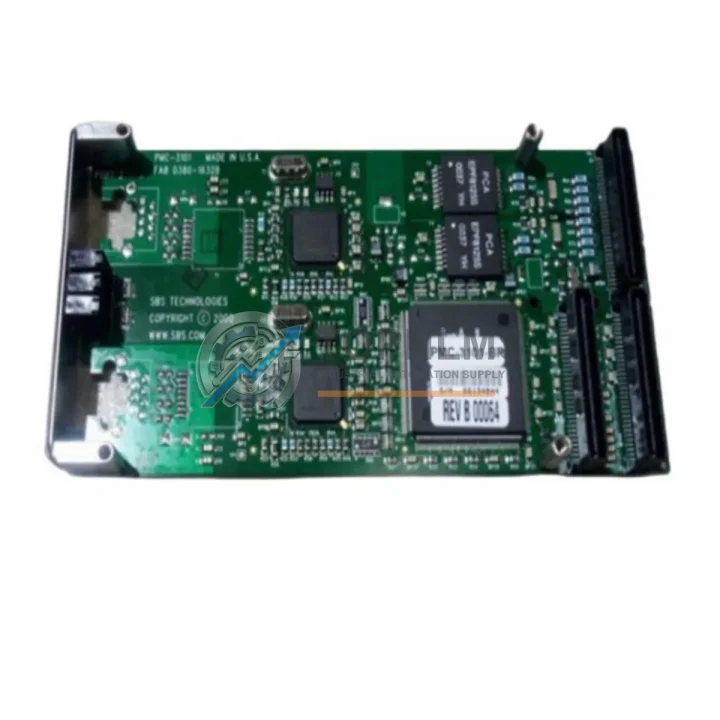

SBS 85853637-001 VMEbus Ethernet Replacement Solution

Product Overview

SBS 85853637-001 VMEbus Ethernet Replacement Solution: Seamless Migration from Legacy VME Systems

The SBS 85853637-001 is a VMEbus Ethernet communication module manufactured by SBS Technologies, designed for high-reliability industrial control architectures where deterministic network communication is critical. As legacy VMEbus platforms approach end-of-life and original SBS modules become increasingly difficult to source, plant engineers and system integrators face mounting pressure to maintain uptime while managing obsolescence risk. TOPNLMS supplies tested, verified replacement and upgrade units of the SBS 85853637-001 to support smooth, low-risk migration from aging VME-based control systems to modern, maintainable configurations — without forcing a full platform overhaul.

The VMEbus standard (IEEE 1014) has served as the backbone of mission-critical control infrastructure across defense, aerospace, power generation, and heavy industrial sectors for decades. Many facilities continue to operate VME-based systems from SBS Technologies, Motorola MVME, Radstone, and similar vendors, where the cost and risk of full replacement far outweigh the benefits of immediate migration. The 85853637-001 Ethernet module enables these systems to maintain network connectivity, support SCADA integration, and communicate with modern HMI platforms — extending the operational life of existing VME racks and backplanes without requiring reprogramming of core control logic.

When planning a retrofit or partial upgrade around the SBS 85853637-001, system architects typically evaluate the broader VME ecosystem. Compatible components commonly encountered in the same rack or control cabinet include the SBS Technologies SBC (Single Board Computer) modules that serve as the CPU backbone, VME64x backplane assemblies providing the physical bus structure, and Motorola MVME162 or MVME2700 processor boards that may coexist in multi-vendor VME chassis. On the I/O side, SBS IP (Industry Pack) carrier boards and discrete analog/digital I/O mezzanine modules are frequently installed alongside the Ethernet module to handle field signal acquisition. For power distribution within the VME chassis, Elma or Schroff VME power supply modules rated at 5 VDC and ±12 VDC are standard companions. Communication bridging to modern Ethernet/IP or PROFINET networks often involves an external protocol gateway or media converter when the legacy VME system must interface with a newer Siemens S7 or Allen-Bradley ControlLogix architecture.

From a wiring and installation standpoint, the 85853637-001 inserts into a standard 6U VME slot and connects via an RJ-45 rear-panel transition module or P2 connector breakout board, depending on the chassis configuration. No modifications to the VME backplane are required, and the module’s interrupt and address mapping can be configured to match the original SBS installation parameters, preserving existing driver and firmware compatibility. This is a critical advantage for facilities where the control program — often written in C, Ada, or VxWorks-based RTOS environments — cannot be easily recompiled or retested without significant validation overhead.

For sites performing a phased migration from a fully VME-based architecture toward a hybrid or modern PLC/DCS platform, the SBS 85853637-001 serves as a bridging component during the transition period. It allows the legacy VME system to remain operational and network-connected while new control hardware — such as a Siemens SIMATIC S7-400H redundant controller, an ABB AC800M DCS controller, or a Rockwell Automation ControlLogix L7x chassis — is commissioned in parallel. This parallel-run approach minimizes production downtime and allows engineering teams to validate new control logic against live process data before cutover.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VME system migration rarely involves a single module swap. When replacing or upgrading around the SBS 85853637-001, the following components are commonly required to complete a reliable, production-ready retrofit:

• VME Backplane / Chassis: Elma, Schroff, or Pixus 6U VME chassis with 6–21 slot backplanes provide the physical infrastructure. Verifying slot pitch, P1/P2 connector integrity, and bus termination is essential before module insertion.
• VME Power Supply Module: A regulated +5 VDC / ±12 VDC VME power supply (e.g., Elma 13VM-series or equivalent) must be confirmed to have sufficient current headroom when adding the Ethernet module to an existing rack.
• SBC / CPU Board: The host SBS single-board computer or a compatible Motorola MVME processor board manages the Ethernet module via the VME data bus. Firmware and driver versions on the SBC must be validated against the 85853637-001 hardware revision.
• IP Carrier Board: SBS IP carrier modules (4-slot or 8-slot) installed in the same chassis may share interrupt lines with the Ethernet module; IRQ mapping must be reviewed to avoid conflicts during commissioning.
• Rear Transition Module (RTM): The RJ-45 Ethernet port on the 85853637-001 is typically accessed via a rear transition module or P2 breakout panel. Confirming RTM compatibility with the chassis rear I/O area is a prerequisite for physical installation.
• Protocol Gateway: When the VME system must communicate with a modern Siemens S7-300/400, Mitsubishi MELSEC, or Omron CJ2 PLC network, an industrial Ethernet-to-fieldbus gateway (e.g., HMS Anybus X-gateway) bridges the protocol gap without requiring changes to the VME control program.
• Programming Cable / JTAG Interface: For SBC firmware updates or BIOS configuration prior to module installation, a compatible serial or JTAG programming cable specific to the SBS processor board is required.
• Signal Isolator / Surge Protector: In industrial environments with high electromagnetic interference — common in motor drive cabinets or near variable frequency drives (VFDs) — DIN-rail mounted Ethernet signal isolators protect the 85853637-001’s network interface from transient damage.

Retrofit Guidance FAQ

Q: Can the SBS 85853637-001 replace an older SBS Ethernet module with a different part number?
A: In most cases, yes. SBS Technologies maintained a high degree of backward compatibility across their VMEbus Ethernet product line. The 85853637-001 uses standard VME P1 addressing and IRQ configuration, making it compatible with chassis and SBC combinations originally designed for earlier SBS Ethernet modules. Address base and interrupt level should be verified against the original module’s jumper or DIP switch settings before installation.

Q: Will existing VxWorks or Linux drivers work with the replacement module?
A: The 85853637-001 is designed to be driver-compatible with the SBS VMEbus Ethernet driver family. If the host SBC is running VxWorks 5.x/6.x or a Linux kernel with the appropriate SBS driver package, no driver recompilation is typically required. For Windows-based VME systems using SBS’s WinSystems driver stack, driver version compatibility should be confirmed against the module’s hardware revision.

Q: What is the physical installation procedure?
A: Power down the VME chassis completely before insertion. Ground yourself with an ESD wrist strap. Slide the 85853637-001 into the designated VME slot along the card guides until the P1 (and P2, if applicable) connectors are fully seated. Secure the front panel ejector levers. Connect the Ethernet cable to the RJ-45 port on the rear transition module. Power up the chassis and verify the module’s LED status indicators before loading the control application.

Q: How is the module configured for IP address and network parameters?
A: Network configuration is typically performed via the host SBC’s boot environment (e.g., VxWorks bootrom or U-Boot) or through SBS’s configuration utility software. The module’s MAC address is factory-assigned and printed on the module label. IP address, subnet mask, and gateway are set in the driver initialization parameters within the control application or system startup script.

Q: Is the module compatible with PROFINET or EtherNet/IP protocols?
A: The 85853637-001 operates as a standard TCP/IP Ethernet device on the VME bus. It does not natively support PROFINET or EtherNet/IP application-layer protocols. Integration with PROFINET or EtherNet/IP networks requires an external protocol gateway. For direct PROFINET or EtherNet/IP connectivity, a modern communication module designed for those protocols should be evaluated as part of a broader system upgrade.

Q: What are the physical space requirements in the control cabinet?
A: The 85853637-001 occupies one 6U VME slot (approximately 233.35 mm × 160 mm board area). No additional DIN-rail space is required within the VME chassis. If a rear transition module is used for the Ethernet port, rear I/O clearance of approximately 50–80 mm behind the chassis backplane must be available.

Warranty Assurance

Every SBS 85853637-001 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process that includes power-on self-test (POST) confirmation, VME bus interface check, and Ethernet port connectivity validation. Units that do not pass all verification checkpoints are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to return inspection. Our technical support team is available to assist with installation questions, driver compatibility queries, and commissioning guidance throughout the warranty period. We understand that unplanned downtime in industrial control environments carries significant operational and financial consequences — our goal is to ensure that every replacement module performs reliably from day one.

For urgent requirements, expedited shipping options are available from our Xiamen warehouse to destinations worldwide. Lead times and shipping costs are confirmed at the time of order. Bulk procurement inquiries for maintenance stock or multi-site rollouts are welcome.
