SBE M68CPU Replacement Solution for MULTIBUS I Series

Product Overview

SBE M68CPU Replacement Solution for MULTIBUS I Series: Smooth Migration from Legacy Motorola 68000 Systems

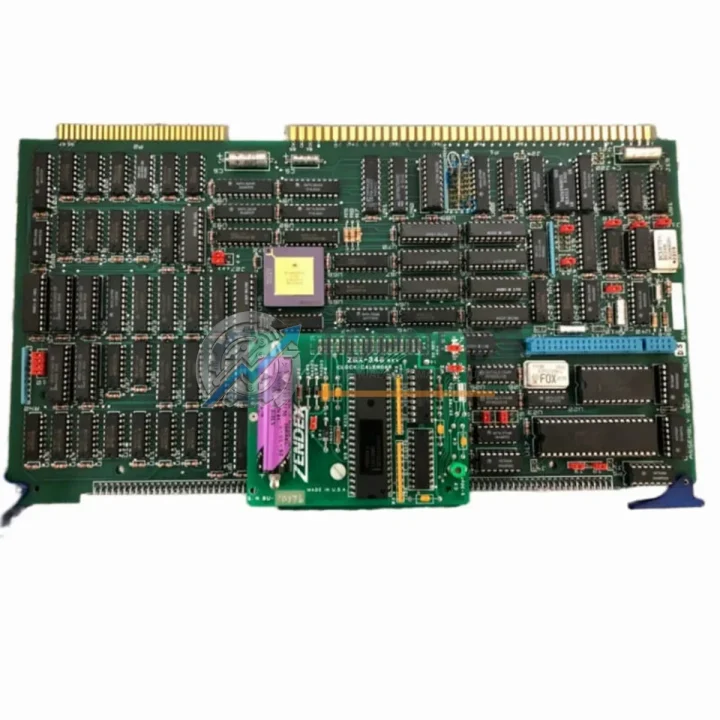

The SBE M68CPU is a Motorola 68000-based CPU card designed for MULTIBUS I (IEEE 796) backplane architectures — a platform that powered critical industrial control systems across manufacturing, process automation, and defense applications throughout the 1980s and 1990s. As original SBE M68CPU boards reach end-of-life and spare inventory becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacements or execute a structured migration to a compatible modern platform without disrupting production continuity.

TOPNLMS specializes in sourcing, testing, and supplying hard-to-find industrial control system components, including verified SBE M68CPU CPU cards for direct drop-in replacement, as well as compatible upgrade pathways for facilities ready to modernize their MULTIBUS I infrastructure. Every unit shipped undergoes functional verification and is backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SBE M68CPU migration rarely involves the CPU card alone. In most MULTIBUS I control cabinets, the CPU card operates alongside a full ecosystem of supporting hardware that must be evaluated for compatibility or replaced in parallel to ensure system integrity.

When upgrading from the M68CPU, engineers typically audit the SBE MULTIBUS I backplane itself — verifying slot count, termination resistors, and bus arbitration logic — before inserting a replacement CPU. The backplane’s passive bus structure means it is usually retained during a CPU swap, but aging edge connectors should be inspected for oxidation that can cause intermittent faults post-replacement.

Memory expansion boards such as the SBE-4M MULTIBUS I RAM card are commonly found alongside the M68CPU and remain fully compatible with replacement CPU boards that maintain the standard IEEE 796 address and data bus protocol. Retaining existing memory boards reduces migration cost and preserves validated application data structures.

For facilities running serial communication-intensive applications, the SBE SCC-1 or SCC-2 serial communication cards installed in adjacent MULTIBUS I slots continue to operate without modification when the CPU card is replaced with a compatible unit. RS-232 and RS-422 wiring to field devices, operator terminals, or upstream SCADA systems requires no changes.

Where the control system interfaces with discrete I/O — sensors, actuators, relay outputs — existing MULTIBUS I parallel I/O boards (such as SBE PIO-series or equivalent third-party cards) remain on the bus and are addressed identically by the replacement CPU, provided the firmware image is correctly transferred. This eliminates the need to rewire field termination panels or modify I/O marshalling cabinets.

For facilities considering a deeper modernization, a staged approach is recommended: replace the M68CPU first to restore system stability, then evaluate migration of the entire MULTIBUS I rack to a contemporary platform such as a Siemens SIMATIC S7-300 or S7-400 series PLC, or an Allen-Bradley ControlLogix chassis with equivalent I/O density. In such migrations, signal isolators and terminal block conversion modules are typically required to bridge legacy field wiring (often 24V DC or 4–20mA loops) to modern I/O card specifications.

Programming cable and adapter requirements vary by target platform. For systems migrating toward modern PLCs, USB-to-RS232 programming adapters and Ethernet-to-serial gateways are commonly needed to interface legacy programming workstations or to re-establish communication with field devices during the transition period. TOPNLMS can advise on compatible communication accessories based on your specific architecture.

Power supply compatibility is another critical checkpoint. The MULTIBUS I standard specifies +5V and ±12V rails; if the existing MULTIBUS I power supply module is also aging, it is advisable to replace it concurrently with the CPU card to avoid a secondary failure shortly after the CPU swap. TOPNLMS maintains inventory of compatible MULTIBUS I power supply units to support complete cabinet refurbishment projects.

Retrofit Guidance FAQ

Q: Can I replace the SBE M68CPU without rewiring the control cabinet?
A: Yes. The M68CPU replacement is a direct card-edge swap into the existing MULTIBUS I backplane slot. All field wiring connects to I/O boards in adjacent slots, not to the CPU card directly. No rewiring is required for a like-for-like CPU replacement.

Q: Will my existing application firmware run on the replacement CPU?
A: In most cases, yes — provided the replacement CPU uses the same Motorola 68000 architecture and the EPROM or Flash image from the original board is transferred correctly. TOPNLMS recommends backing up the firmware image before removal and verifying the memory map matches the replacement board’s specification sheet.

Q: Is the MULTIBUS I (IEEE 796) bus protocol fully preserved?
A: Yes. The IEEE 796 bus protocol is a passive, standardized parallel bus. A compatible replacement CPU card communicates with all other boards in the chassis using the same bus arbitration, address decoding, and data transfer cycles as the original M68CPU. No protocol conversion is needed.

Q: How much physical space does the replacement require?
A: The replacement CPU card occupies a single standard MULTIBUS I slot — identical to the original M68CPU. No additional slots, mounting brackets, or chassis modifications are required.

Q: What communication protocols are supported for SCADA or HMI connectivity?
A: The M68CPU and compatible replacements support RS-232 and RS-422 serial communication. For integration with modern SCADA systems or HMI panels using Modbus RTU, the existing serial ports are typically sufficient. Ethernet connectivity requires an additional MULTIBUS I Ethernet card or an external serial-to-Ethernet gateway.

Q: What is the lead time and shipping arrangement?
A: TOPNLMS ships from Xiamen, China. Standard international express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days. Expedited shipping is available for urgent downtime recovery situations. Contact us at [email protected] or +86 18359293191 for stock confirmation and lead time.

Warranty Assurance

Every SBE M68CPU unit supplied by TOPNLMS is subject to a rigorous pre-shipment inspection process. Boards are powered up and functionally tested against MULTIBUS I bus protocol specifications before dispatch. Visual inspection covers component condition, edge connector integrity, and absence of physical damage or corrosion.

All units are covered by a 12-month warranty from the date of shipment. In the event of a verified defect or functional failure within the warranty period, TOPNLMS will provide a replacement unit or issue a refund, subject to return inspection. Warranty claims are processed within 5 business days of receiving the returned unit.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation is available upon request for international customs clearance.

TOPNLMS maintains a standing inventory of legacy industrial control system components to support emergency replacement scenarios. If you are managing a planned maintenance window or an unplanned production stoppage caused by M68CPU failure, contact our technical sales team immediately for priority processing.

We understand that downtime in industrial environments carries significant operational and financial consequences. Our commitment is to provide verified, warranted components with the fastest possible dispatch — so your system returns to service with confidence.
