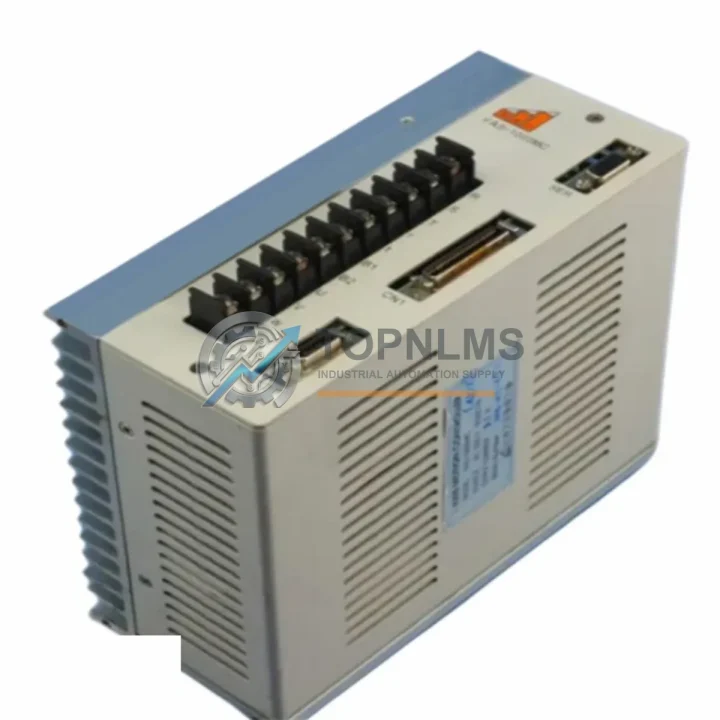

SAT FAS-1000MC Original Industrial Spare FAS-1000 Compatible

Product Overview

SAT FAS-1000MC Original Industrial Spare FAS-1000 Compatible: System Stability & Industrial Spare Maintenance Value

The SAT FAS-1000MC is an original multi-axis motion controller from SAT’s FAS-1000 Series, engineered for precision motion coordination in demanding industrial automation environments. Whether you are managing a scheduled shutdown, responding to an unplanned line stoppage, or executing a preventive maintenance cycle, having a verified original FAS-1000MC in your spare parts inventory is a critical risk-mitigation asset. This unit is sourced, inspected, and dispatched to ensure drop-in compatibility with existing FAS-1000 Series control architectures, minimizing engineering intervention and restoring production continuity at the fastest possible pace.

Industrial facilities running SAT FAS-1000 Series motion systems — including CNC machining centers, automated assembly lines, robotic welding cells, and multi-axis gantry systems — depend on the FAS-1000MC as the central coordination node for all axis movement. A failure at this level cascades immediately into full line stoppage. Maintaining at least one verified spare on-site is the single most effective measure to contain mean time to repair (MTTR) and protect OEE targets.

Critical Technical Specs

Preventive Maintenance Strategy

A motion controller failure rarely occurs in isolation. When the FAS-1000MC is flagged for replacement during a scheduled inspection or after a fault event, experienced maintenance engineers treat the intervention as an opportunity to audit the entire motion control cabinet and associated electrical circuits. This approach prevents secondary failures that would otherwise surface within weeks of the primary repair.

During a FAS-1000MC replacement, the SAT FAS-series servo drive modules connected to each controlled axis should be inspected for thermal stress, capacitor aging, and firmware currency — particularly those sharing the same EtherCAT bus. The encoder feedback cables and motor power cables running between the drives and servo motors are high-wear items; any cable showing insulation cracking, connector corrosion, or intermittent continuity should be replaced at the same time to avoid nuisance faults after the controller is restored.

The 24 VDC logic power supply module feeding the FAS-1000MC and its associated I/O modules deserves close attention. A power supply operating near its rated load with aging electrolytic capacitors is a common root cause of intermittent controller resets that are frequently misdiagnosed as controller faults. Replacing or load-testing the logic power supply during the same maintenance window is a low-cost, high-value action. Similarly, the terminal blocks and DIN rail connectors within the control cabinet should be re-torqued and inspected for oxidation, as loose connections under vibration are a leading cause of spurious axis faults in multi-axis systems.

The digital I/O expansion modules interfacing the FAS-1000MC with field sensors — including digital input modules for home and limit switches, and analog input modules for position feedback — should be verified for correct signal levels and response times. Any module showing erratic behavior or out-of-spec response should be flagged for replacement before the system is returned to production. Communication modules handling upstream connectivity to the plant SCADA or HMI should also be checked: a degraded EtherCAT or RS-485 communication module can introduce latency that manifests as positioning errors rather than obvious communication alarms.

For facilities running legacy SAT FAS-1000 systems beyond their original design life, a structured spare parts plan should include: the FAS-1000MC motion controller itself, at least one servo drive module per axis type in use, a set of encoder cables in the most common lengths deployed on-site, a replacement logic power supply module, a set of I/O modules covering the digital and analog types in use, and a stock of the fuse modules and circuit breakers protecting the cabinet’s power distribution. Maintaining this kit on-site reduces the risk of extended downtime caused by long lead times on legacy components and eliminates the need for emergency freight costs during a production crisis.

Where the control cabinet also houses an HMI panel for operator interaction, the HMI’s communication link to the FAS-1000MC should be verified during the same maintenance window. A degraded HMI communication interface can mask controller status information and delay fault diagnosis during the next incident. If the HMI is running firmware that predates the current FAS-1000MC firmware version, a coordinated firmware update should be planned to ensure full protocol compatibility.

Strategic Replacement Solutions

The FAS-1000MC is designed as a direct replacement for any existing FAS-1000MC installation within the SAT FAS-1000 Series architecture. No hardware modifications to the backplane, wiring harness, or cabinet layout are required. The unit accepts the same configuration parameters as the original, allowing maintenance teams to restore operation using a backed-up project file without re-engineering the motion program.

For facilities that have been operating FAS-1000 Series systems for more than five years, the FAS-1000MC replacement also presents an opportunity to review the motion program for any axis tuning parameters that may have drifted from optimal values due to mechanical wear in the driven axes. Restoring factory-optimized tuning parameters alongside the hardware replacement frequently yields measurable improvements in positioning accuracy and cycle time, delivering additional value beyond simple fault recovery.

Where the original FAS-1000MC has been discontinued or is approaching end-of-availability from the OEM channel, sourcing a verified original unit from a specialist industrial spare parts supplier ensures that the existing control system can continue operating without the cost and risk of a full controller platform migration. Platform migrations in multi-axis motion systems typically require re-engineering of the motion program, re-commissioning of all axes, and extended production downtime — costs that far exceed the value of maintaining an adequate spare parts inventory for the existing platform.

Each FAS-1000MC unit supplied by TOPNLMS is individually tested for power-on functionality, communication interface integrity, and axis command response before dispatch. Units are shipped in anti-static protective packaging with full documentation. A 12-month warranty covers all manufacturing defects from the date of receipt.

Support FAQ

Q1: Is this an original SAT FAS-1000MC or a compatible substitute?
This is an original SAT FAS-1000MC unit — not a third-party compatible or remanufactured substitute. Each unit is sourced through verified industrial supply channels and tested prior to dispatch to confirm it meets original SAT factory specifications.

Q2: How do I verify compatibility with my existing FAS-1000 Series installation before ordering?
Compatibility is confirmed by matching the model number FAS-1000MC on your existing unit’s nameplate or in your system’s bill of materials. If you have a different FAS-1000 Series variant or require confirmation for a specific cabinet configuration, contact us at [email protected] with your system details and we will advise before you commit to an order.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order reference and a description of the fault. We will advise on return logistics and replacement dispatch within one business day.

Q4: How quickly can the FAS-1000MC be dispatched, and what shipping options are available?
In-stock units are dispatched within 1–2 business days of order confirmation. We support express international freight (DHL, FedEx, UPS) and standard air freight options. For urgent breakdown situations, please contact us directly at +86 18359293191 to arrange priority dispatch and provide tracking information as soon as the shipment is booked.
