SANYO DENKI L720-012EL8 Replacement for L720 Series

Product Overview

SANYO DENKI L720-012EL8 Replacement for L720 Series: Seamless Transition to Modern Servo Control

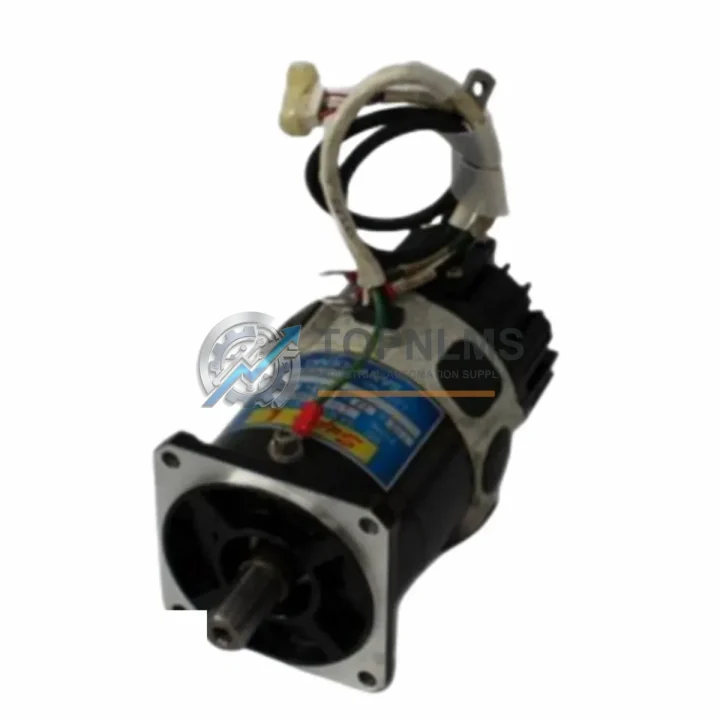

The SANYO DENKI L720-012EL8 is a DC servo motor from the L720 Series, widely deployed in legacy CNC machine tools, robotic arms, injection molding machines, and precision motion control systems across Asia and globally. As original L720 Series units reach end-of-life or become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to identify a reliable, drop-in replacement that preserves existing wiring harnesses, encoder feedback loops, drive amplifier compatibility, and mechanical mounting footprints — all while minimizing production downtime.

TOPNLMS supplies verified L720-012EL8 units sourced directly from authorized channels, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are executing a like-for-like spare part swap or planning a phased modernization of your servo drive system, this listing provides the technical and procurement information you need to make a confident decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful L720-012EL8 replacement rarely involves the motor alone. In practice, field engineers replacing an L720 Series servo motor will simultaneously audit and often replace several adjacent components to ensure system-level reliability. The servo amplifier — typically a SANYO DENKI BL Super Series or P5 Series drive unit — must be verified for firmware compatibility and DC bus voltage tolerance before the new motor is commissioned. If the amplifier is also aging, sourcing a matched replacement amplifier alongside the L720-012EL8 eliminates the risk of drive-motor mismatch faults during startup.

The encoder feedback cable connecting the L720-012EL8 to the servo amplifier is a frequent failure point in legacy installations. Replacing the encoder cable assembly with a shielded, impedance-matched cable designed for the L720 Series pinout prevents signal noise issues that can cause position error alarms or erratic velocity control. Similarly, the motor power cable — carrying the DC bus current from the amplifier to the motor — should be inspected for insulation degradation, particularly in high-cycle or high-temperature environments.

On the control side, the CNC controller or PLC issuing position commands to the servo amplifier via analog ±10V or pulse-direction signals should be verified for output signal integrity. Many retrofit projects involving the L720-012EL8 also include replacement of the I/O terminal block modules connecting the controller to the drive system, ensuring clean signal paths and eliminating ground loop interference. In installations where a FANUC, Mitsubishi, or Siemens CNC controller interfaces with the SANYO DENKI amplifier, the axis parameter file may need to be reviewed — though in most L720 Series like-for-like swaps, no parameter changes are required.

For installations housed in aging control cabinets, the replacement process is also an opportunity to inspect the 24VDC power supply module feeding the control logic, the circuit breakers and contactors on the motor power circuit, and any signal isolation modules between the PLC output cards and the servo amplifier command inputs. Replacing worn terminal blocks and DIN rail mounting hardware at the same time as the L720-012EL8 motor reduces the likelihood of a secondary failure shortly after the primary repair is completed.

In multi-axis systems — such as a 3-axis or 5-axis machining center — replacing one L720-012EL8 is often the trigger for a broader audit of all servo axes. Maintenance teams frequently discover that adjacent axes using the same L720 Series motors are approaching similar wear thresholds, making it cost-effective to source multiple L720-012EL8 units in a single procurement to minimize future unplanned downtime. TOPNLMS can support multi-unit orders with consolidated shipping from Xiamen.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing with the L720-012EL8?
A: Yes. The L720-012EL8 uses the standard L720 Series connector pinout for both the power cable and encoder feedback cable. In the vast majority of direct replacement scenarios, the existing harness can be reused without modification. Inspect the cable for insulation damage and connector pin corrosion before reconnecting.

Q: Do I need to re-tune servo parameters after installing the L720-012EL8?
A: For like-for-like replacements within the L720 Series, parameter re-tuning is typically not required. The servo amplifier’s existing gain settings, acceleration/deceleration ramps, and position loop parameters remain valid. However, if the amplifier firmware has been updated or if the mechanical load has changed, a brief auto-tuning cycle is recommended.

Q: Is the L720-012EL8 compatible with my existing SANYO DENKI servo amplifier?
A: The L720-012EL8 is designed for use with SANYO DENKI L720 Series-compatible amplifiers. Compatibility with BL Super Series and P5 Series amplifiers should be confirmed against the amplifier’s motor compatibility list. Contact TOPNLMS with your amplifier model number for a pre-sale compatibility check.

Q: What communication protocol does the L720-012EL8 support?
A: The L720 Series operates on analog ±10V velocity command or pulse-direction position command interfaces, which are standard across most CNC and motion control platforms. It does not natively support digital fieldbus protocols such as EtherCAT or PROFINET — if your modernization project requires fieldbus integration, a servo amplifier upgrade may be necessary alongside the motor replacement.

Q: Will the L720-012EL8 fit in the same physical space as my existing motor?
A: Yes. The L720-012EL8 shares the same frame dimensions and flange mounting pattern as other L720 Series motors of equivalent frame size. No mechanical modifications to the machine structure or motor bracket are required for a direct replacement.

Q: How do I handle the encoder replacement if the original encoder is damaged?
A: If the encoder on the outgoing motor is damaged, the L720-012EL8 ships with its encoder intact and factory-calibrated. No separate encoder replacement is needed. Ensure the encoder cable is undamaged and properly shielded before commissioning.

Warranty Assurance

Every L720-012EL8 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-dispatch functional test covering insulation resistance, encoder signal integrity, shaft runout, and no-load rotation verification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned unit. Our after-sales response time is within 24 hours on business days. Warranty claims are processed via email at [email protected] or by phone at +86 18359293191.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen is available via DHL, FedEx, UPS, and sea freight for bulk orders. Lead time for in-stock units is 3–5 business days for international express delivery.

TOPNLMS maintains a standing inventory of L720 Series components to support urgent replacement needs. If you require multiple units or have a scheduled maintenance window, contact us in advance to reserve stock and coordinate shipment timing.
