Sanken DK14256A Replacement/Upgrade Solution for Sanken Electric Series: Smooth Transition from Legacy Drive Systems

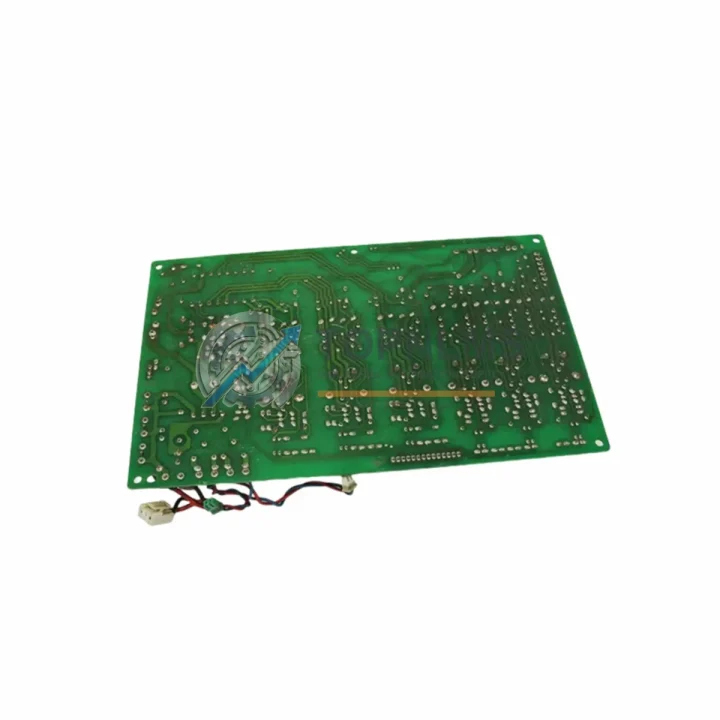

The Sanken DK14256A is a critical power control board used in Sanken Electric variable frequency drives and inverter systems. As industrial facilities face the challenge of aging automation infrastructure, discontinued spare parts, and escalating downtime risk, sourcing a verified replacement or upgrade solution for the DK14256A has become a top priority for maintenance engineers and procurement teams worldwide.

At TOPNLMS, we supply the Sanken DK14256A power control board as a direct OEM-equivalent replacement, fully tested and ready for immediate installation. Whether you are maintaining an existing Sanken Electric drive system or executing a planned retrofit of legacy inverter hardware, this board is engineered to deliver seamless compatibility with the original wiring harness, mounting footprint, and control logic — minimizing engineering rework and eliminating the need for full drive replacement.

Many facilities running older Sanken SHF, MF, or SVF series variable frequency drives encounter situations where the original power control board fails due to capacitor aging, IGBT gate drive degradation, or thermal stress from years of continuous operation. In these scenarios, replacing only the DK14256A board — rather than the entire drive unit — represents a significant cost saving and dramatically reduces system downtime. The DK14256A interfaces directly with the drive’s main power module, gate driver circuit, and control terminal block, making it a targeted and efficient repair solution.

For facilities upgrading from older Sanken inverter platforms, the DK14256A replacement process typically involves verifying the existing wiring to the control terminal strip, confirming the DC bus voltage rating, and checking the communication interface between the power board and the main CPU board. In most Sanken drive architectures, the power control board communicates with the CPU board via an internal ribbon cable or direct PCB connector — both of which are preserved in the DK14256A replacement unit we supply.

During retrofit projects, engineers frequently need to source complementary components alongside the DK14256A. Common co-replacement items include the Sanken gate driver board, the drive’s main IGBT power module, the DC bus capacitor bank assembly, and the cooling fan assembly for the heatsink. In more comprehensive modernization projects, the control panel interface board and the keypad/operator panel unit are also replaced to restore full HMI functionality. Our team can assist in identifying compatible part numbers across the Sanken Electric drive platform to support a complete system restoration.

For facilities transitioning from Sanken drives to a newer automation platform, the DK14256A can serve as a bridge component — keeping the existing drive operational while the broader migration to a new PLC or servo drive system is planned and executed. This approach is particularly valuable in continuous-process industries such as water treatment, HVAC, compressor control, and conveyor systems, where unplanned downtime carries significant operational cost.

Installation of the DK14256A replacement board follows standard Sanken Electric service procedures. Engineers should de-energize the drive, discharge the DC bus capacitors, and follow ESD precautions before handling the board. The replacement board mounts using the original standoff positions and connects via the existing wiring harness without modification. After installation, a basic parameter verification and test run under no-load conditions is recommended before returning the drive to full production service.

All DK14256A units supplied by TOPNLMS are individually tested prior to shipment, covering power-on self-test, gate signal output verification, and thermal performance checks. Units are shipped in anti-static packaging with full documentation. We maintain stock in Xiamen, China, with express international shipping available to minimize lead time for urgent replacement requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DK14256A replacement or drive modernization project rarely involves a single component. Based on field experience with Sanken Electric drive systems, the following components are commonly sourced alongside the DK14256A power control board to ensure a complete and reliable restoration or upgrade.

The Sanken gate driver board is frequently replaced in conjunction with the DK14256A, as both boards are subject to similar thermal and electrical stress cycles. If the gate driver shows signs of degraded output signal integrity, replacing it together with the power control board eliminates the risk of a secondary failure shortly after the initial repair.

The IGBT power module at the heart of the drive’s inverter stage is another common co-replacement item. When the DK14256A fails due to overcurrent or short-circuit events, the IGBT module may have sustained damage as well. Verifying the IGBT module’s condition before reinstalling the new power control board is a standard step in the repair workflow.

The DC bus capacitor bank is a wear item in all VFD systems. Capacitors in drives that have been in service for more than five to eight years are typically approaching end of life, and replacing them during a power board replacement is a cost-effective way to extend the drive’s service life significantly.

The cooling fan assembly for the drive heatsink is another component that should be inspected and replaced if necessary during any major board-level repair. Fan failure is a leading cause of secondary thermal damage to power electronics in VFD systems.

For facilities that also need to restore the operator interface, the Sanken keypad / operator panel and the control panel interface board are available as separate replacement items. These components allow full parameter access and drive configuration without requiring a laptop or external programming tool.

In projects where the Sanken drive is being integrated into a modernized control architecture, a communication option card — supporting protocols such as Modbus RTU, PROFIBUS DP, or DeviceNet — may be added to enable the drive to communicate with a new PLC or SCADA system. This approach allows the existing drive hardware to remain in service while the supervisory control layer is upgraded.

Finally, for installations where the drive is mounted in a control cabinet alongside other automation components, DIN rail terminal blocks and signal isolators are commonly used to ensure clean signal separation between the drive’s control wiring and the PLC I/O module inputs, reducing the risk of interference-related faults during and after the upgrade.

Retrofit Guidance FAQ

Q: Can I replace only the DK14256A board without replacing the entire drive?
A: Yes. The DK14256A is a board-level replacement that restores the power control function of the drive without requiring full drive replacement. This approach is cost-effective and minimizes installation time, provided the IGBT module and other major components are in good condition.

Q: Do I need to rewire the drive after installing the replacement DK14256A?
A: No rewiring is required. The replacement board uses the same connector layout and wiring harness interface as the original. Simply disconnect the existing harness, remove the failed board, install the replacement, and reconnect.

Q: Is the DK14256A compatible with the communication protocols used in my existing control system?
A: The DK14256A power control board itself does not handle external communication protocols — that function is managed by the drive’s CPU board and any installed communication option card. Replacing the DK14256A does not affect the drive’s communication configuration or protocol settings.

Q: Will the replacement board fit in the same physical space as the original?
A: Yes. The DK14256A replacement unit has an identical PCB form factor and mounting hole pattern to the original, ensuring a direct fit within the existing drive enclosure without any mechanical modification.

Q: Do I need to re-enter drive parameters after replacing the board?
A: Drive parameters are stored on the CPU board, not the power control board. Replacing the DK14256A does not erase or alter the drive’s parameter settings. A parameter verification check after installation is recommended as a best practice.

Q: What commissioning steps are recommended after installation?
A: After installing the replacement board, perform a visual inspection of all connections, power up the drive with the motor disconnected, verify that no fault codes are displayed, and conduct a no-load test run before returning the drive to full production service.

Warranty Assurance

Every Sanken DK14256A power control board supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and component failures under normal operating conditions. Our pre-shipment testing protocol includes power-on functional verification, gate signal output testing, and visual inspection for physical defects — ensuring that every unit leaving our facility meets quality standards before it reaches your site.

In the event of a warranty claim, our after-sales team responds within one business day to assess the issue and arrange a replacement or repair. We maintain replacement stock specifically to support warranty cases, minimizing the time between claim submission and resolution. Customers are not required to return the defective unit before a replacement is dispatched in urgent cases — we prioritize minimizing your downtime above all else.

For procurement teams, we can provide a formal warranty certificate, packing list, and test report with each shipment upon request. These documents support internal quality management requirements and facilitate customs clearance for international shipments. We ship from Xiamen, China, via DHL, FedEx, or UPS Express, with typical international transit times of three to five business days.
