SAIA PCA1.M41M4 Replacement/Upgrade Solution for PCD1

Product Overview

SAIA PCA1.M41M4 Replacement/Upgrade Solution for PCD1: Smooth Migration from Legacy Systems

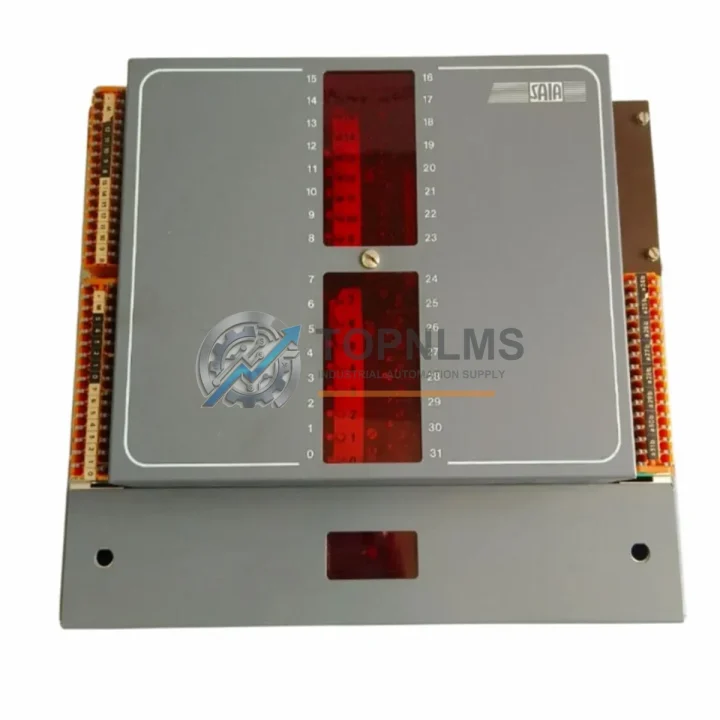

The SAIA PCA1.M41M4 is a compact processor module designed for the SAIA PCD1 Series programmable logic controller platform. As industrial facilities face the challenge of maintaining aging control infrastructure, sourcing a verified replacement or compatible upgrade for the PCA1.M41M4 has become a critical procurement priority. Whether your existing PCD1 processor has failed, reached end-of-life, or is no longer supported by the original manufacturer, TOPNLMS provides tested, ready-to-ship units that enable a seamless transition with minimal disruption to your production environment.

The PCD1 Series was widely deployed across manufacturing, building automation, water treatment, and energy management applications throughout Europe and Asia. Many facilities still rely on PCD1-based control cabinets where the processor communicates with local I/O modules, remote expansion racks, and supervisory SCADA systems via S-Bus or Ethernet interfaces. Replacing the PCA1.M41M4 processor does not require a full system overhaul — the existing PCD1 backplane, terminal wiring, and I/O configuration can typically be retained, dramatically reducing retrofit labor costs and downtime exposure.

When migrating from a failed or obsolete PCA1.M41M4, engineers should verify compatibility across several key dimensions. The processor’s onboard memory capacity and program execution cycle time must match or exceed the original unit’s specifications to ensure that existing ladder logic or FBD programs compiled in SAIA PG5 programming software execute correctly without modification. Communication port assignments — particularly the RS-232 and RS-485 interfaces used for S-Bus master/slave configurations — must be preserved to maintain connectivity with downstream devices such as the PCD2.M480 expansion processor, PCD3 remote I/O stations, and third-party HMI panels connected via Modbus RTU.

Power supply compatibility is another critical consideration. The PCD1 Series operates on a 24 VDC rail supplied through the system’s dedicated power supply module. Before installing the replacement PCA1.M41M4, confirm that the existing PSU — often a PCD7.T100 or equivalent — delivers stable voltage within the processor’s rated input tolerance. Voltage fluctuations or inadequate current capacity are a common root cause of premature processor failure and should be addressed as part of any replacement project.

For facilities upgrading from earlier PCD1 processor variants, the PCA1.M41M4 offers expanded onboard I/O capacity and improved communication throughput compared to legacy units such as the PCA1.M2 or PCA1.M4. This makes it a practical intermediate upgrade step for sites that are not yet ready to migrate to the PCD2 or PCD3 platform but need improved processing performance and memory headroom for expanded control logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PCA1.M41M4 replacement project rarely involves the processor alone. In most PCD1 installations, the processor works in close coordination with a range of supporting modules that must be verified or upgraded in parallel. The PCD1.M2220 digital I/O module is commonly installed alongside the processor to handle discrete input and output signals from field devices such as sensors, actuators, and relay outputs. If the existing I/O modules show signs of wear or firmware incompatibility, replacing them concurrently with the processor minimizes the risk of a second unplanned outage.

Communication continuity is equally important. Many PCD1 systems use the PCD7.F110 or PCD7.F120 communication interface modules to bridge the S-Bus network to Ethernet or Profibus DP, enabling integration with plant-level SCADA or DCS platforms. These modules should be tested for firmware compatibility with the replacement processor before commissioning. Similarly, the PCD2.W340 Ethernet module — where installed in hybrid PCD1/PCD2 architectures — must be confirmed to support the same S-Bus master addressing scheme used by the PCA1.M41M4.

For sites where the control cabinet also houses a SAIA PCD7.D457 or PCD7.D787 operator panel (HMI), the panel’s communication parameters — baud rate, station address, and protocol variant — must be re-verified after processor replacement, as these settings are stored in the processor’s configuration memory and may need to be reloaded from a backup project file in PG5. Signal isolators and terminal blocks within the cabinet, such as those from the PCD0 passive module range, generally require no modification and can be reused directly.

Where the migration scope extends beyond a single processor swap, TOPNLMS can also source related components including PCD1 expansion racks, PCD3.M3330 remote I/O controllers for distributed architectures, and PCD7.T100 power supply modules to complete a full cabinet refresh. All units are sourced from verified supply chains and undergo pre-shipment functional testing.

Retrofit Guidance FAQ

Q: Can I reuse my existing PG5 project file after replacing the PCA1.M41M4?
A: Yes. If the replacement unit is the same model (PCA1.M41M4), the existing PG5 project can be downloaded directly without modification. If upgrading to a higher-specification PCA1 variant, minor resource mapping adjustments may be required for extended memory or I/O address ranges.

Q: Will the existing field wiring need to be changed?
A: No. The PCA1.M41M4 uses the same PCD1 backplane connector and terminal block layout as predecessor models. Field wiring connected to I/O modules does not need to be disturbed during processor replacement.

Q: Is S-Bus communication preserved after replacement?
A: Yes. The S-Bus master/slave configuration is stored in the PG5 project and is restored when the project is downloaded to the replacement processor. Station addresses and baud rate settings are retained.

Q: What if my control cabinet has limited space?
A: The PCA1.M41M4 occupies the same physical slot as all standard PCD1 processor modules. No additional cabinet space or DIN rail modification is required.

Q: How do I verify the replacement unit before installation?
A: TOPNLMS performs a pre-shipment power-on test on all processor modules. Upon receipt, we recommend a bench test using PG5 to confirm communication and program download before installing the unit in the live cabinet.

Warranty Assurance

Every SAIA PCA1.M41M4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual examination, power-on verification, and communication port testing to confirm the unit is fully functional before dispatch. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund in accordance with our standard after-sales policy.

We maintain stock of the PCA1.M41M4 and related PCD1 Series components to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days from our Xiamen warehouse, with express international shipping available to minimize your system downtime. For large-volume procurement or project-based sourcing, please contact our technical sales team to discuss lead times, pricing, and inspection documentation.

TOPNLMS is committed to supporting industrial facilities through the full lifecycle of their control system assets — from emergency single-unit replacements to planned multi-site migration programs. Our technical team is available to assist with compatibility verification, project file backup, and commissioning guidance for PCD1 Series retrofit projects.
