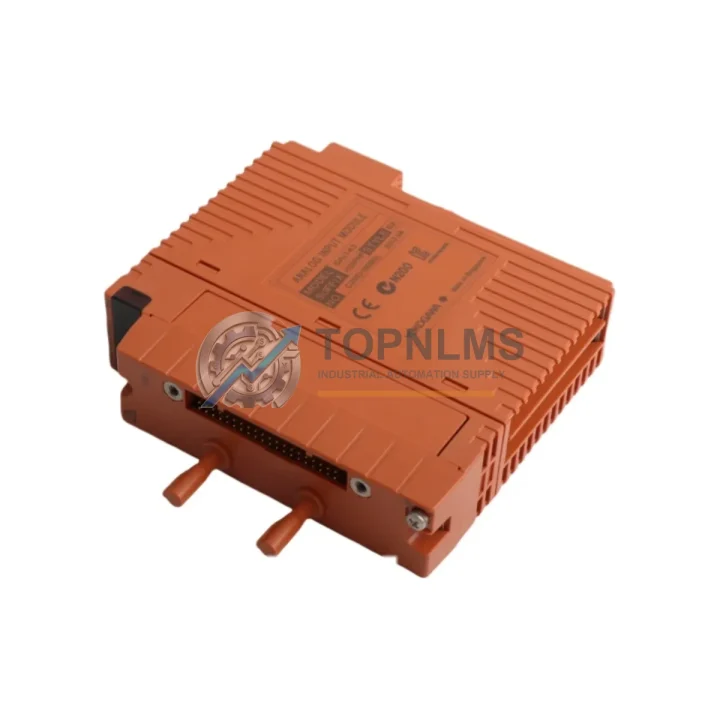

Yokogawa SAI143-H33/PRP Redundant Analog Input Module

Product Overview

Yokogawa SAI143-H33/PRP Redundant Analog Input Module: Industrial Resilience for Harsh Environments

The Yokogawa SAI143-H33/PRP is a 16-channel analog input module engineered for mission-critical DCS applications where signal integrity, system redundancy, and continuous uptime are non-negotiable. Designed for integration within the CENTUM VP distributed control system platform, this module supports PRP (Parallel Redundancy Protocol) dual-network architecture, ensuring that a single network fault never interrupts process data acquisition. Whether deployed in a petrochemical refinery, offshore gas platform, power generation facility, or heavy metallurgical plant, the SAI143-H33/PRP delivers the rugged, fault-tolerant performance that modern industrial safety standards demand.

Built to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the SAI143-H33/PRP maintains stable 4–20 mA and 1–5 V signal conditioning across all 16 channels simultaneously. Its galvanically isolated input circuitry suppresses ground loops and common-mode noise — a critical advantage in large-scale control cabinets where multiple field instruments share common grounding infrastructure. The module slots directly into the CENTUM VP field control station (FCS) node unit, maintaining full backward compatibility with existing I/O bus architectures without requiring rack modifications or additional signal converters.

Rugged Specifications Table

Comprehensive Protection Solutions

Deploying the SAI143-H33/PRP as part of a broader CENTUM VP system upgrade requires careful attention to the surrounding I/O and communication infrastructure. In most field control station configurations, the SAI143-H33/PRP operates alongside complementary modules that together form a complete, redundant measurement and control loop.

On the analog output side, the Yokogawa SAO143 analog output module pairs naturally with the SAI143-H33/PRP within the same node unit, providing closed-loop control capability for valve positioners and actuators. For digital signal acquisition — limit switches, motor status contacts, and safety interlock feedback — the Yokogawa SDV144 digital input module occupies adjacent slots in the same FCS rack, sharing the same backplane bus and PRP network infrastructure.

Power integrity is foundational to harsh-environment reliability. The Yokogawa PW481 power supply module, mounted within the field control station, provides regulated DC bus power to all I/O modules including the SAI143-H33/PRP. In redundant power configurations, a secondary PW481 operates in hot-standby mode, ensuring that a power supply failure does not interrupt analog signal acquisition. Alongside power, the Yokogawa ACM12 communication module manages the PRP dual-ring Ethernet network that the SAI143-H33/PRP relies upon for fault-tolerant data transmission to the human-machine interface layer.

For field wiring termination, the Yokogawa TB series terminal boards — specifically models compatible with the SAI143 family — provide screw-terminal or spring-clamp field wiring connections that remain mechanically stable under vibration and thermal cycling. In environments with significant electromagnetic interference, such as proximity to large variable frequency drives (VFDs) or high-voltage switchgear, inline signal isolators and surge protection barriers are recommended between field transmitters and the SAI143-H33/PRP input terminals to prevent transient damage to the module’s input circuitry.

At the supervisory level, the Yokogawa CENTUM VP HIS (Human Interface Station) running CENTUM VP R6 software provides real-time visualization of all 16 analog channels, trend logging, and alarm management. The PRP redundancy built into the SAI143-H33/PRP ensures that the HIS receives uninterrupted process data even during planned network maintenance windows — a critical requirement in continuous-process industries where operator visibility must never be compromised.

Application in Critical Infrastructure

The SAI143-H33/PRP is purpose-built for the most demanding segments of industrial infrastructure, where analog signal reliability directly impacts process safety and production continuity.

Oil & Gas: In upstream and midstream applications — wellhead control panels, gas compression stations, and pipeline SCADA integration points — the SAI143-H33/PRP acquires pressure, temperature, and flow signals from field transmitters operating in classified hazardous areas. Its PRP redundancy ensures that a cable cut or switch failure on one network ring does not cause a loss of measurement, preventing spurious shutdowns that cost tens of thousands of dollars per hour in deferred production.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the SAI143-H33/PRP monitors boiler drum levels, turbine exhaust temperatures, and generator cooling system parameters. The module’s wide operating temperature range and EMI immunity make it suitable for installation in control rooms adjacent to high-voltage switchgear and large rotating machinery.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pH, dissolved oxygen, turbidity, and flow measurement. The SAI143-H33/PRP’s 16-channel capacity allows a single module to consolidate measurements from an entire treatment stage, reducing rack space consumption and simplifying maintenance access in compact control cabinets.

Metallurgy & Mining: Smelting furnaces, ore processing conveyors, and mineral flotation circuits generate extreme levels of vibration, heat, and airborne conductive dust. The SAI143-H33/PRP’s robust construction and galvanic isolation protect measurement integrity in these environments, where a single erroneous analog reading can trigger a costly process upset or safety system activation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the SAI143-H33/PRP?
The 12-month warranty covers all functional defects identified after delivery, including dead-on-arrival (DOA) replacement, in-service failure within the warranty period, and post-shipment technical support. Each unit undergoes pre-shipment functional testing — including channel-by-channel signal verification and communication bus integrity checks — before dispatch. Replacement units are shipped within 3 business days of a confirmed warranty claim.

Q2: Is the SAI143-H33/PRP compatible with both CENTUM VP and CS 3000 systems?
The SAI143-H33/PRP is designed for the CENTUM VP platform. While the physical form factor shares similarities with CS 3000 I/O modules, firmware and bus protocol differences mean that direct cross-platform installation is not recommended without Yokogawa engineering confirmation. For CS 3000 applications, the equivalent SAI143 variant without PRP designation is the appropriate selection. Our technical team can advise on compatibility before order confirmation.

Q3: How is the module tested before shipment?
Every SAI143-H33/PRP unit is powered up and subjected to a full functional test covering all 16 analog input channels, PRP network port activity, backplane bus communication, and isolation resistance verification. Test records are available upon request. Units that fail any test parameter are quarantined and not shipped.

Q4: Can long-term supply continuity be guaranteed for this module?
We maintain dedicated inventory of CENTUM VP I/O modules including the SAI143-H33/PRP to support customers with long-lifecycle DCS installations. For customers requiring guaranteed supply over a multi-year maintenance contract, we offer reserved stock arrangements. Contact our team to discuss volume pricing and supply assurance agreements.
