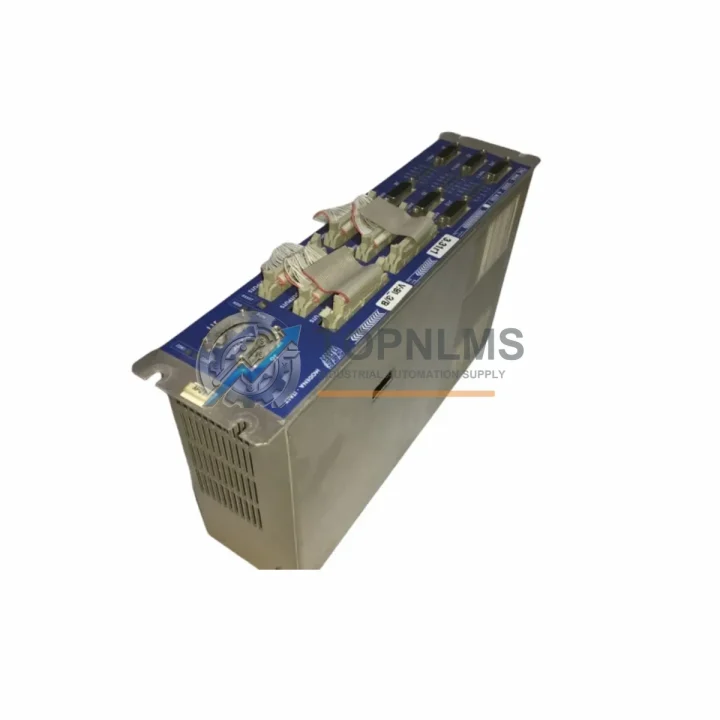

S.C.E. M68-2000/5 ASSI Ruggedized 5-Axis CNC Controller

Product Overview

S.C.E. M68-2000/5 ASSI Ruggedized 5-Axis CNC Controller Module: Industrial Resilience for Harsh Environments

The S.C.E. M68-2000/5 ASSI is a high-performance, ruggedized 5-axis CNC controller module engineered for continuous, fault-free operation in the most demanding industrial environments. Built on S.C.E.’s proven M68-2000 platform, this module delivers precision multi-axis motion control with the electromagnetic immunity, thermal stability, and mechanical robustness required in heavy manufacturing, aerospace machining, energy production, and critical infrastructure applications. Whether deployed in a climate-controlled control cabinet or exposed to the vibration, dust, and humidity of a live production floor, the M68-2000/5 ASSI maintains deterministic control performance without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The M68-2000/5 ASSI does not operate in isolation — it is the motion intelligence at the center of a coordinated control architecture. In a typical high-availability CNC cell, this module interfaces directly with S.C.E. M68-2000 series servo drive amplifiers and M68 I/O expansion modules to manage real-time feedback from encoders and proximity sensors across all five axes. The module’s backplane communication is designed to work seamlessly with S.C.E. operator panels and HMI units, providing operators with live axis status, alarm diagnostics, and program execution monitoring.

For power conditioning and protection, the M68-2000/5 ASSI is typically paired with industrial 24 VDC DIN-rail power supplies rated for continuous duty, along with surge protection devices (SPDs) and EMC line filters installed at the cabinet entry point to suppress conducted interference from variable frequency drives (VFDs) and heavy motor loads on the same bus. In facilities where multiple CNC machines share a common network backbone, industrial Ethernet switches with managed QoS and PROFIBUS or CANopen communication modules are deployed alongside the M68-2000/5 ASSI to maintain deterministic data exchange.

Safety-critical installations additionally incorporate safety relay modules and emergency stop (E-stop) interlock circuits wired in series with the M68-2000/5 ASSI’s enable inputs, ensuring that any axis motion is immediately halted upon detection of a guard breach or overtravel condition. Terminal block modules and marshalling panels within the control cabinet provide organized, labeled wiring termination points that simplify maintenance and reduce the risk of miswiring during spare-part replacement. Together, these components form a layered protection architecture that keeps the M68-2000/5 ASSI — and the entire machine — operating safely and continuously.

Application in Critical Infrastructure

The S.C.E. M68-2000/5 ASSI has established a strong track record in sectors where unplanned downtime carries severe operational and financial consequences. In oil and gas processing facilities, the module controls precision valve-body machining and pipeline component fabrication, where dimensional tolerances are non-negotiable and the machining environment is laden with coolant mist, metallic particulate, and vibration from adjacent heavy equipment. In power generation plants — including thermal, hydroelectric, and nuclear facilities — it governs the machining of turbine blades, rotor shafts, and heat exchanger components, where five-axis contouring accuracy directly impacts plant efficiency and safety margins.

In mining and mineral processing, the M68-2000/5 ASSI drives CNC equipment used to manufacture wear-resistant components such as crusher jaws, conveyor sprockets, and drill bits, operating in environments characterized by extreme dust loading, ground vibration, and wide ambient temperature swings. Metallurgical and steel mill applications leverage the module’s thermal robustness to maintain accurate motion control in foundry-adjacent environments where radiant heat and electromagnetic noise from induction furnaces would compromise less ruggedized controllers. In water treatment and desalination infrastructure, the module supports the precision machining of pump impellers, valve seats, and filtration housings — components that must meet tight geometric tolerances to ensure leak-free, long-service-life performance.

Across all these sectors, the M68-2000/5 ASSI’s value extends beyond its primary function: as a well-documented, widely supported legacy platform, it enables facilities to maintain machining continuity without costly machine replacement, making it a strategically important spare part for any maintenance inventory.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Our technical team will provide a return authorization and expedite the resolution to minimize your downtime.

Q2: How is each M68-2000/5 ASSI unit tested before shipment?
Every unit undergoes a multi-stage inspection protocol prior to dispatch: visual inspection for physical damage, power-on functional verification, axis communication handshake testing, and output signal integrity checks. Units that do not pass all stages are quarantined and not shipped. A test report is available upon request for quality-assurance documentation purposes.

Q3: Is the M68-2000/5 ASSI compatible with my existing S.C.E. M68-2000 system?
Yes. The M68-2000/5 ASSI is a direct form-fit-function replacement within the M68-2000 platform family. It uses the same backplane connector pinout, the same firmware communication protocol, and the same mechanical mounting footprint as other M68-2000 series modules. No hardware modification is required for drop-in replacement. If you are integrating into a mixed-generation system, our technical team can advise on firmware version compatibility before shipment.

Q4: Can TOPNLMS guarantee long-term supply and support for this module?
Yes. TOPNLMS maintains dedicated inventory of S.C.E. M68-2000 series components and actively sources stock through verified supply channels to support customers with long production lifecycles. We understand that industrial facilities cannot afford to redesign control systems every time a component reaches end-of-catalog status. Our procurement team monitors availability and can provide lead-time commitments for volume orders. Contact us at [email protected] or +86 18359293191 to discuss your ongoing supply requirements.
