RTP NEQ8436/32-001 Replacement for RTP 3000 DCS

Product Overview

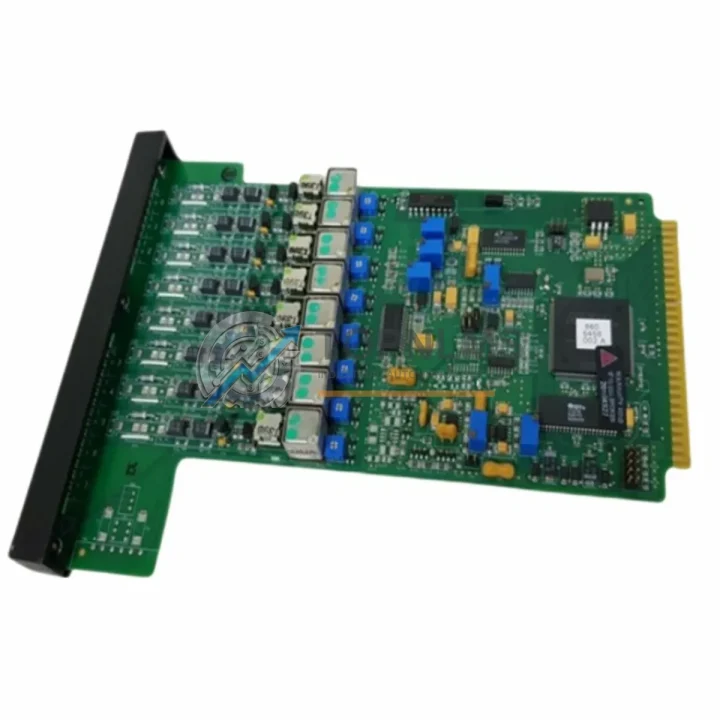

RTP NEQ8436/32-001 Replacement for RTP 3000 DCS: Seamless Transition & Compatibility Upgrade

The RTP NEQ8436/32-001 is a 32-channel isolated thermocouple input module designed for the RTP 3000 Series Distributed Control System (DCS). As RTP Corporation has progressively phased out legacy hardware support for older 3000 Series configurations, many process plants, refineries, and chemical facilities are now facing the critical challenge of sourcing verified replacement units or planning a structured migration path. TOPNLMS maintains ready stock of the NEQ8436/32-001 to support both emergency replacement scenarios and planned system modernization projects.

Whether your facility is running an aging RTP 3000 DCS backbone with original I/O racks, or you are mid-migration toward a hybrid architecture, the NEQ8436/32-001 provides a direct, electrically compatible drop-in solution. Each unit is individually tested prior to shipment and backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RTP 3000 DCS modernization project rarely involves a single module swap. In practice, facilities upgrading or replacing the NEQ8436/32-001 thermocouple input module will typically need to address the broader I/O and communication infrastructure simultaneously. Based on common field migration scenarios, the following components are frequently required alongside this module:

When expanding thermocouple channel density, engineers often pair the NEQ8436/32-001 with additional RTP 3000 Series analog input modules such as the NEQ8432 (RTD/resistance input) or NEQ8420 (4–20 mA analog input module) to consolidate mixed-signal process loops within the same I/O rack. This eliminates the need for separate marshalling cabinets and reduces overall panel footprint.

For facilities that are simultaneously upgrading their DCS communication backbone from legacy serial links to modern Ethernet-based fieldbus, the RTP 3000 Series communication gateway modules — including Modbus TCP and PROFIBUS DP interface cards — are commonly installed in the same rack upgrade cycle. These gateway modules allow the RTP 3000 controller to interface with newer SCADA platforms or third-party HMI systems without requiring a full controller replacement.

Terminal block assemblies and RTP-compatible marshalling panels are another critical consideration. When replacing a 16-channel predecessor with the 32-channel NEQ8436/32-001, field wiring terminations must be re-evaluated. Pre-wired terminal modules designed for the RTP 3000 I/O bus significantly reduce rewiring time and the risk of field wiring errors during cutover. Signal isolators and Zener barrier assemblies for intrinsically safe thermocouple loops in hazardous areas (Zone 1 / Zone 2) should also be verified for compatibility with the new channel density.

Power supply redundancy is a common upgrade trigger in aging DCS installations. The RTP 3000 Series redundant power supply modules (typically 24 VDC rack power) are frequently replaced in the same maintenance window as I/O module upgrades, since power supply degradation is a leading cause of intermittent I/O faults in legacy systems. Replacing the power supply alongside the NEQ8436/32-001 ensures the new module operates within its rated supply voltage tolerance from day one.

For sites migrating from RTP 3000 to a hybrid architecture — retaining the RTP 3000 I/O subsystem while upgrading the controller layer — RTP 3000 Series controller modules such as the NEQ8100 or NEQ8200 series processors are often part of the same procurement. These controllers maintain full backward compatibility with the NEQ8436/32-001 backplane interface, preserving existing I/O wiring and channel configuration databases.

Finally, programming and configuration tools including RTP WorkShop engineering software and the associated RTP programming cables (USB-to-serial or RS-232 interface) are essential for channel address configuration, thermocouple type assignment, and cold junction compensation calibration after module installation. TOPNLMS can advise on software version compatibility for your specific controller firmware revision.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminations when installing the NEQ8436/32-001 as a direct replacement?
A: If you are replacing an identical NEQ8436/32-001 unit, no wiring changes are required. The backplane connector and field terminal assignments are identical. If replacing a 16-channel predecessor module, field wiring must be extended to cover the additional 16 channels, and channel address assignments in the controller database must be updated accordingly.

Q: Is the NEQ8436/32-001 compatible with all RTP 3000 Series rack configurations?
A: Yes. The module uses the standard RTP 3000 single-slot backplane interface and is compatible with all standard RTP 3000 I/O racks. Verify your rack firmware revision supports 32-channel I/O modules if your installation predates the NEQ8436 product generation.

Q: What thermocouple types can be configured per channel?
A: The NEQ8436/32-001 supports J, K, T, E, R, S, B, and N type thermocouples, configurable independently per channel via RTP WorkShop software. This eliminates the need for separate modules for different TC types within the same process loop group.

Q: Can this module be installed while the DCS is running (hot-swap)?
A: Hot-swap capability depends on your controller firmware version and rack configuration. In supported configurations with redundant controllers, the NEQ8436/32-001 can be inserted and removed without a full system shutdown. Consult your RTP 3000 system documentation or contact TOPNLMS for firmware compatibility guidance specific to your installation.

Q: What communication protocol does the NEQ8436/32-001 use?
A: The module communicates via the proprietary RTP 3000 internal I/O bus. It does not require separate Modbus, PROFIBUS, or HART configuration. All channel data is natively accessible through the RTP 3000 controller’s process database without additional protocol conversion.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use RTP WorkShop to perform a channel scan and verify all 32 channels report valid process values. Each channel should be individually verified against a known reference temperature source. TOPNLMS performs a pre-shipment functional test on all NEQ8436/32-001 units and provides a test report upon request.

Q: What physical space does this module require in the control cabinet?
A: The NEQ8436/32-001 occupies a single slot in the RTP 3000 I/O rack. No additional DIN rail space or external signal conditioning enclosures are required. The 32-channel density makes it particularly advantageous for control cabinets with limited rack space, as it replaces two 16-channel modules in a single slot.

Warranty Assurance

Every RTP NEQ8436/32-001 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our warranty program is designed to meet the procurement and risk management requirements of industrial facilities operating critical process control infrastructure.

Pre-Shipment Testing: Each unit undergoes functional verification prior to dispatch, including backplane interface continuity checks, channel input response testing across supported thermocouple types, and power supply rail verification. A test record is available upon request for quality documentation purposes.

Replacement Support: In the event of a warranty claim, TOPNLMS will dispatch a verified replacement unit within 3–5 business days of claim confirmation. We do not require the defective unit to be returned before dispatching the replacement in time-critical process plant scenarios — contact us to discuss your specific situation.

After-Sales Response: Our technical team is available via email and phone to support installation, configuration, and commissioning questions throughout the warranty period. We maintain application knowledge of RTP 3000 DCS architecture and can provide guidance on channel addressing, firmware compatibility, and system integration.

Procurement Assurance: TOPNLMS sources NEQ8436/32-001 units through verified supply channels. All units are inspected for authenticity and physical condition prior to listing. We do not list or ship units with evidence of prior field damage, counterfeit markings, or expired shelf life for electrolytic components.

Shipping: Units are shipped from Xiamen, China via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard. HS Code classification and customs value declaration are handled in accordance with applicable export regulations.
